Product Description
One grapple that works on the front of your skid steer, your tractor loader, and the rear 3-point hitch. The Quick Attach Versa Grab is built for operators who run multiple machines and need a single heavy-duty multi-purpose grapple that moves seamlessly between them without buying separate attachments for each.
With 9,000 lbs of lift capacity, a 3-inch bore hydraulic cylinder, and a jaw that opens to 48 or 60 inches and closes to under 3 inches, the Versa Grab handles trees, boulders, large wood piles, brush, and debris across a massive range of material sizes. Trees and debris can be lifted, repositioned, and loaded precisely without damaging the surrounding landscape — from the seat of whatever machine you are running that day.
Optional hydraulic rotation, toplink cylinder, 12,000 lb winch, pistol grip controls, and factory installed couplers let you build the exact configuration your operation demands.
Ideal For: Farmers, land clearing contractors, loggers, landscapers, and operators who run both skid steers and tractors and need a single versatile multi-purpose grapple for moving trees, boulders, logs, and debris across multiple machines.
Key Features
▪ Works on Skid Steers & Tractors — Universal skid steer mount plus CAT 1 and CAT 2 three-point hitch for front and rear mounting versatility
▪ 9,000 LB Lift Capacity — Handles trees, boulders, large logs, and heavy debris with confidence
▪ 3-Inch Bore Hydraulic Cylinder — Delivers serious gripping force for secure handling of heavy and irregular loads
▪ 48 or 60-Inch Maximum Jaw Opening — Choose the size that matches your typical material dimensions
▪ Closes to Under 3 Inches — Grips small objects as precisely as large ones

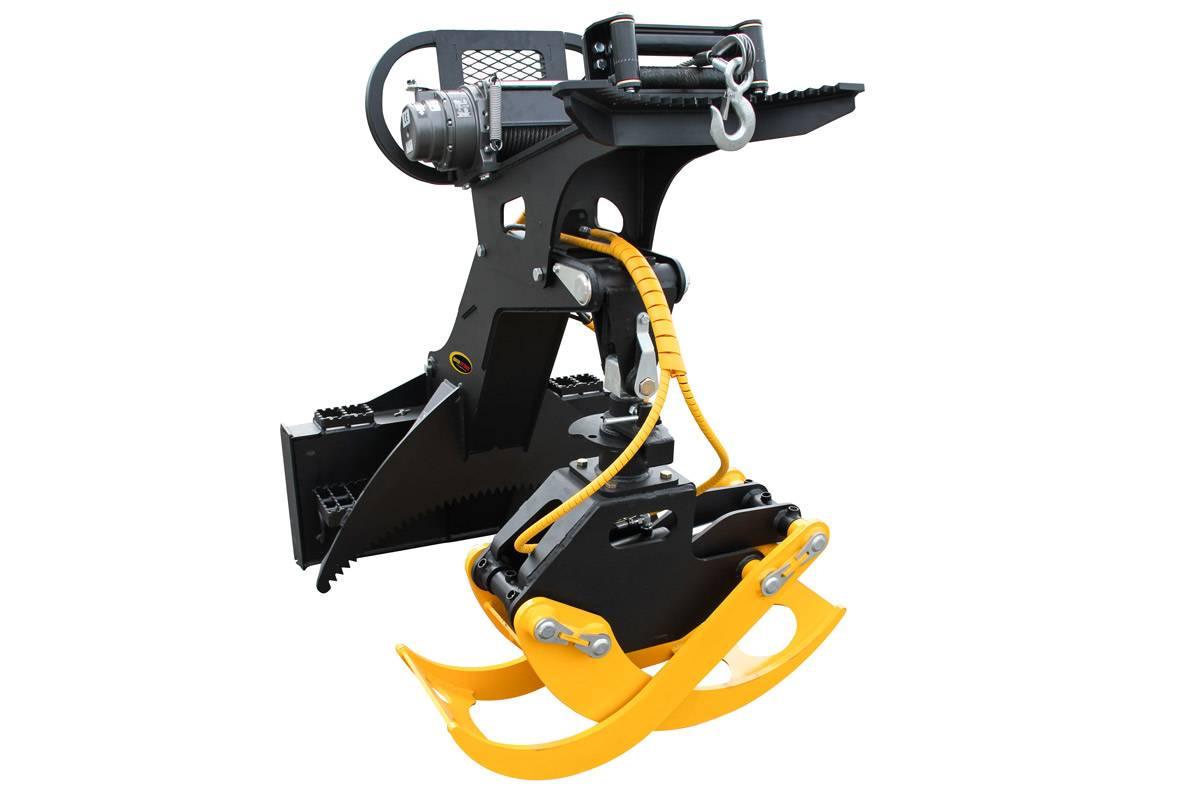

▪ Optional 12,000 LB Winch — Add serious winching capability for stumps, logs, and heavy debris

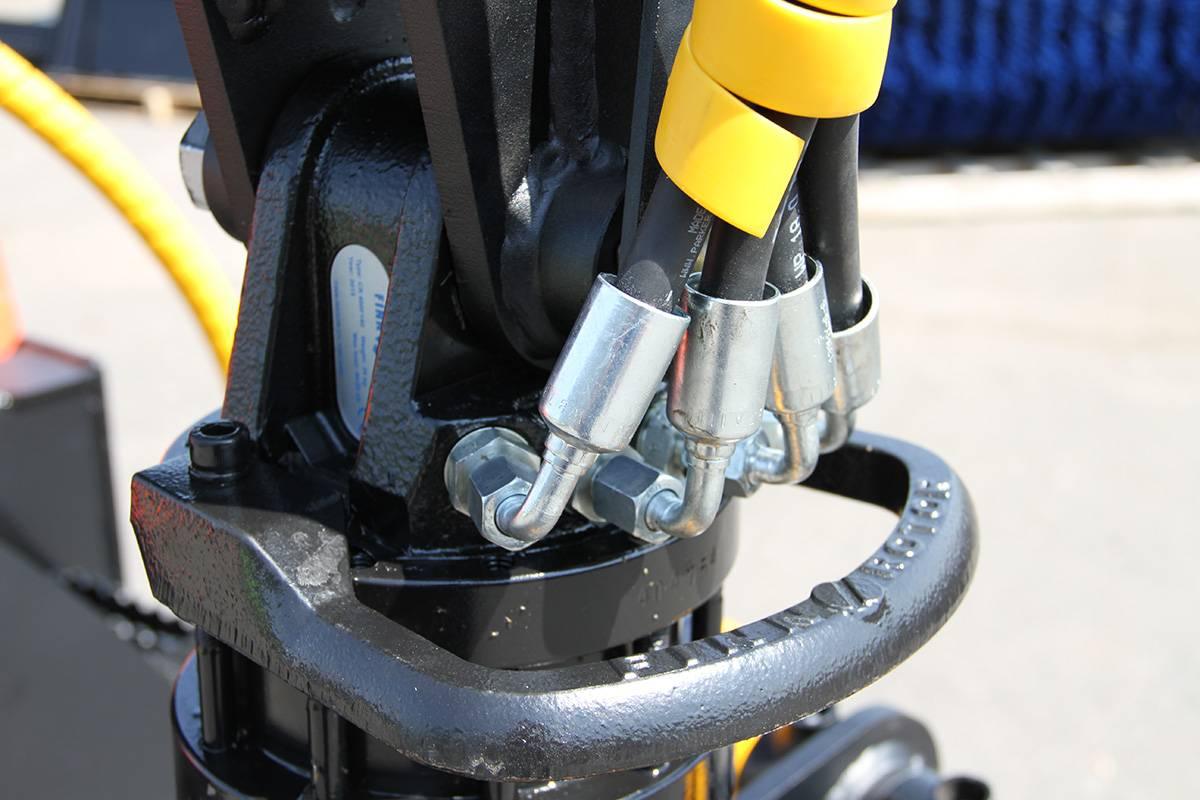

▪ Optional Hydraulic Rotation — 360-degree load positioning without repositioning the machine
▪ Two Steel Steps with Traction — Safe operator access in wet or muddy conditions
▪ Optional Factory Installed Couplers — Faster, cleaner hydraulic hookup right out of the box
Technical Specifications
| Specification |
48 in. (901315) |
60 in. (901316) |
| SKU |
901315 |
901316 |
| Max Jaw Opening |
48 in. |
60 in. |
| Min Jaw Closing |
3 in. |
3 in. |
| Lift Capacity |
9,000 lbs. |
9,000 lbs. |
| Grapple Cylinder Bore |
3 in. |
3 in. |
| Hydraulic Flow |
10–25 GPM |
10–25 GPM |
| Hydraulic Pressure |
2,000–3,000 PSI |
2,000–3,000 PSI |
| Mounting |
Universal, CAT 1 & CAT 2 3-Point |
Universal, CAT 1 & CAT 2 3-Point |
| Operating Weight |
1,129 lbs. |
1,183 lbs. |
| Shipping Weight |
1,179 lbs. |
1,213 lbs. |
| Winch Capacity (Optional) |
12,000 lbs. |
12,000 lbs. |
| Winch Cable Length |
100 ft. / 85 ft. usable |
100 ft. / 85 ft. usable |
| Options |
Hydraulic Rotation, Toplink Cylinder, Winch, Pistol Grip Controls, Wire Harness, Couplers |
Hydraulic Rotation, Toplink Cylinder, Winch, Pistol Grip Controls, Wire Harness, Couplers |
What's Included
▪ Quick Attach Versa Grab in selected jaw size ▪ Skid steer mounting plate ▪ CAT 1 and CAT 2 3-point hitch adapters ▪ Operator Manual
One grapple for every machine you run. The Quick Attach Versa Grab handles trees, boulders, logs, and debris with 9,000 lbs of capacity — add it to your equipment today.
