Product Description

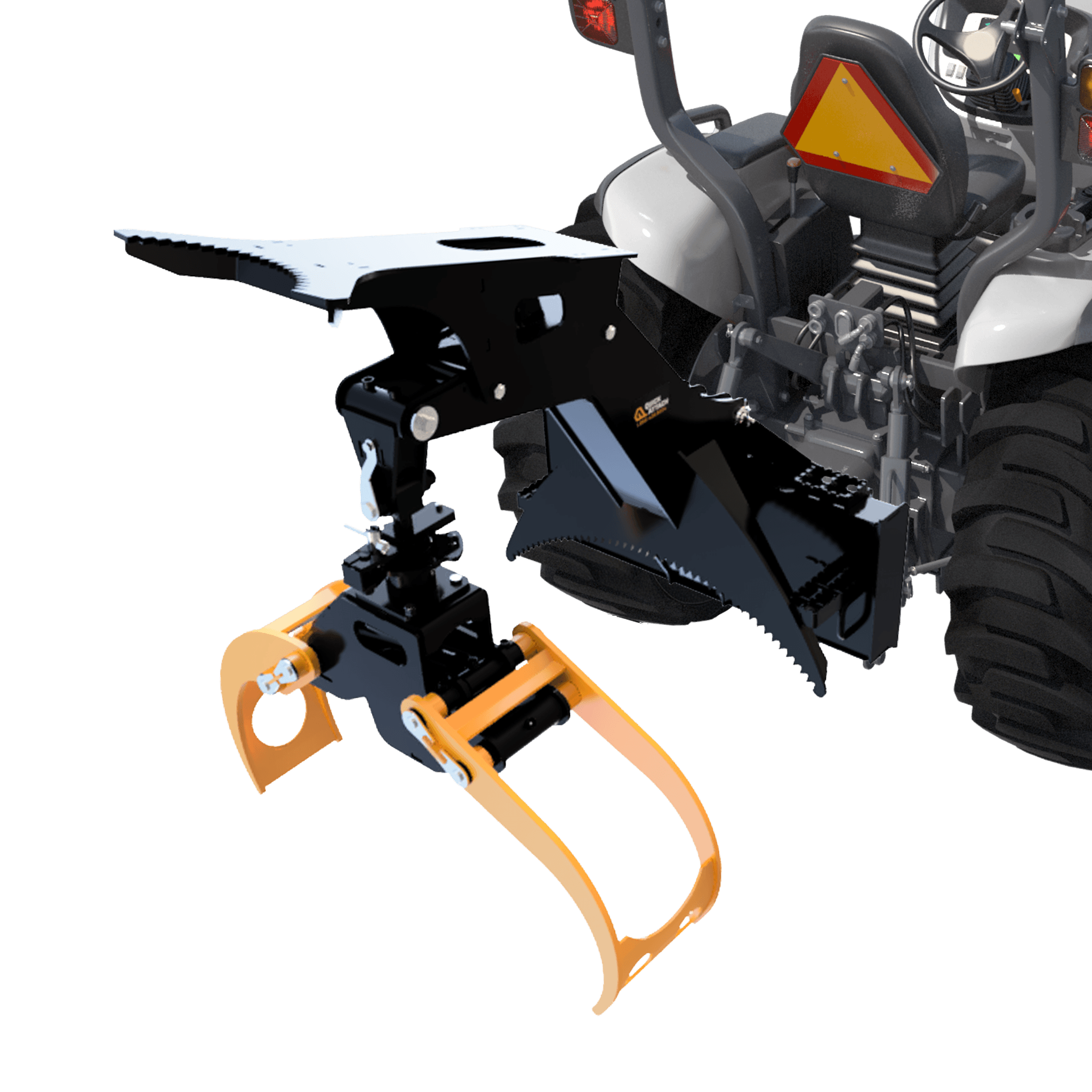

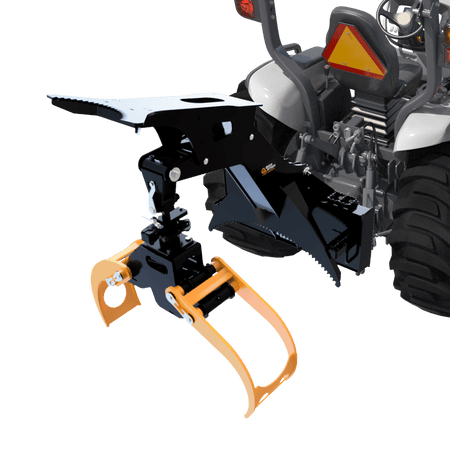

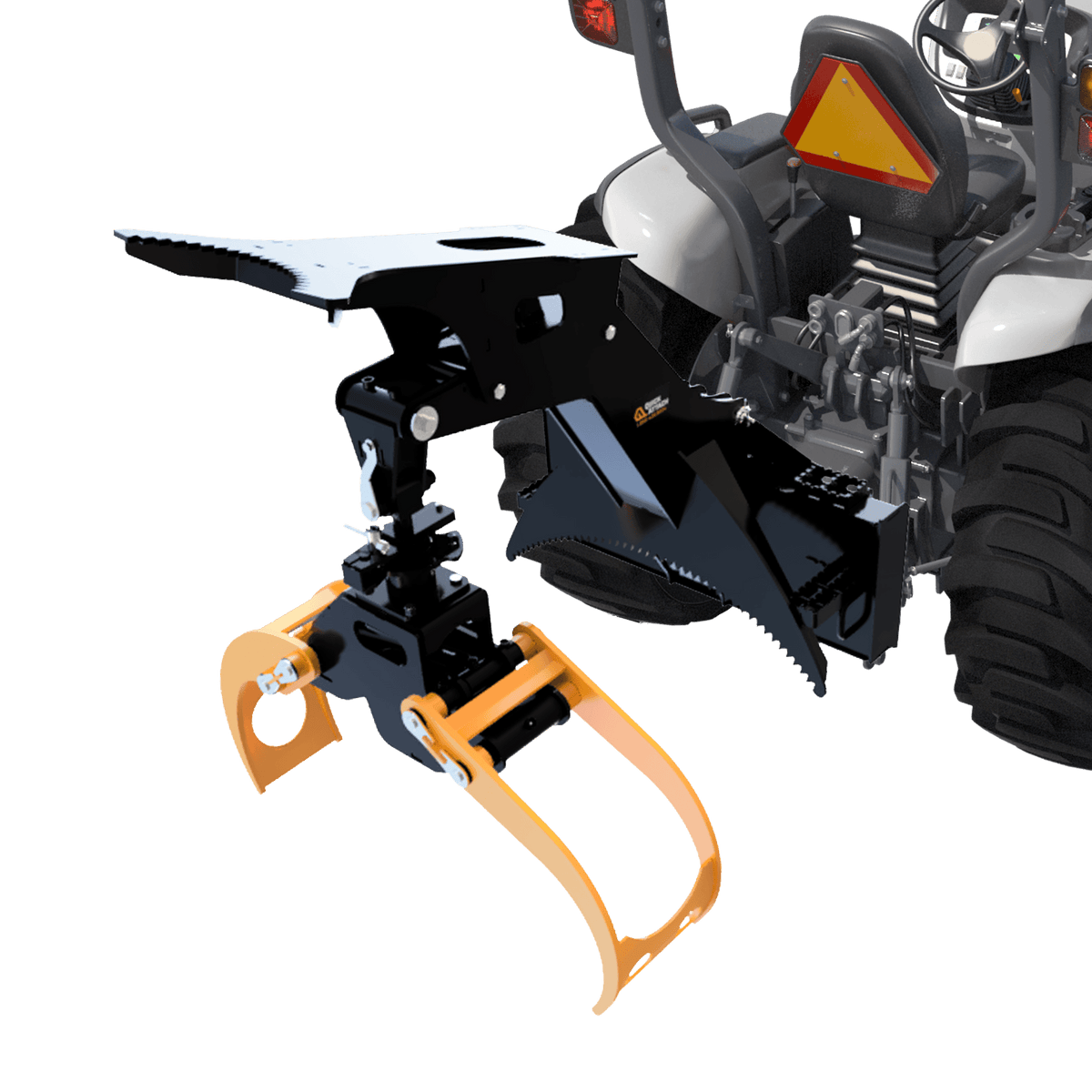

One attachment that works on the front of your skid steer, on your tractor loader, and on the rear 3-point hitch. The Quick Attach Versa Grab is a multi-purpose grapple built for operators who need maximum versatility without buying separate attachments for every machine they run.

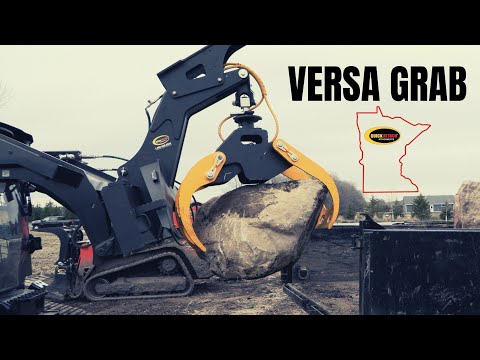

With 9,000 lbs of lift capacity, a 3-inch bore hydraulic cylinder, and a jaw that opens to 48 or 60 inches and closes to under 3 inches, the Versa Grab handles trees, boulders, large wood piles, brush, and debris across a massive range of material sizes — from oversized logs down to small objects — without swapping attachments. Trees and debris can be lifted, repositioned, or loaded without damaging the surrounding landscape — precision material handling from the seat of your machine.
Compatible with universal skid steer quick attach, CAT 1, and CAT 2 three-point hitch systems right out of the box. Optional hydraulic rotation, toplink cylinder, winch with 12,000 lb capacity, pistol grip controls, and factory installed couplers let you configure the Versa Grab exactly the way your operation demands.
Ideal For: Farmers, land clearing contractors, loggers, landscapers, and operators who run both skid steers and tractors and need a single heavy-duty multi-purpose grapple that handles trees, boulders, logs, and debris across multiple machines.
Key Features
▪ Works on Skid Steers & Tractors — Mounts to universal skid steer quick attach, CAT 1, and CAT 2 three-point hitch for maximum machine versatility
▪ 9,000 LB Lift Capacity — Handles trees, boulders, large logs, and heavy debris without hesitation
▪ 3-Inch Bore Hydraulic Cylinder — Delivers strong gripping force for secure handling of heavy and awkward loads
▪ 48 or 60-Inch Maximum Jaw Opening — Choose the jaw size that matches your typical load dimensions
▪ Closes to Under 3 Inches — Grips small objects as precisely as large ones — versatile across the full range of material sizes

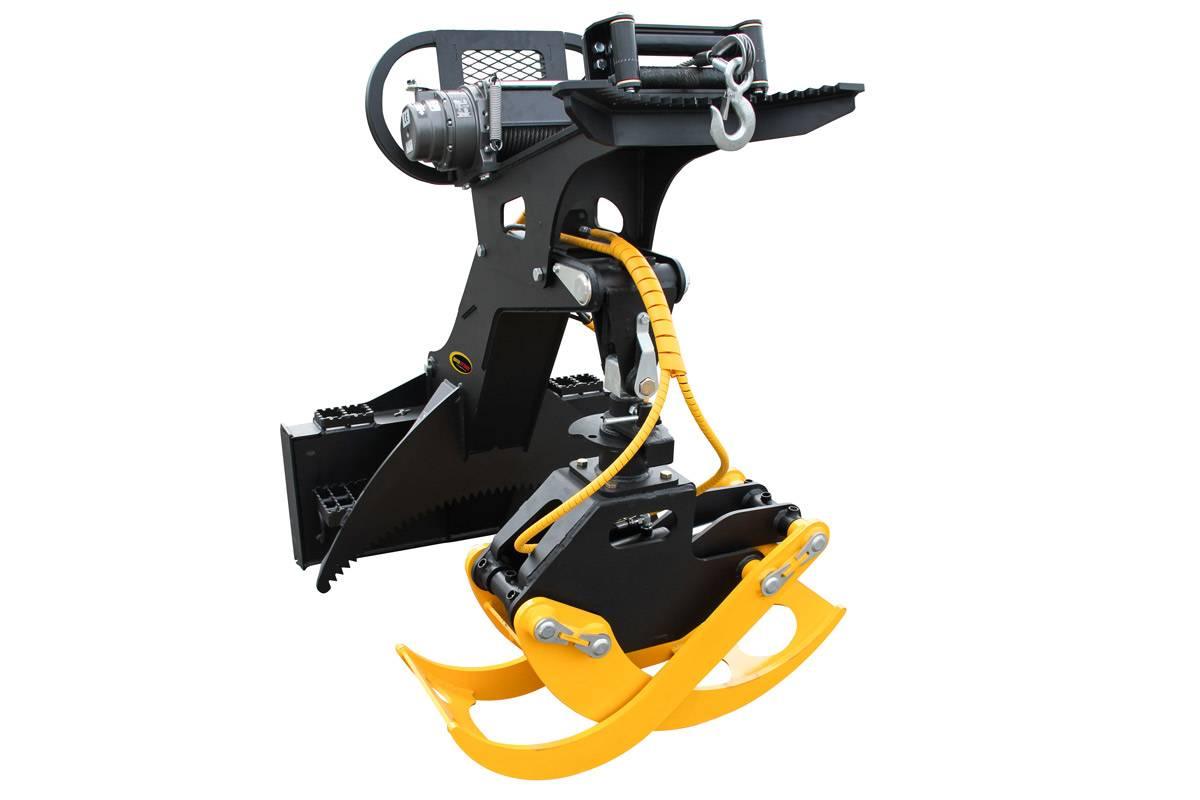

▪ Optional 12,000 LB Winch — Add serious winching capability for pulling stumps, logs, and heavy debris
▪ Optional Hydraulic Rotation — 360-degree positioning without repositioning the machine
▪ Two Steel Steps with Traction — Safe operator access in wet or muddy conditions
▪ Optional Factory Installed Couplers — Faster, cleaner hydraulic hookup right out of the box
Technical Specifications
| Specification |
48 in. (901315) |
60 in. (901316) |
| SKU |
901315 |
901316 |
| Max Jaw Opening |
48 in. |
60 in. |
| Min Jaw Closing |
3 in. |
3 in. |
| Lift Capacity |
9,000 lbs. |
9,000 lbs. |
| Grapple Cylinder Bore |
3 in. |
3 in. |
| Hydraulic Flow |
10–25 GPM |
10–25 GPM |
| Hydraulic Pressure |
2,000–3,000 PSI |
2,000–3,000 PSI |
| Mounting |
Universal, CAT 1 & CAT 2 3-Point |
Universal, CAT 1 & CAT 2 3-Point |
| Operating Weight |
1,129 lbs. |
1,183 lbs. |
| Shipping Weight |
1,179 lbs. |
1,213 lbs. |
| Winch Capacity (Optional) |
12,000 lbs. |
12,000 lbs. |
| Winch Cable Length |
100 ft. / 85 ft. usable |
100 ft. / 85 ft. usable |
| Options |
Hydraulic Rotation, Toplink Cylinder, Winch, Pistol Grip Controls, Wire Harness, Couplers |
Hydraulic Rotation, Toplink Cylinder, Winch, Pistol Grip Controls, Wire Harness, Couplers |
What's Included
▪ Quick Attach Versa Grab in selected jaw size ▪ Skid steer mounting plate ▪ CAT 1 and CAT 2 3-point hitch adapters ▪ Operator Manual
One grapple that works on every machine you run. The Quick Attach Versa Grab handles trees, boulders, logs, and debris with 9,000 lbs of capacity — add it to your equipment today.
