Product Description

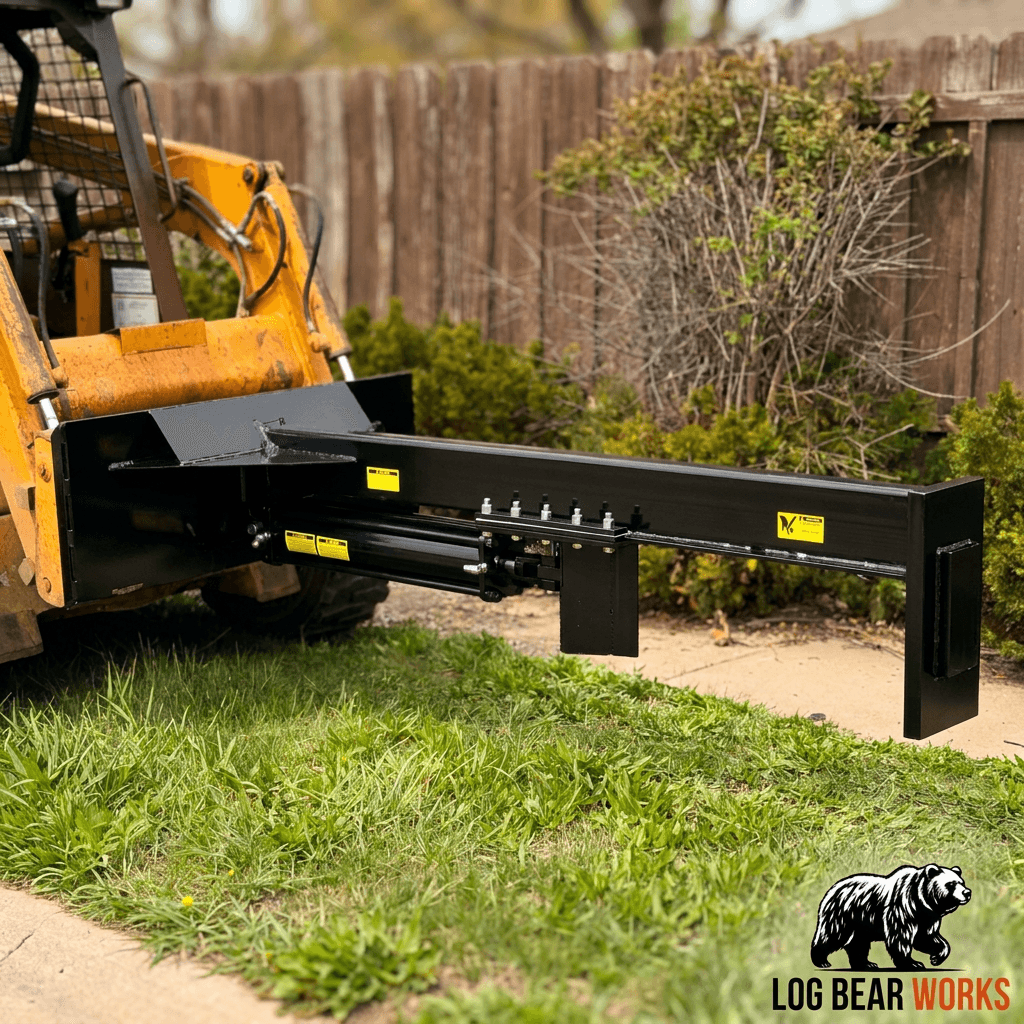

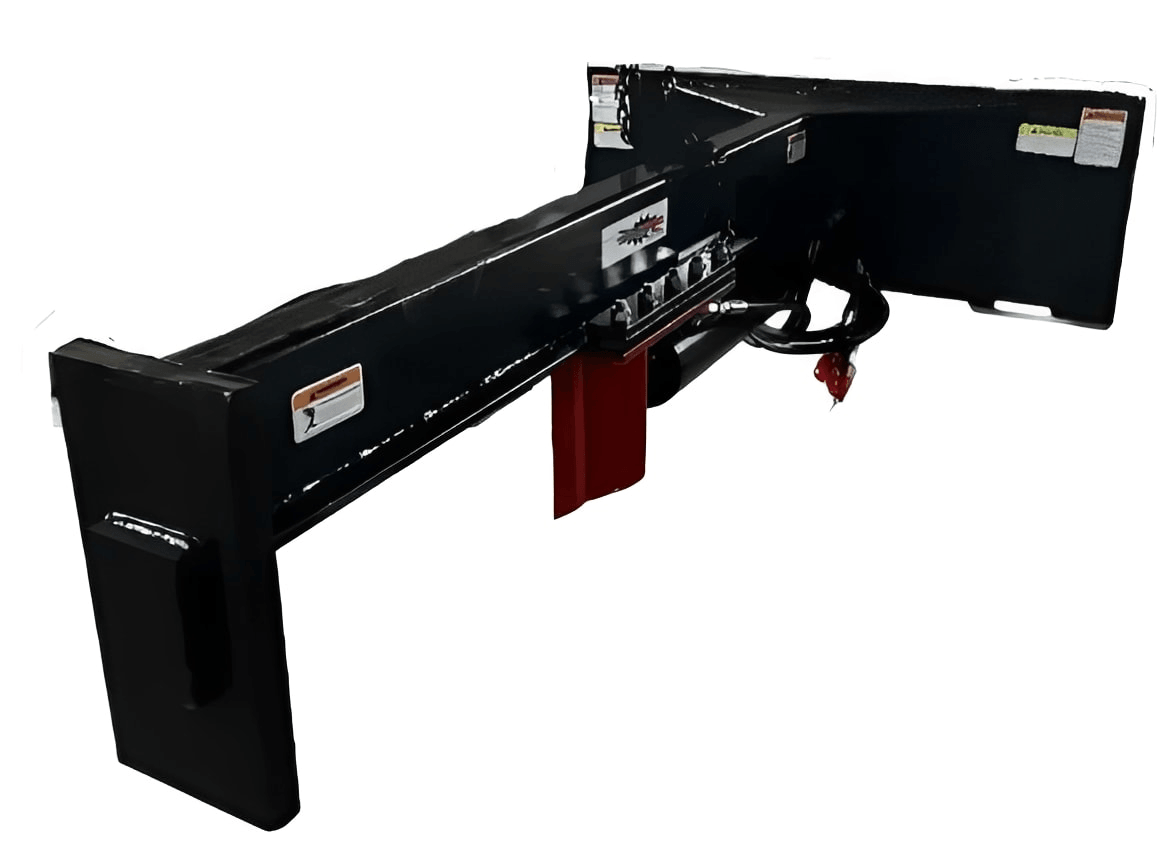

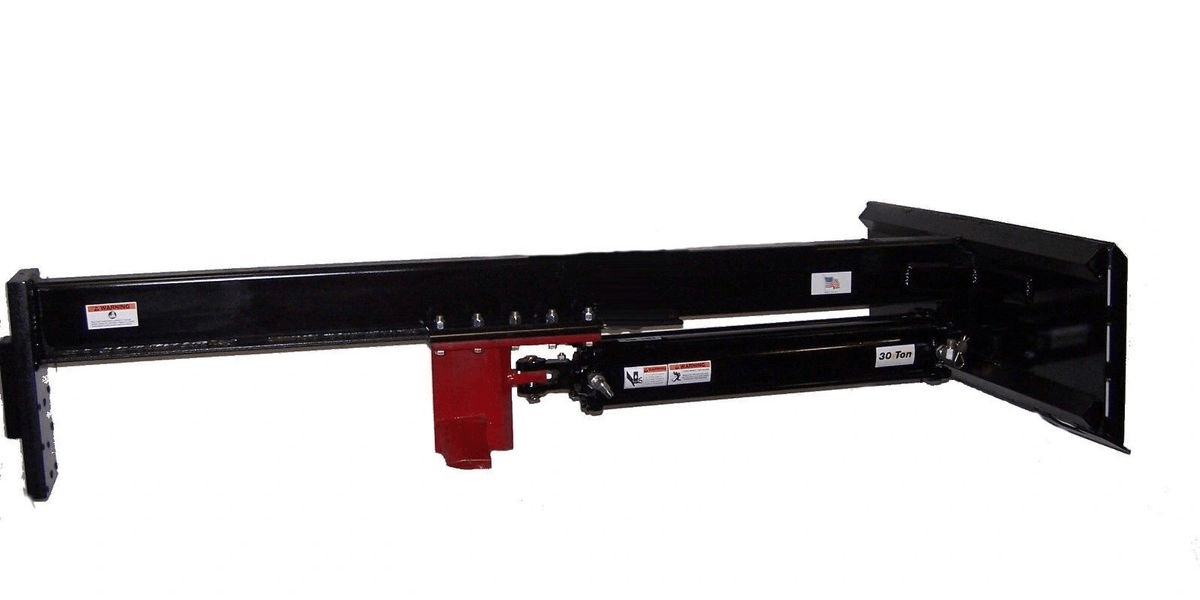

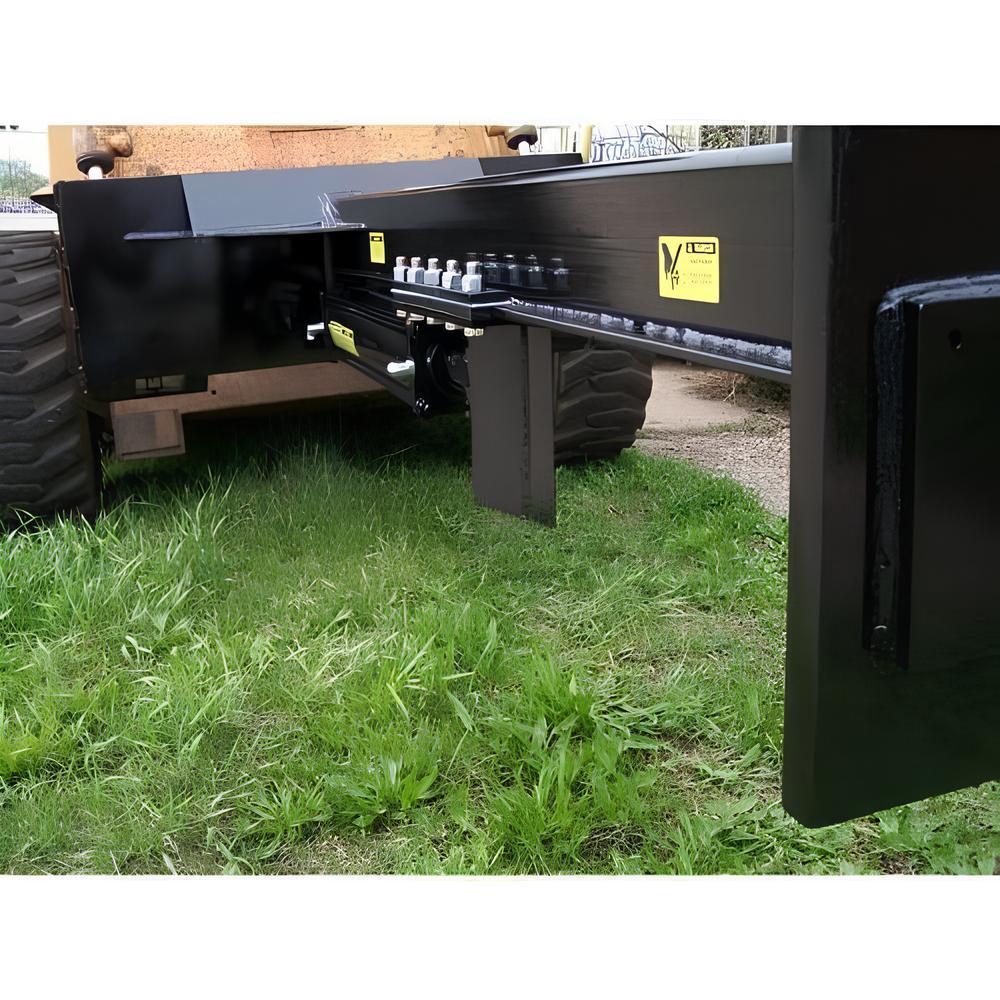

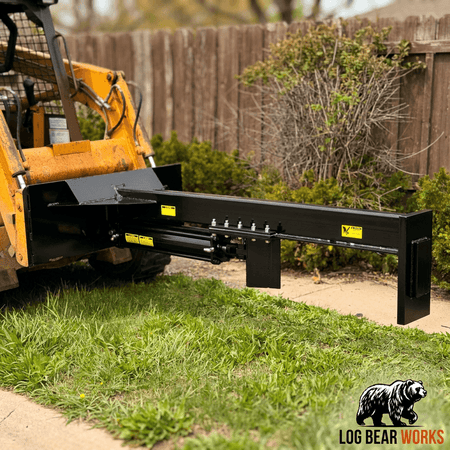

Split logs from your cab without breaking a sweat. The Ram Splitters SSUD30 Sliding Wedge is a 30-ton upside down skid steer wood splitter that turns your machine into a high-volume firewood processing tool — no manual log handling, no leaving the seat, no back strain.
Drive up to the log, lower the splitter over it, and push down. The 10-inch hardened steel sliding wedge mounts on the push plate and drives into the log as the ram extends — clean, powerful splits with 30 tons of hydraulic force on every stroke through logs up to 25 inches long. Quick disconnect couplers make hookup and removal fast so you spend less time connecting and more time working.
Choose your sliding wedge configuration. The Single Sliding Wedge is the standard setup — perfect for everyday firewood processing with clean single-pass splits. Upgrade to the Sliding 4-Way Wedge to split logs into 4 pieces per stroke and cut your processing time dramatically on high-volume days. Both wedges are push-plate mounted and built for daily heavy use. The universal mounting plate fits most skid steer quick attach systems right out of the box.
For factory-installed 4-way or 6-way attached wedge configurations (mounted on the beam instead of the push plate), see our SSUD30 Attached Wedge listing.
Ideal For: Firewood suppliers, farmers, ranchers, loggers, and land clearing contractors who process standard length logs and need a powerful, reliable upside down skid steer wood splitter for high volume cab operation.
Key Features
▪ 30-Ton Ram Force — Powers through logs up to 25 inches long and handles large diameter hardwood without hesitation

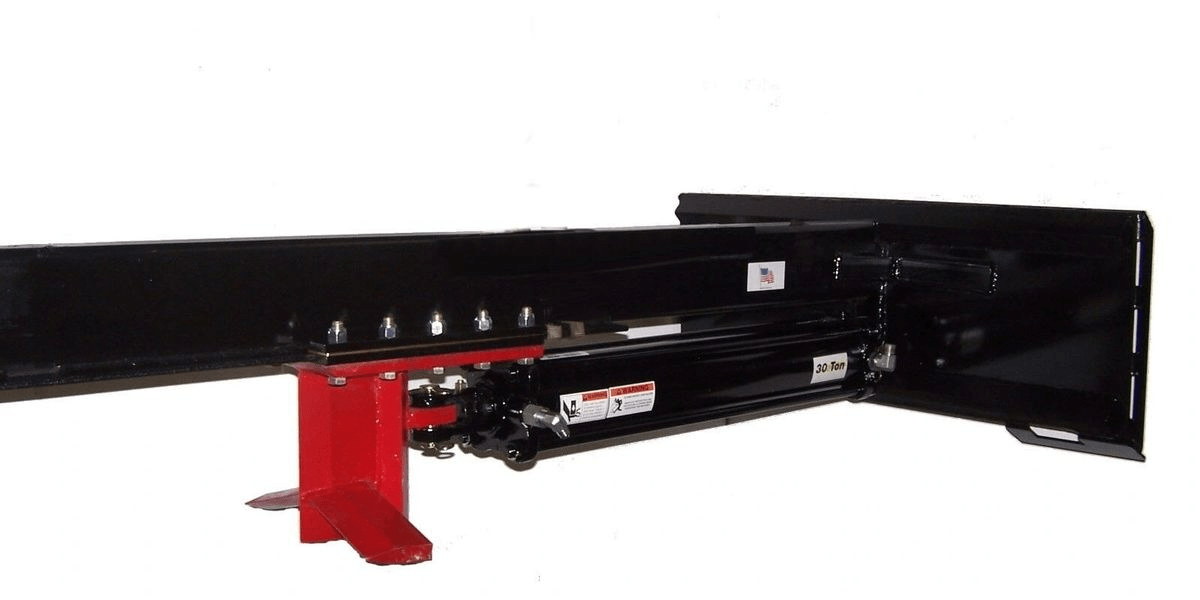

▪ Sliding Wedge — Drives Into the Log — Push-plate mounted hardened steel wedge travels with the ram for clean, consistent splits on every stroke

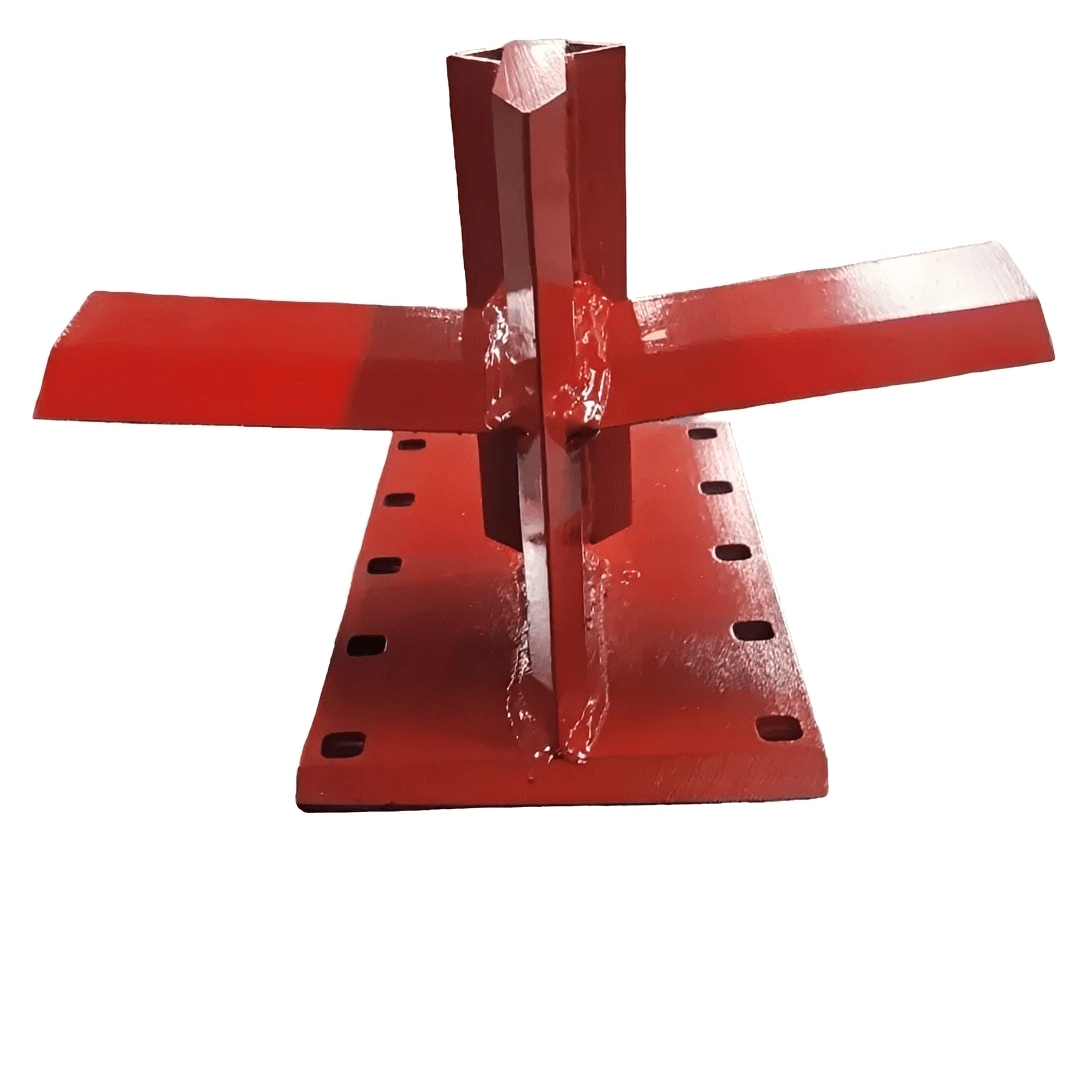

▪ Single or Sliding 4-Way Options — Start with the single sliding wedge or upgrade to sliding 4-way for 4 pieces per stroke
▪ Upside Down Cab Operation — Split logs from your skid steer cab — no manual log handling, no leaving the seat, no back strain
▪ Universal Skid Steer Quick Attach — Fits most skid steer models right out of the box with no adapters needed
▪ Quick Disconnect Couplers Included — Fast, easy hookup and removal so you spend less time connecting and more time splitting
▪ Heavy-Duty Tube Steel Construction — Built to handle the most demanding daily splitting operations without wearing down
▪ 10-Inch Hardened Steel Wedge — Consistent, precise splits on every stroke across a wide range of log sizes
▪ Cycle Time Dependent on Skid Steer — The faster your machine's hydraulic flow, the faster your cycle — no engine limitations holding you back
Technical Specifications
| Specification |
Detail |
| Model |
SSUD30 |
| Splitting Force |
30 Ton |
| Stroke |
24 in. |
| Cycle Time |
Reliant on Skid Steer |
| Max Log Length |
25 in. |
| Wedge |
Single Sliding Wedge (Standard) or Sliding 4-Way Wedge (Upgrade) |
| Wedge Type |
Hardened Steel |
| Wedge Height |
10 in. |
| Beam Type |
Tube Steel |
| Mounting Plate |
Universal Skid Steer |
| Cylinder |
Welded 5 x 24 in. with 2 in. Rod |
| Hoses |
Wire Hydraulic |
| Couplers |
Quick Disconnect Included |
| Product Weight |
525 lbs. |
| Dimensions (L x W x H) |
72 x 48 x 20 in. |
What's Included
▪ Ram Splitters SSUD30 Skid Steer Upside Down Log Splitter ▪ Single Sliding Wedge or Sliding 4-Way Wedge (per selection) ▪ Quick disconnect couplers ▪ Wire hydraulic hoses ▪ Operator Manual
Ready to split from your cab and stop wrestling logs by hand? The Ram Splitters SSUD30 Sliding Wedge delivers 30-ton force, push-plate mounted splitting power, and reliable daily performance — backed by a free 1-year parts and labour warranty. Add it to your equipment today.
