Product Description
Split longer logs into 4 or 6 pieces per stroke without breaking a sweat. The Ram Splitters SSUD30-32 Attached Wedge is a 30-ton upside down skid steer wood splitter with a 32-inch opening — built for operators who regularly process logs up to 31 inches long and want maximum splits per stroke.

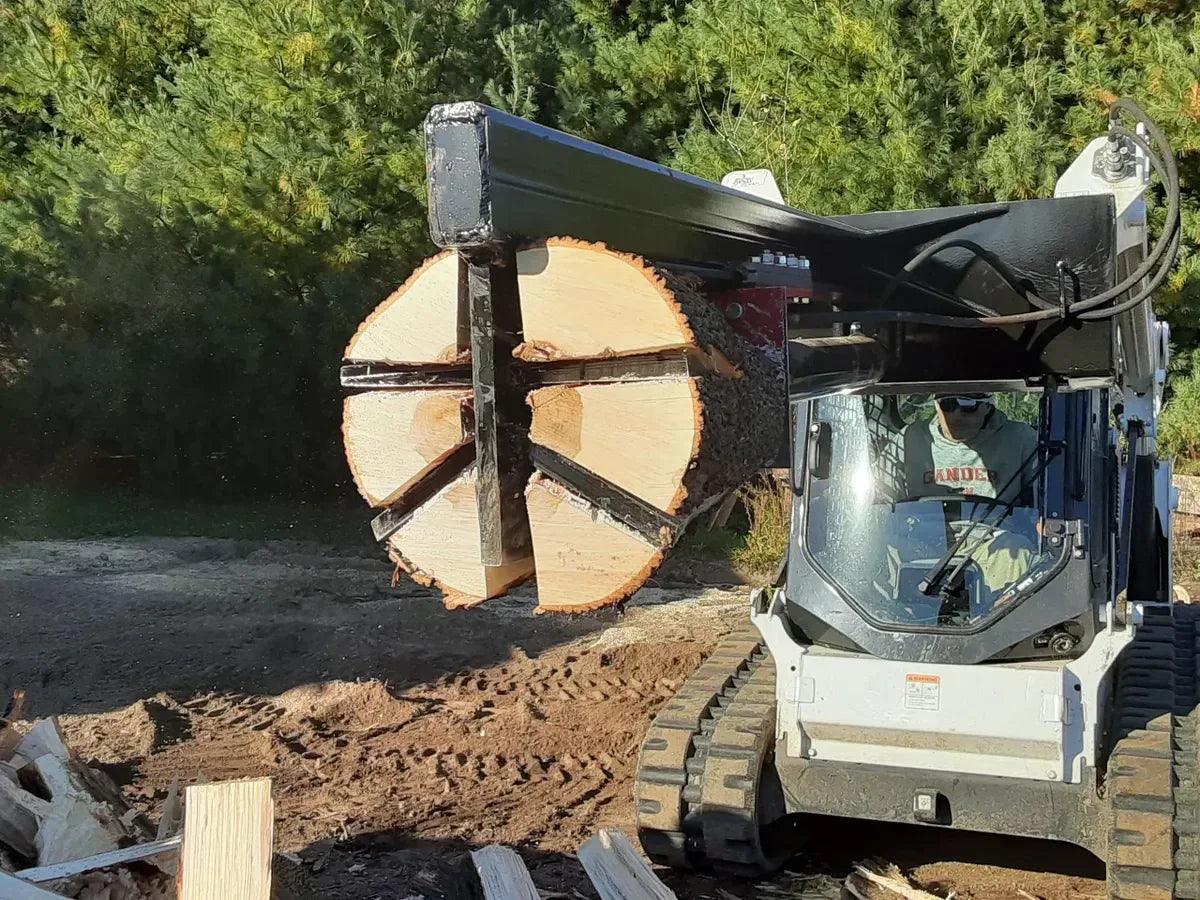

Drive up to the log, lower the splitter over it, and push down. The 10-inch hardened steel attached wedge splits through logs up to 31 inches long with 30 tons of hydraulic force behind every stroke. Quick disconnect couplers make hookup and removal fast so you spend less time connecting and more time working.

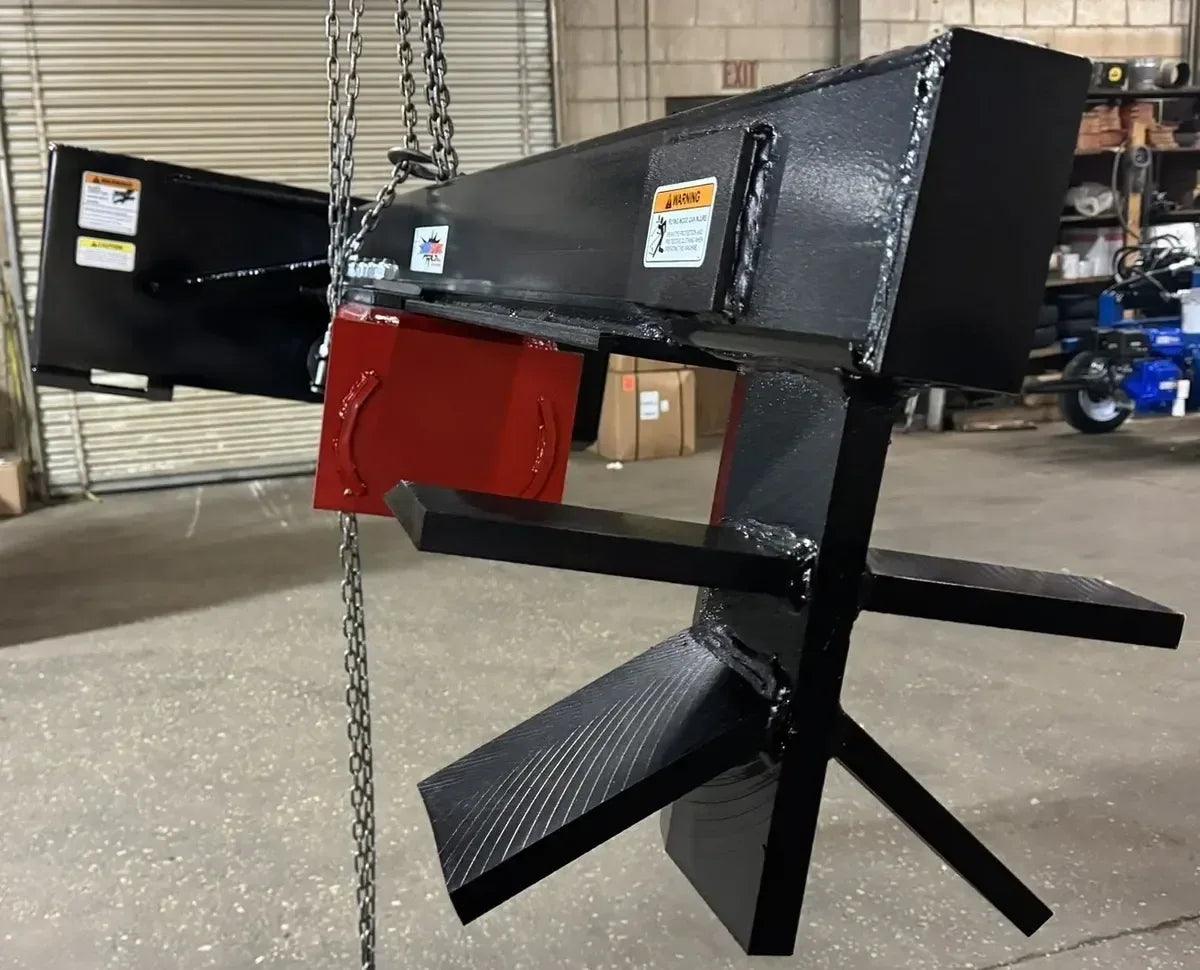

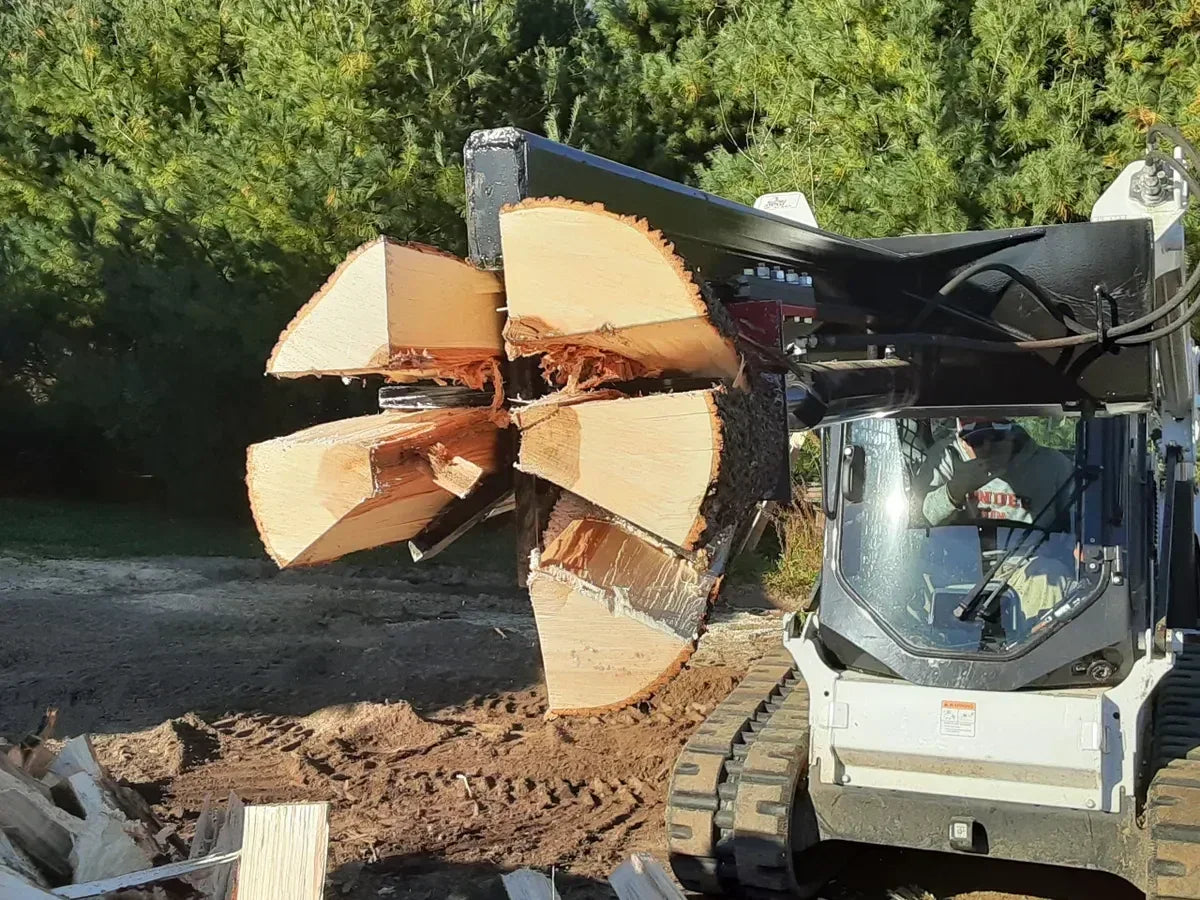

Choose your attached wedge configuration. The Attached 4-Way Wedge splits logs into 4 pieces per stroke — the production sweet spot for firewood suppliers who balance throughput with flexibility. The Attached 6-Way Wedge splits logs into 6 pieces per stroke for maximum output on high-volume days with consistent log sizes. Both wedges are factory mounted on the beam side and built to withstand the toughest commercial use.
For the single sliding wedge or sliding 4-way wedge configurations, see our SSUD30-32 Sliding Wedge listing.
Ideal For: Commercial firewood producers, large-scale firewood suppliers, land clearing contractors, and high-volume operators who process longer consistent log sizes and need maximum splits per stroke from their skid steer.
Key Features
▪ 30-Ton Ram Force — Powers through logs up to 31 inches long and 40 inches in diameter
▪ 32-Inch Opening, 30-Inch Stroke — Built for longer logs that the SSUD30 can't handle — process bigger rounds in a single stroke
▪ Factory-Installed Attached 4-Way or 6-Way Wedge — Beam-mounted hardened steel wedge splits logs into 4 or 6 pieces per stroke for maximum production
▪ Upside Down Cab Operation — Split logs from your skid steer cab — no manual log handling, no leaving the seat, no back strain
▪ Universal Skid Steer Quick Attach — Fits most skid steer models right out of the box with no adapters needed
▪ Quick Disconnect Couplers Included — Fast, easy hookup and removal so you spend less time connecting and more time splitting
▪ Heavy-Duty Tube Steel Construction — Built to handle the most demanding daily splitting operations without wearing down
▪ 10-Inch Hardened Steel Wedge — Consistent, precise splits on every stroke across a wide range of log sizes
▪ Cycle Time Dependent on Skid Steer — The faster your machine's hydraulic flow, the faster your cycle — no engine limitations holding you back

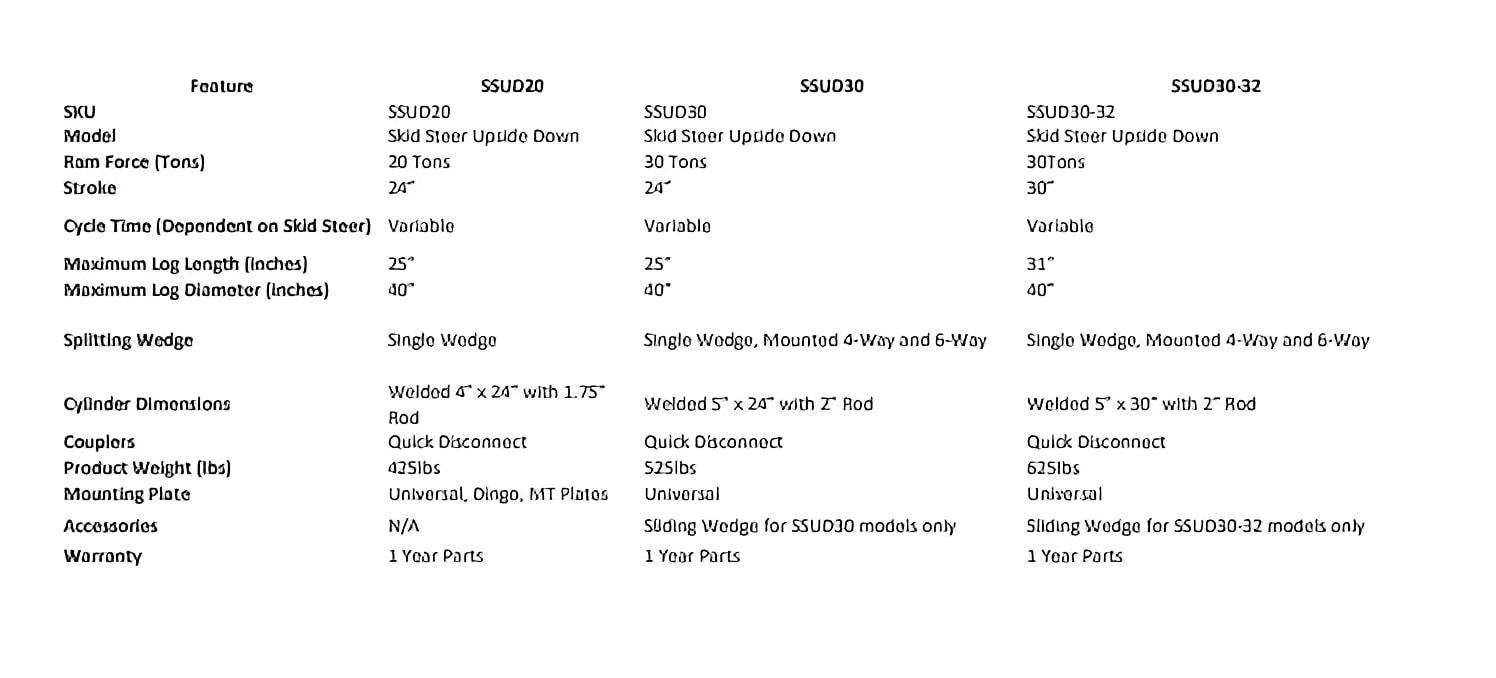

Technical Specifications
| Specification |
Detail |
| Model |
SSUD30-32-4 (4-Way) / SSUD30-32-6 (6-Way) |
| Splitting Force |
30 Ton |
| Stroke |
30 in. |
| Cycle Time |
Reliant on Skid Steer |
| Max Log Length |
31 in. |
| Max Log Diameter |
40 in. |
| Wedge |
4-Way or 6-Way Attached (Factory Installed on Beam) |
| Wedge Type |
Hardened Steel |
| Wedge Height |
10 in. |
| Beam Type |
Tube Steel |
| Mounting Plate |
Universal Skid Steer |
| Cylinder |
Welded 5 x 30 in. with 2 in. Rod |
| Hoses |
Wire Hydraulic |
| Couplers |
Quick Disconnect Included |
| Product Weight |
625 lbs. |
| Dimensions (L x W x H) |
92 x 48 x 20 in. |
What's Included
▪ Ram Splitters SSUD30-32 Skid Steer Upside Down Log Splitter ▪ 4-Way or 6-Way Attached Wedge (factory installed per selection) ▪ Quick disconnect couplers ▪ Wire hydraulic hoses ▪ Operator Manual
Ready to maximize firewood production per stroke on longer logs? The Ram Splitters SSUD30-32 Attached Wedge delivers 30-ton force, 32-inch capacity, factory-installed 4-way or 6-way splitting power, and reliable daily commercial performance — backed by a free 1-year parts and labour warranty. Add it to your equipment today.
