Product Description

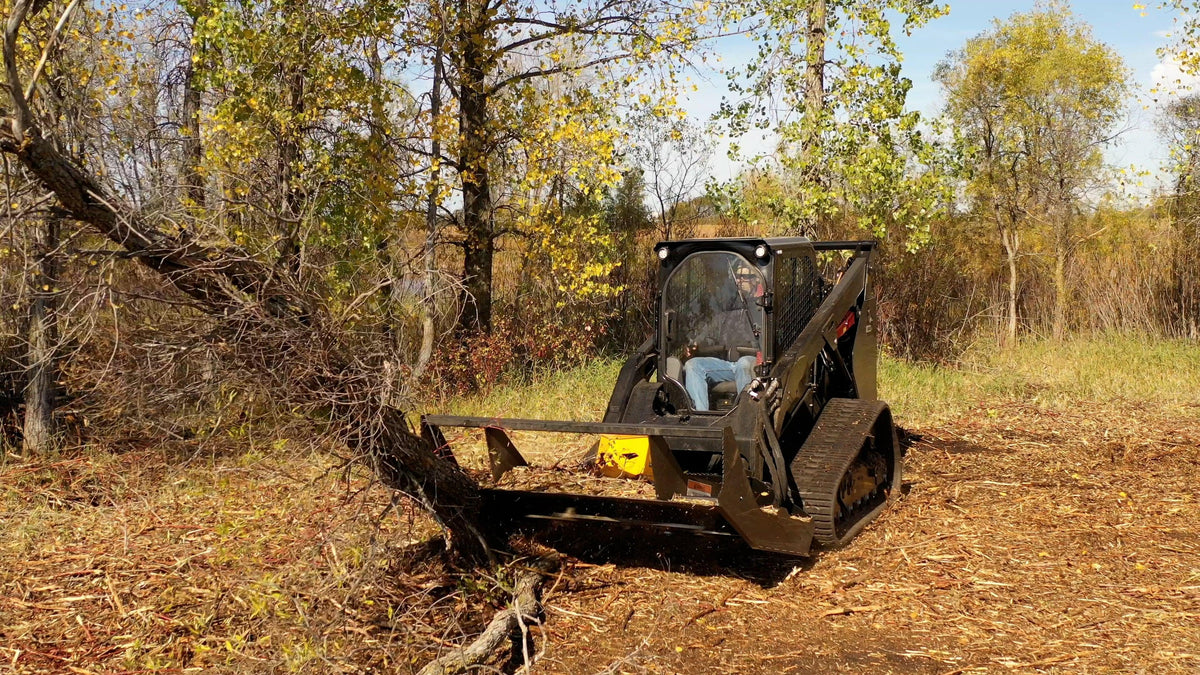

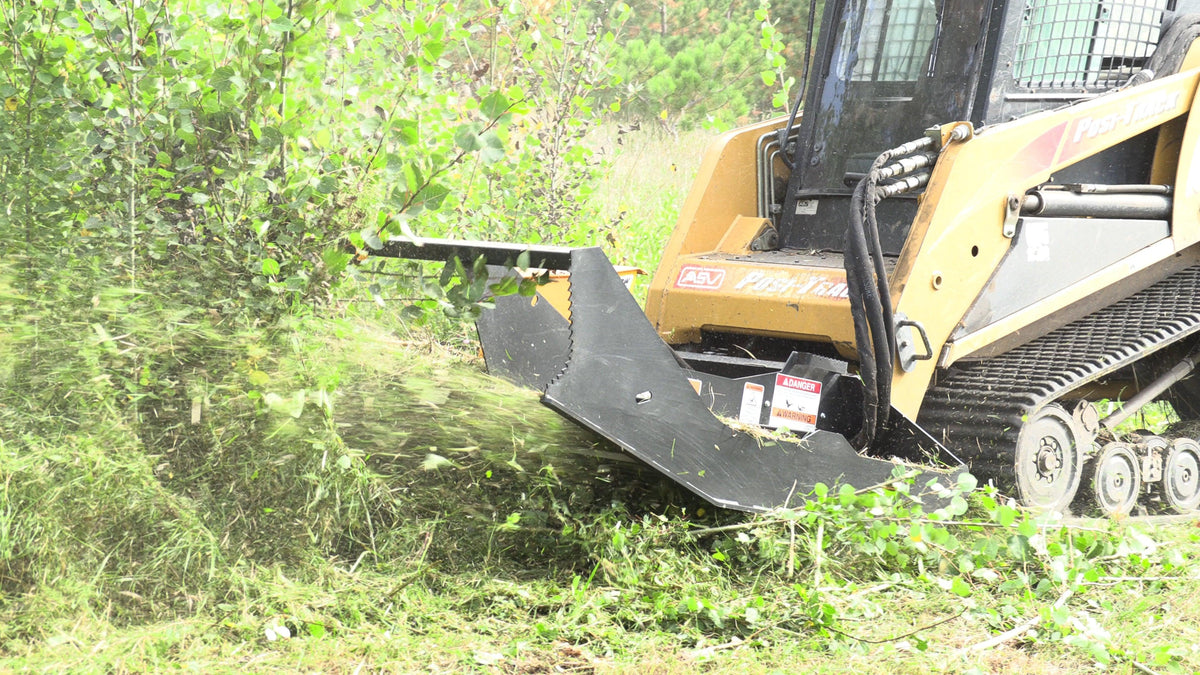

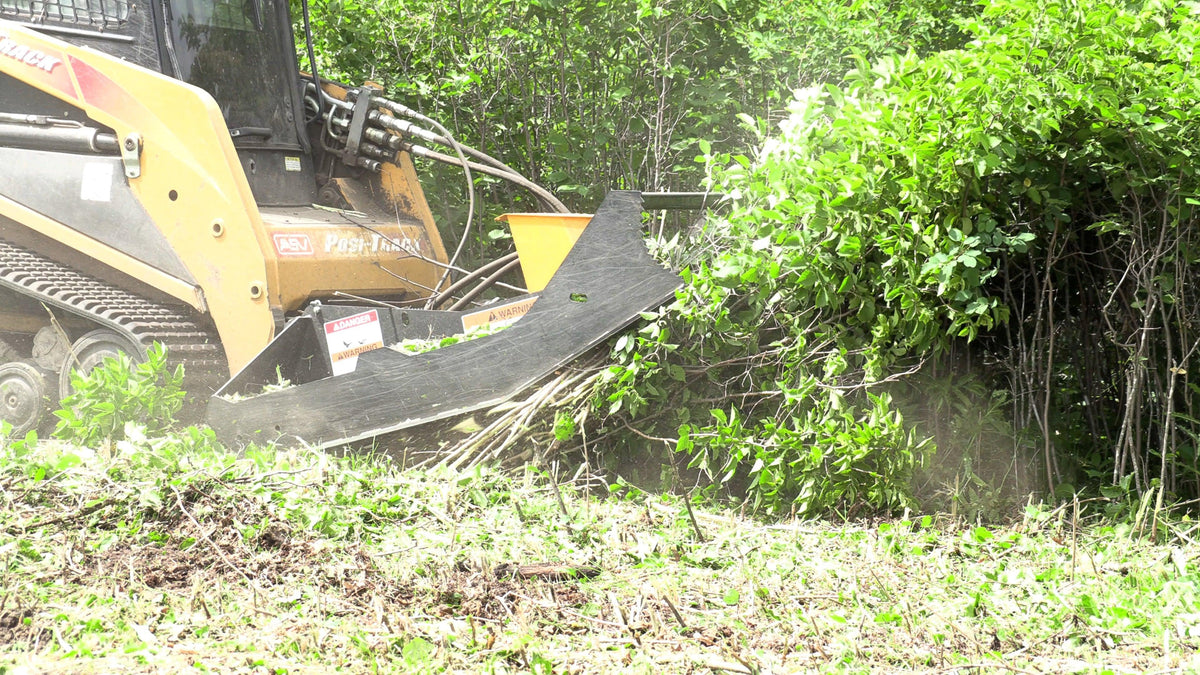

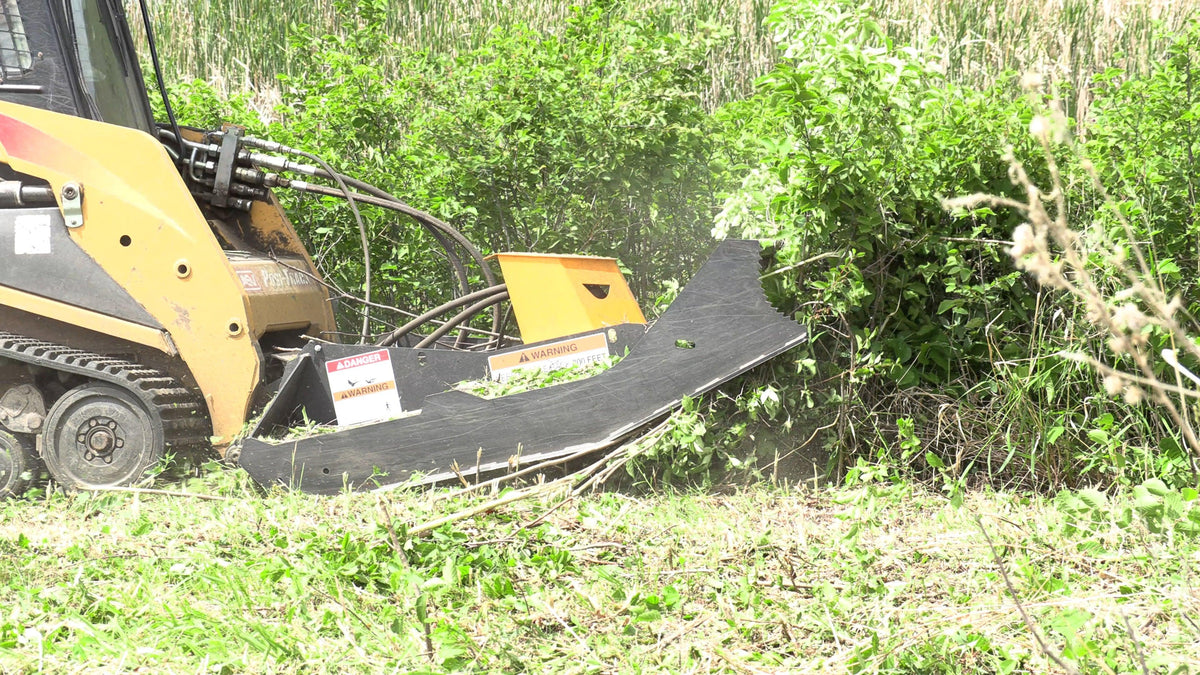

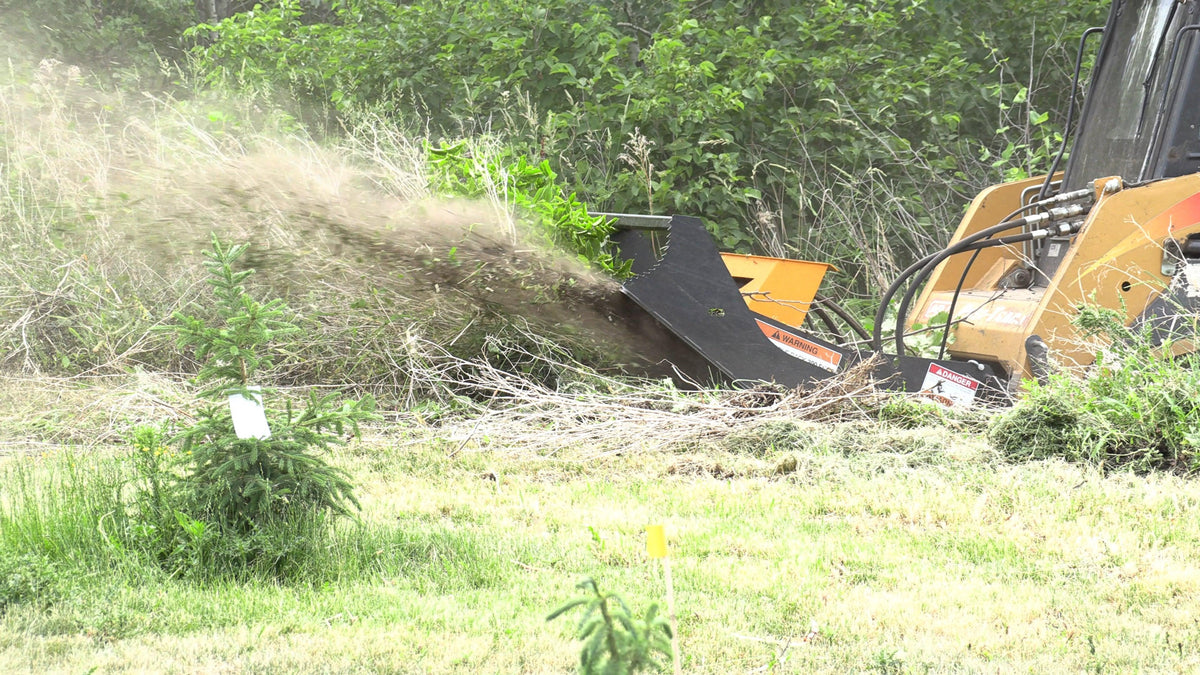

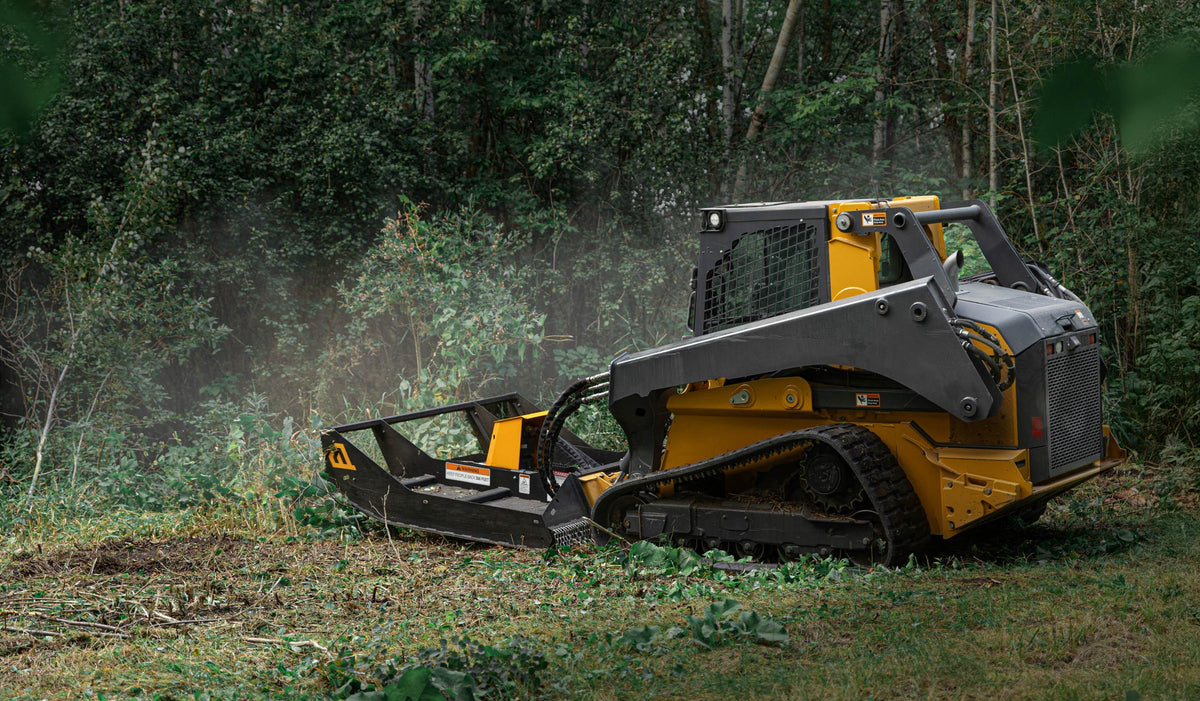

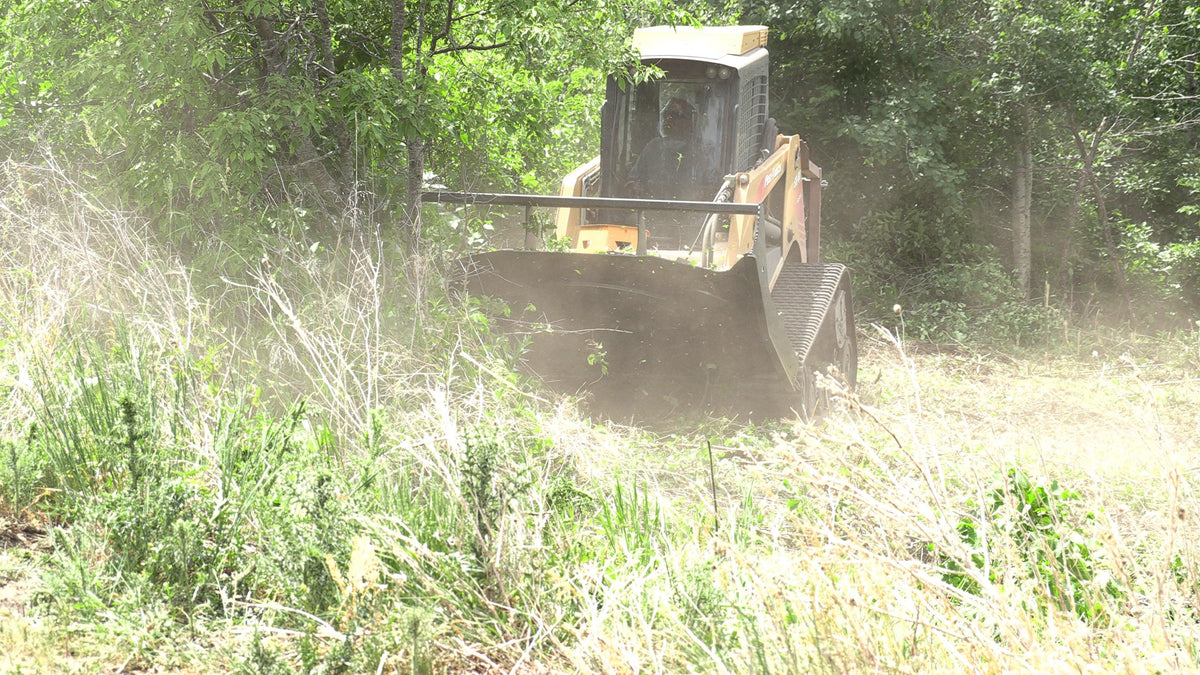

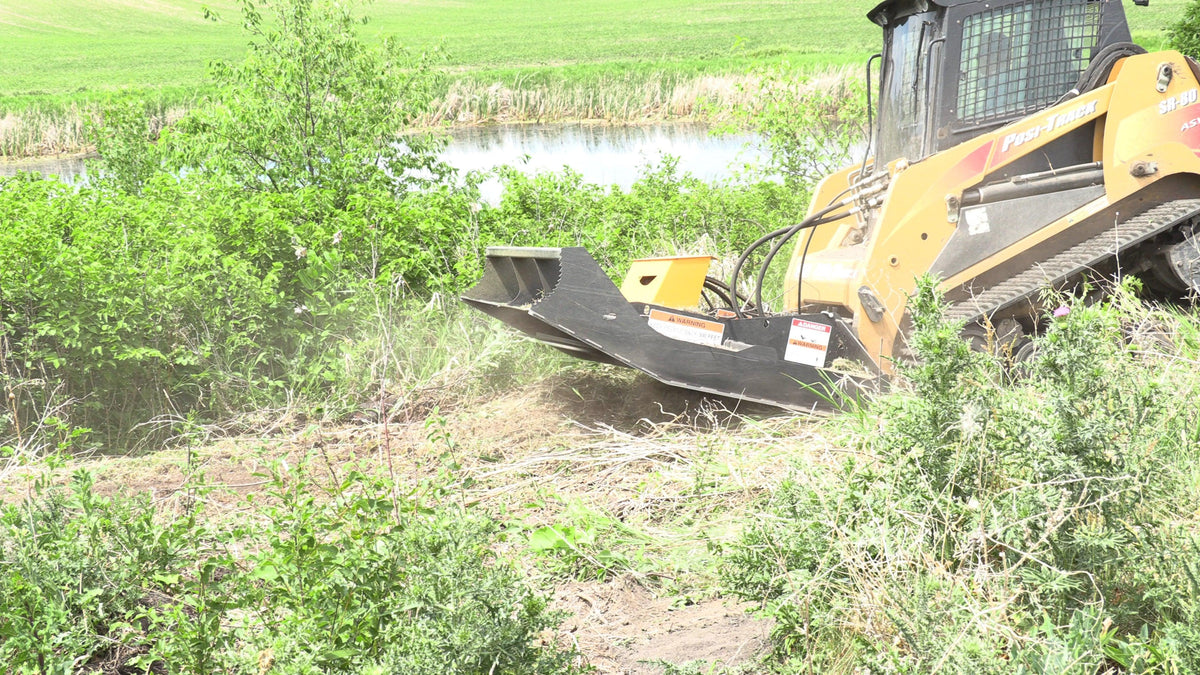

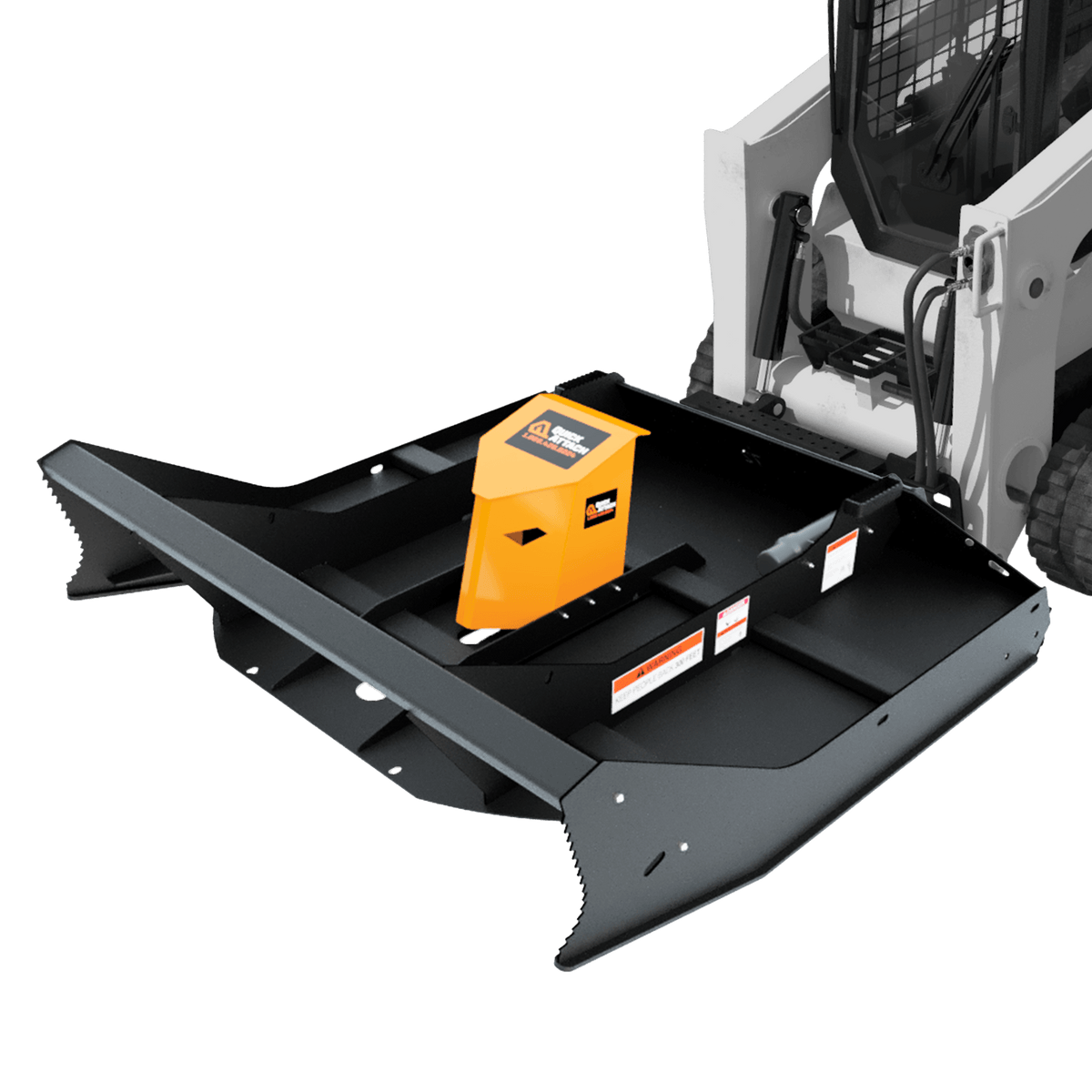

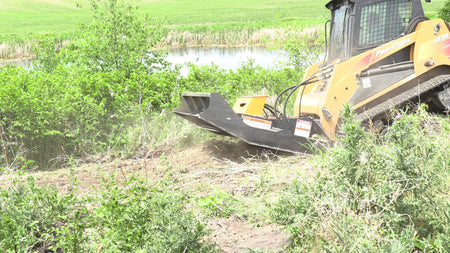

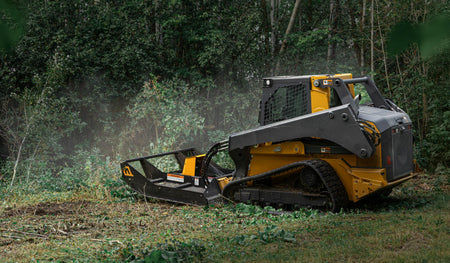

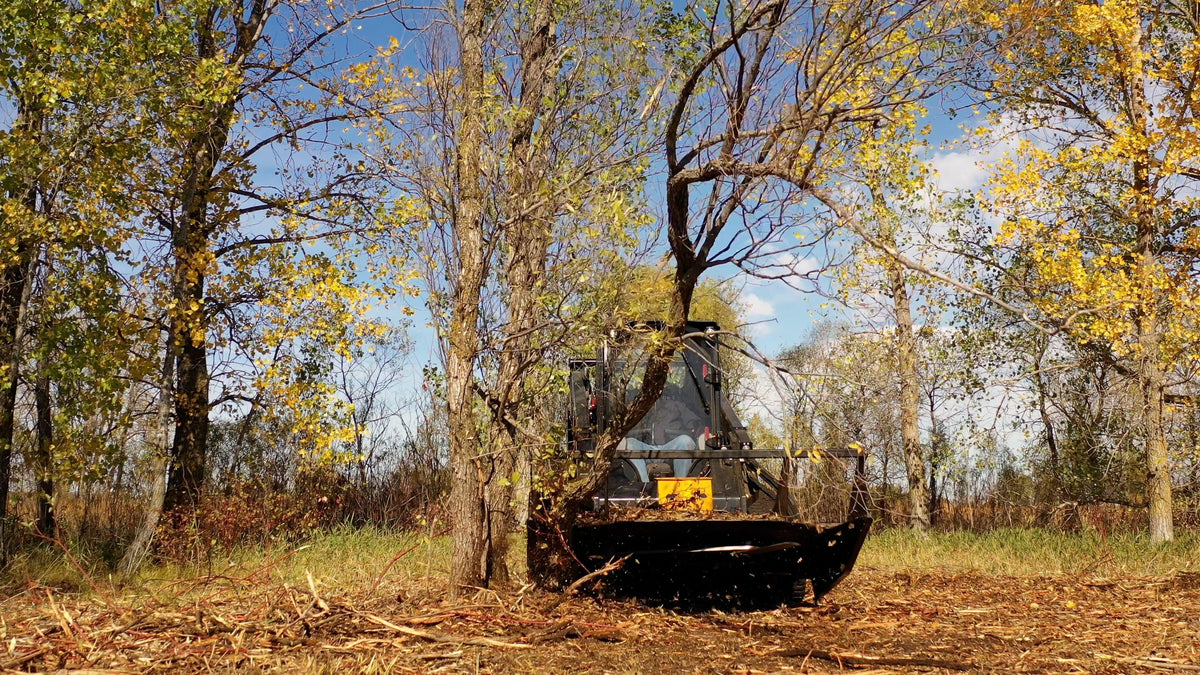

Most brush cutters stop at saplings. The Quick Attach Mega Mower X takes material up to 10 inches in diameter, which moves it out of the mowing category and into land clearing. The open front deck and heavy-duty push bar let you drive into standing growth and put it down rather than working around it.

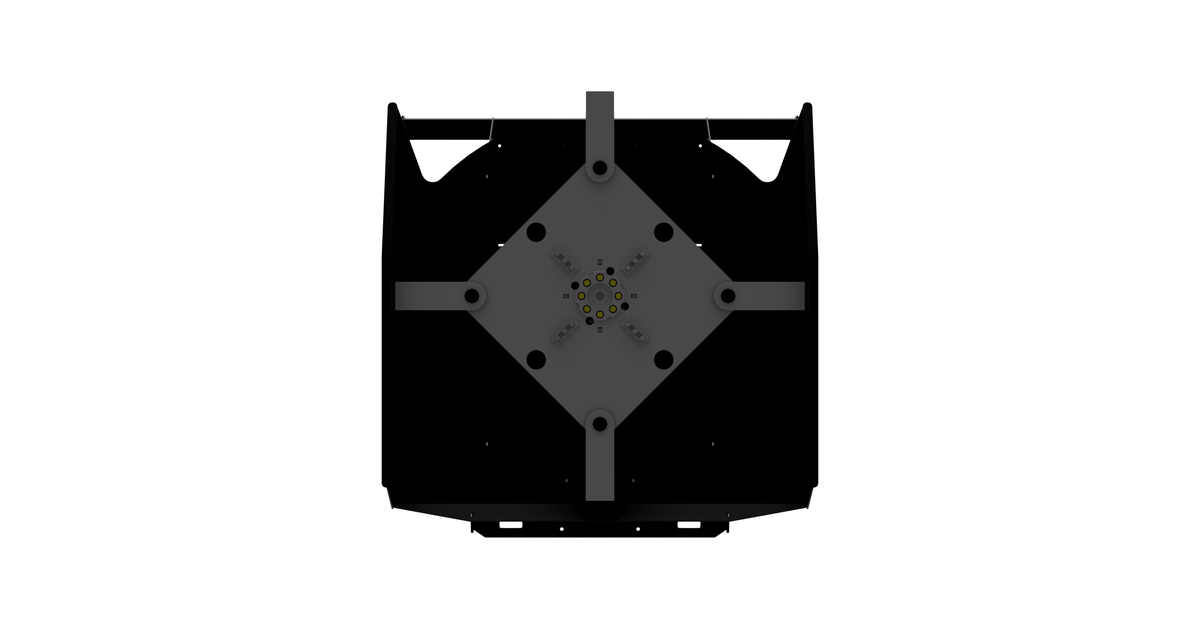

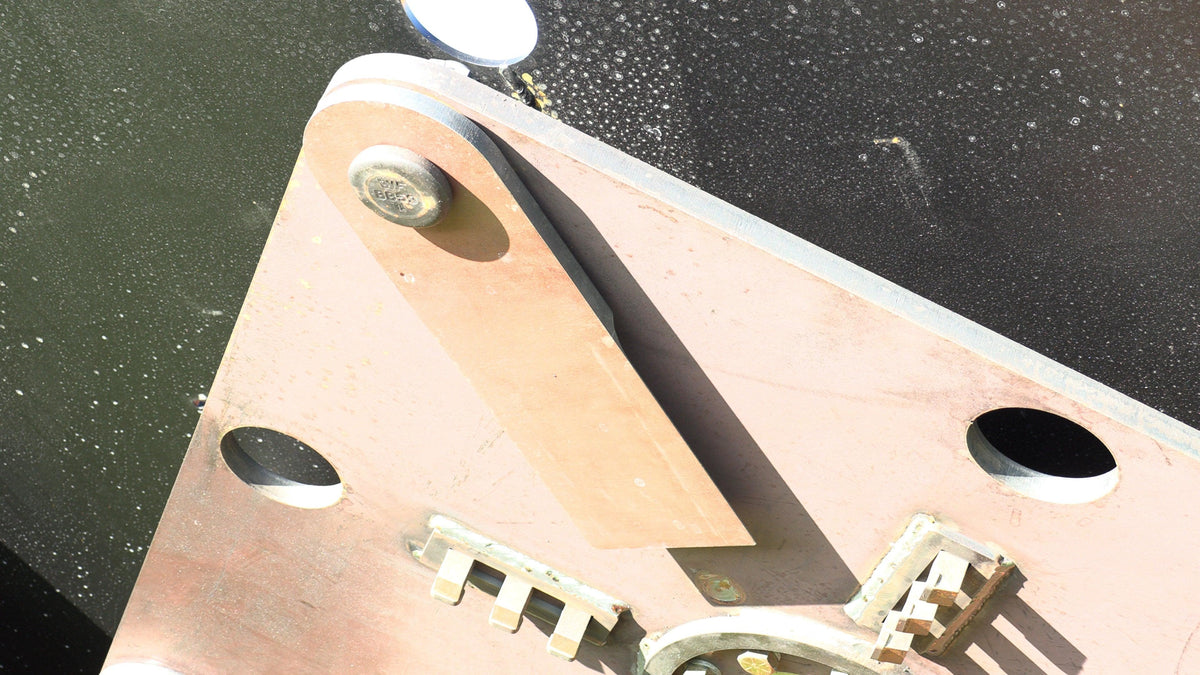

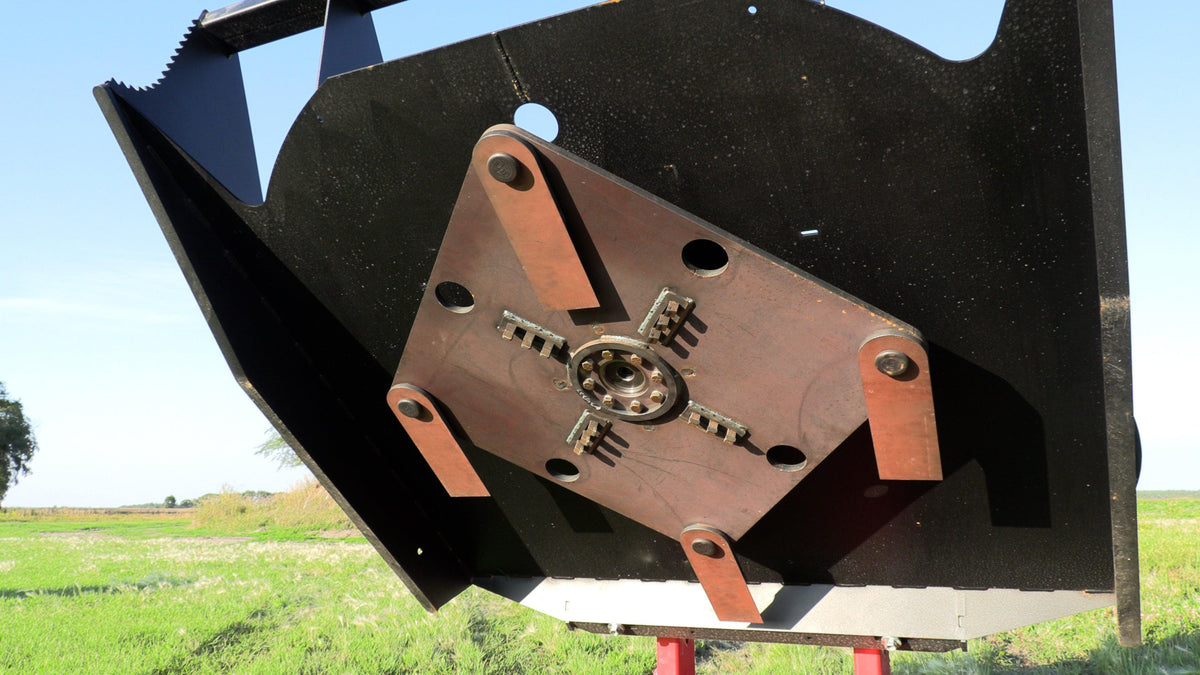

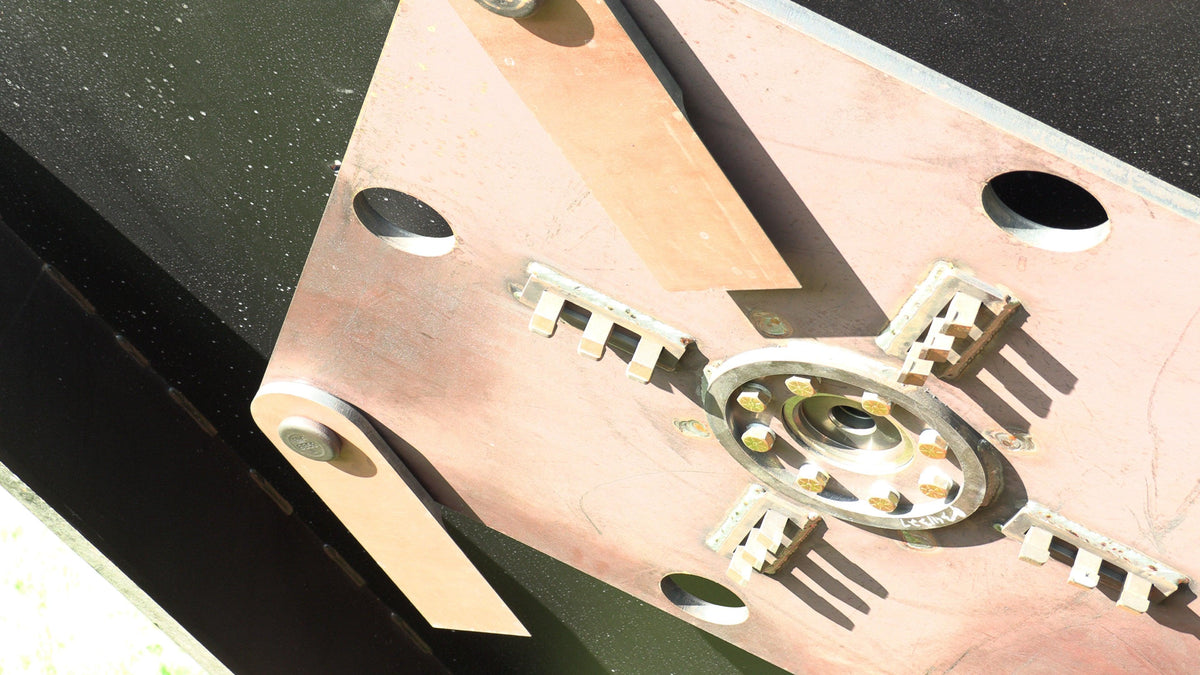

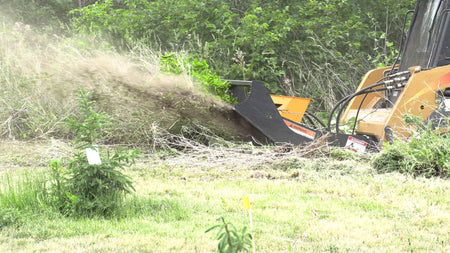

Underneath, twelve carbide-tipped teeth on the bottom of the blade carrier stir cut material and grind at stumps as you pass, so the ground behind you is closer to finished. Four blades run on a 3/4-inch Grade 50 blade carrier, driven direct by a hydraulic motor with no gearbox in between.

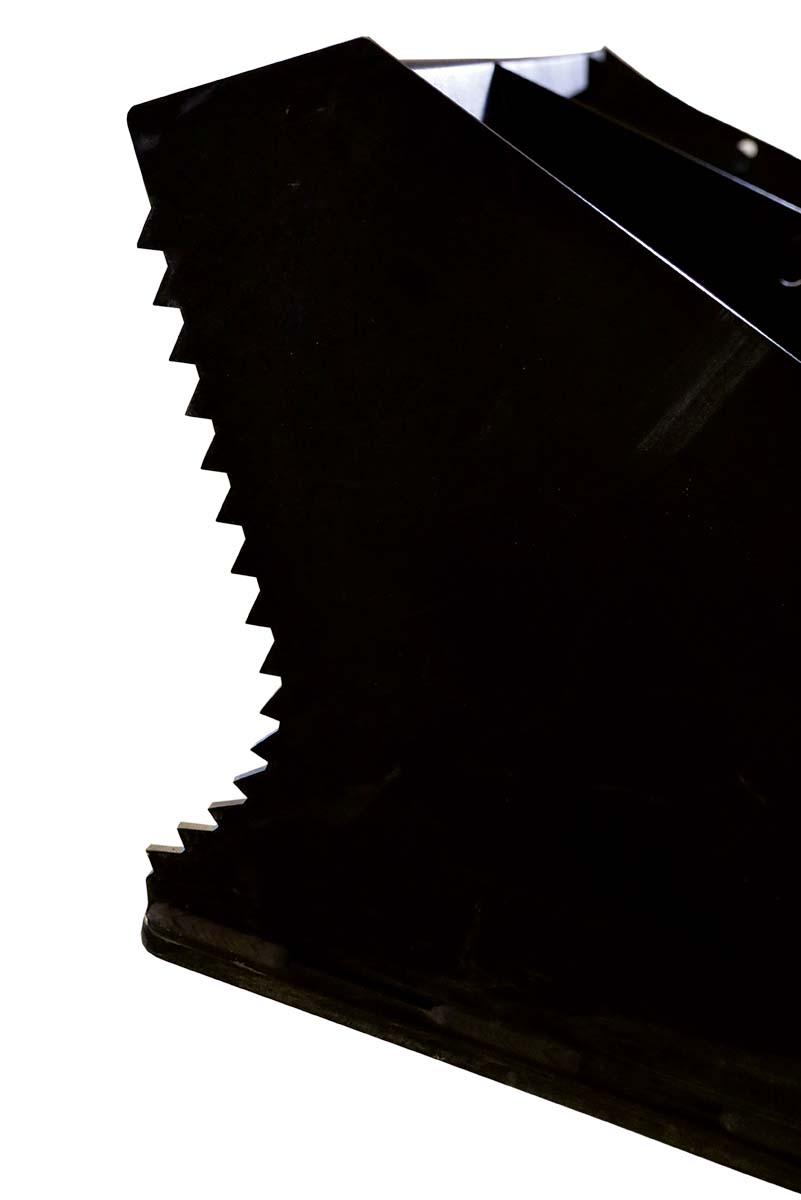

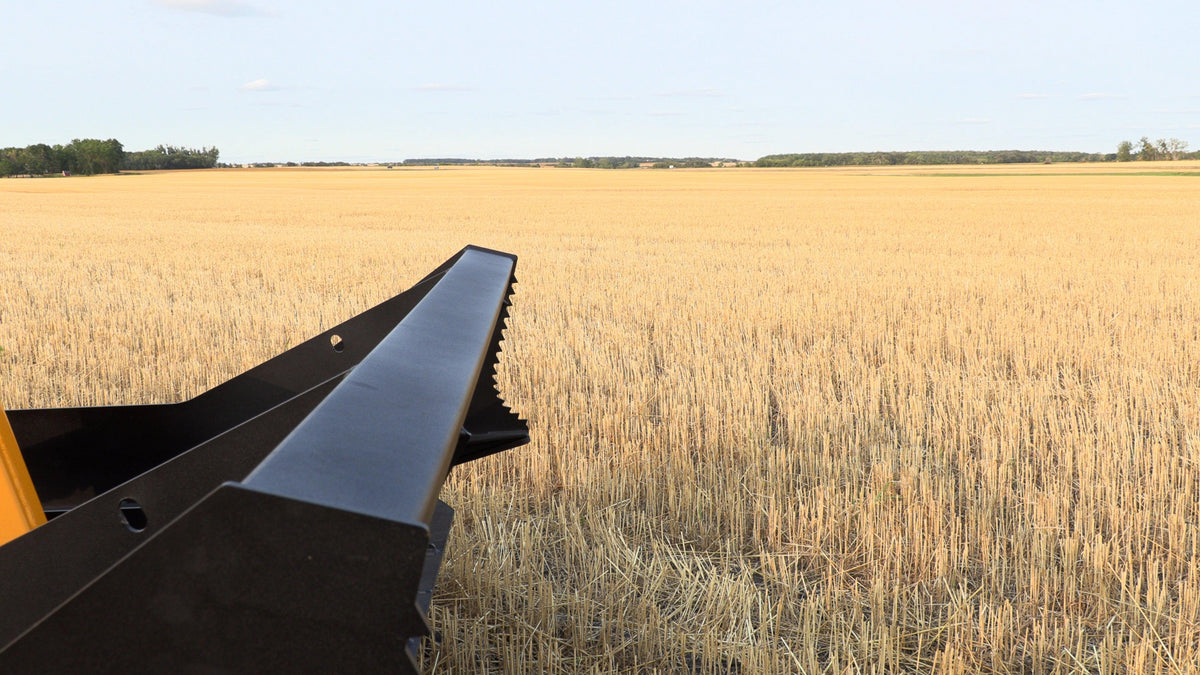

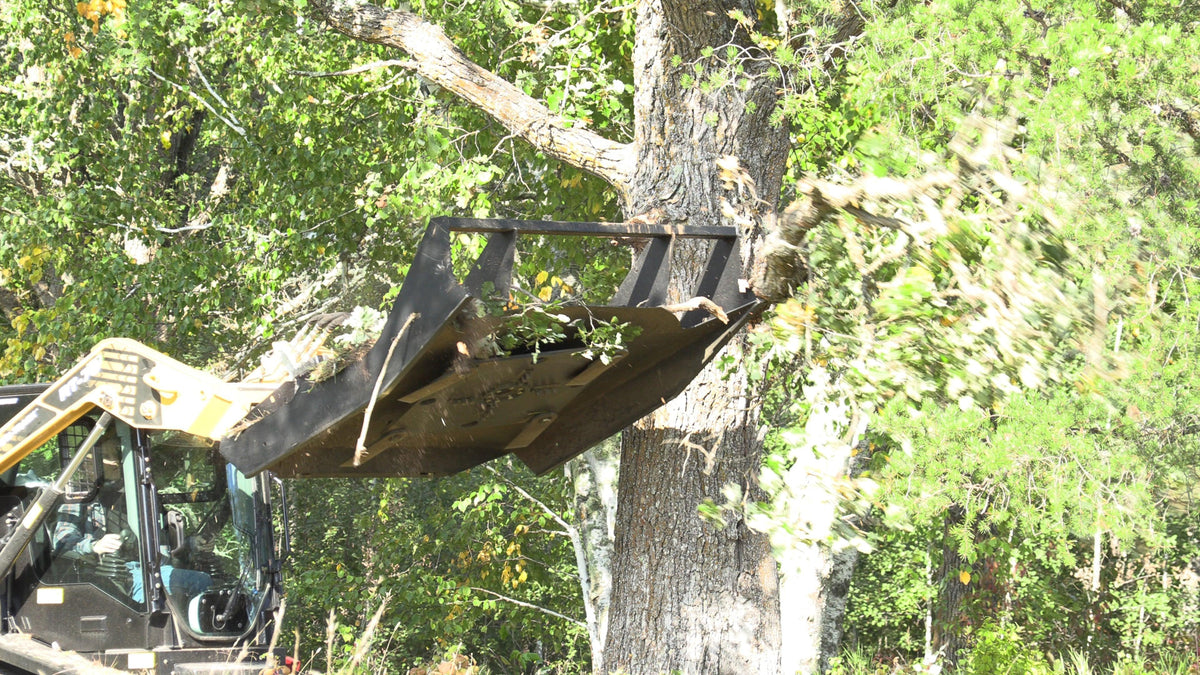

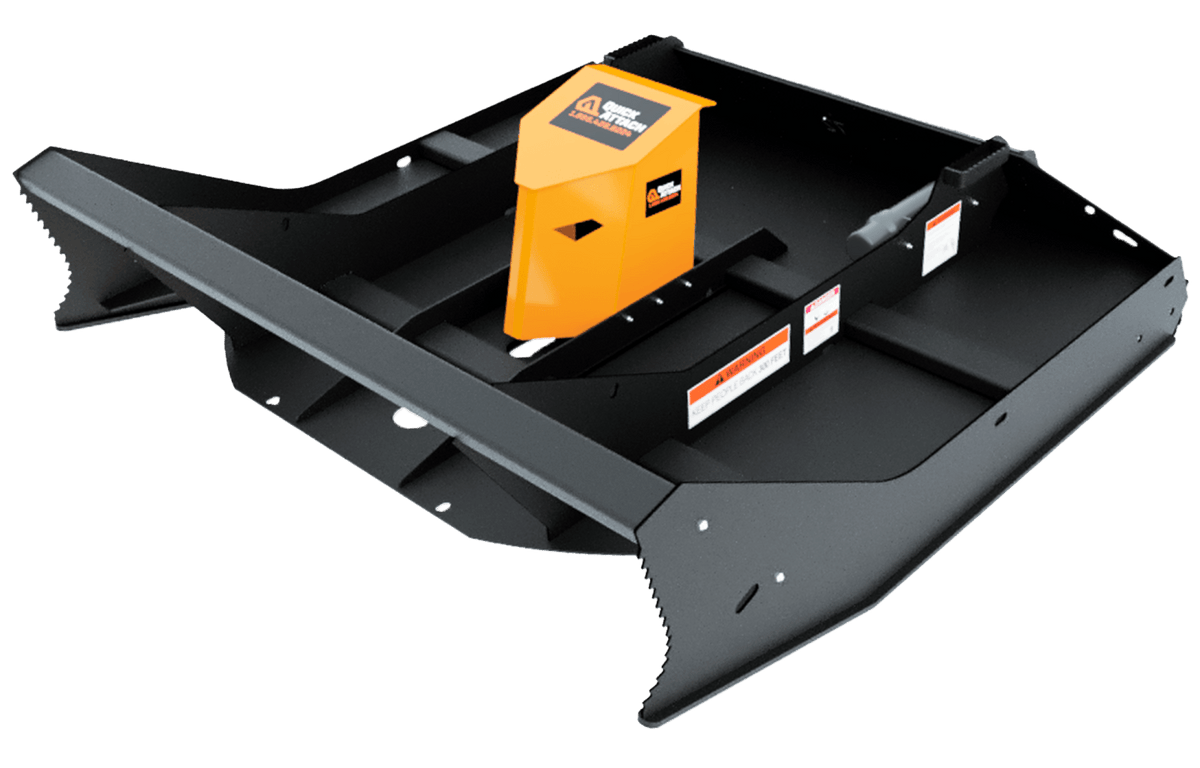

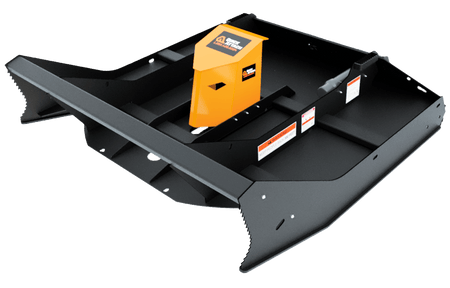

The deck is built for repeat abuse. Quarter-inch side plates run the full length and tie into the push bar and supports, and 2-inch by 4-inch Grade 50 steel tubes carry the deck at roughly twice the strength of the C-channel most cutters use. Patent-pending serrated side plates let you limb overhanging branches as you clear, which saves a separate trip with a saw.
Three standard flow widths cover most machines: 66, 72, and 78 inches, all running on 15 to 25 GPM.
Ideal For: Land clearing contractors, hunting property managers, and large acreage owners running standard flow skid steers who need to clear heavy brush and small trees, not just mow grass.
Key Features
-
10-Inch Cutting Capacity: Handles heavy brush, saplings, and small trees well past normal mowing range.
-
12 Carbide-Tipped Teeth: Stir cut material and grind stumps as you pass for a cleaner finish.
-

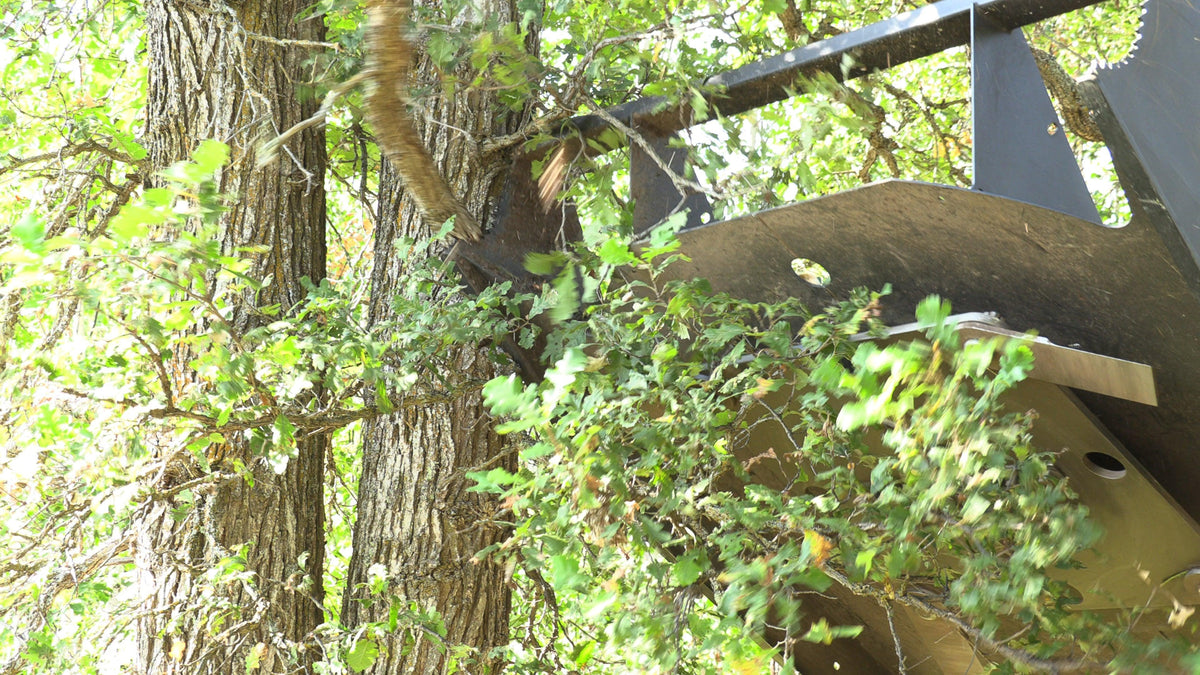

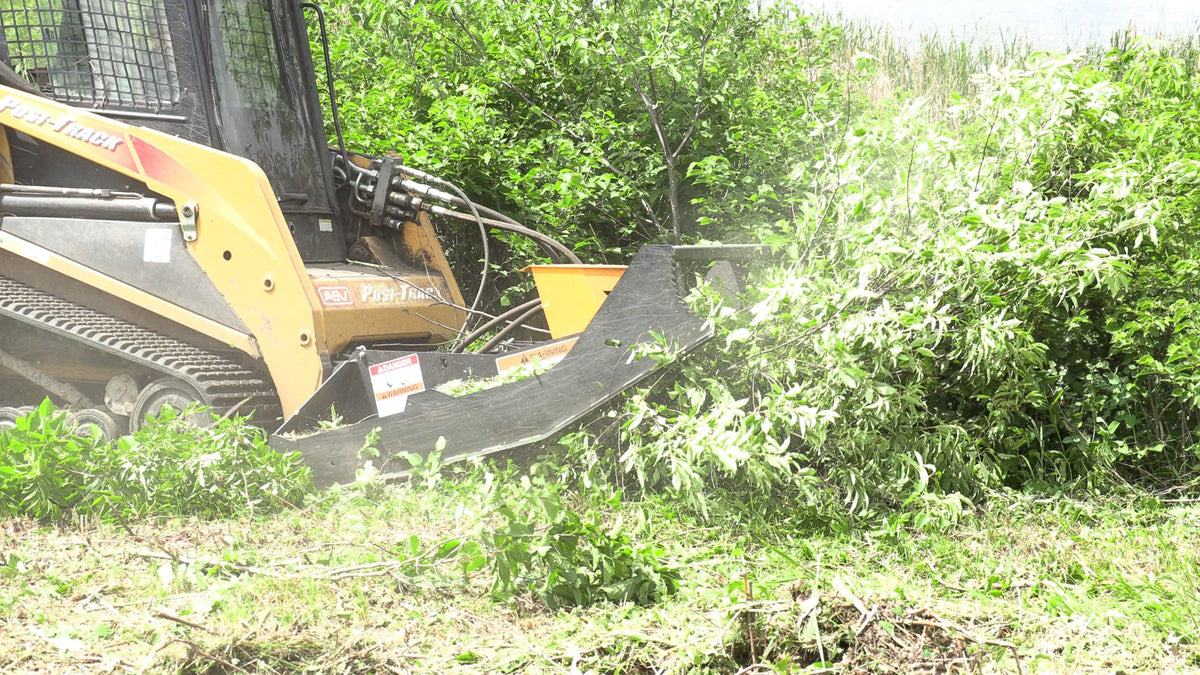

Patent-Pending Serrated Side Plates: Limb overhanging branches while clearing, with no second tool.
-
Direct Drive Hydraulic Motor: No gearbox to service or fail between the motor and the blades.
-
2-Inch by 4-Inch Grade 50 Deck Tubes: About twice the strength of C-channel deck supports.
-
1/4-Inch Full-Length Side Plates: Tie into the push bar and supports for a deck that resists racking.
-

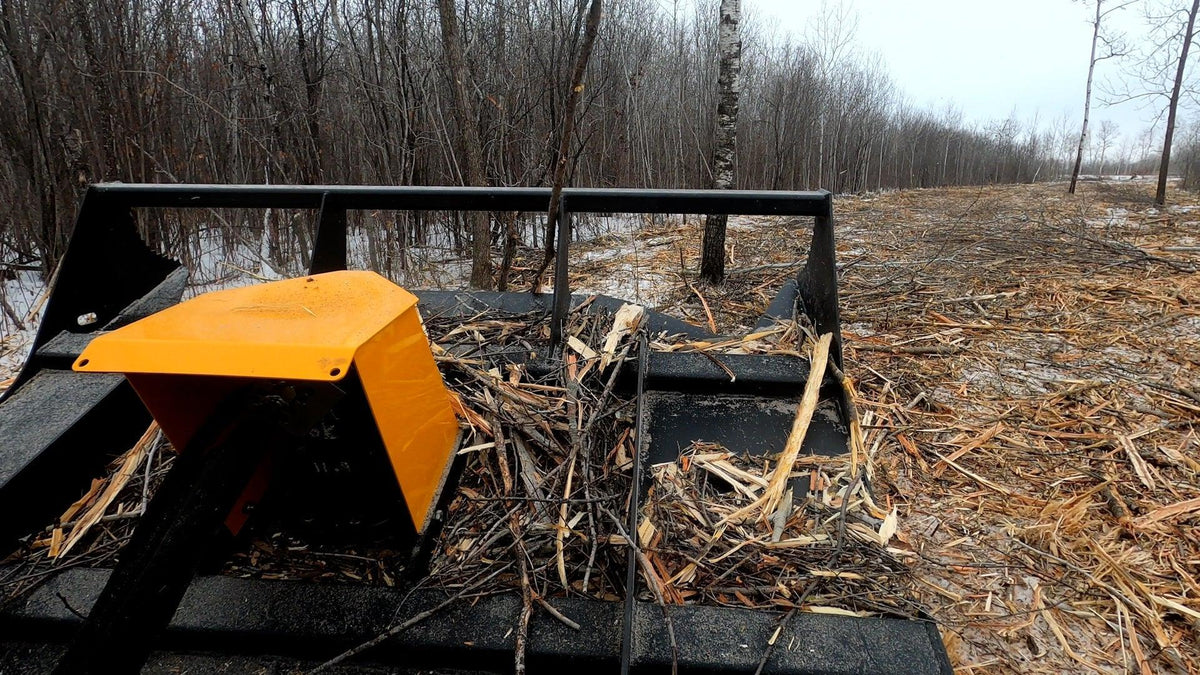

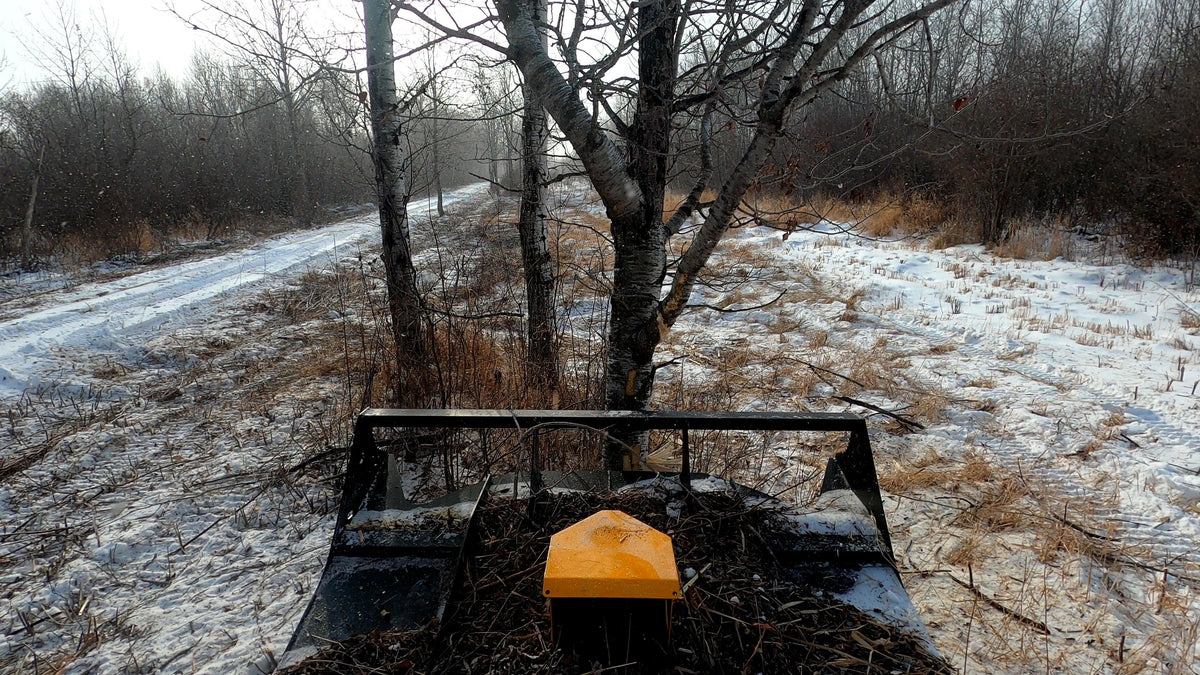

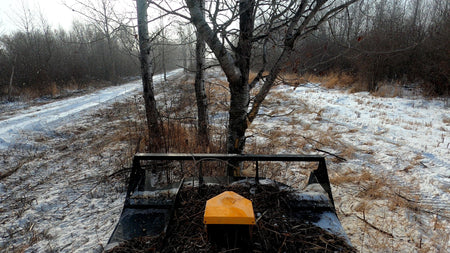

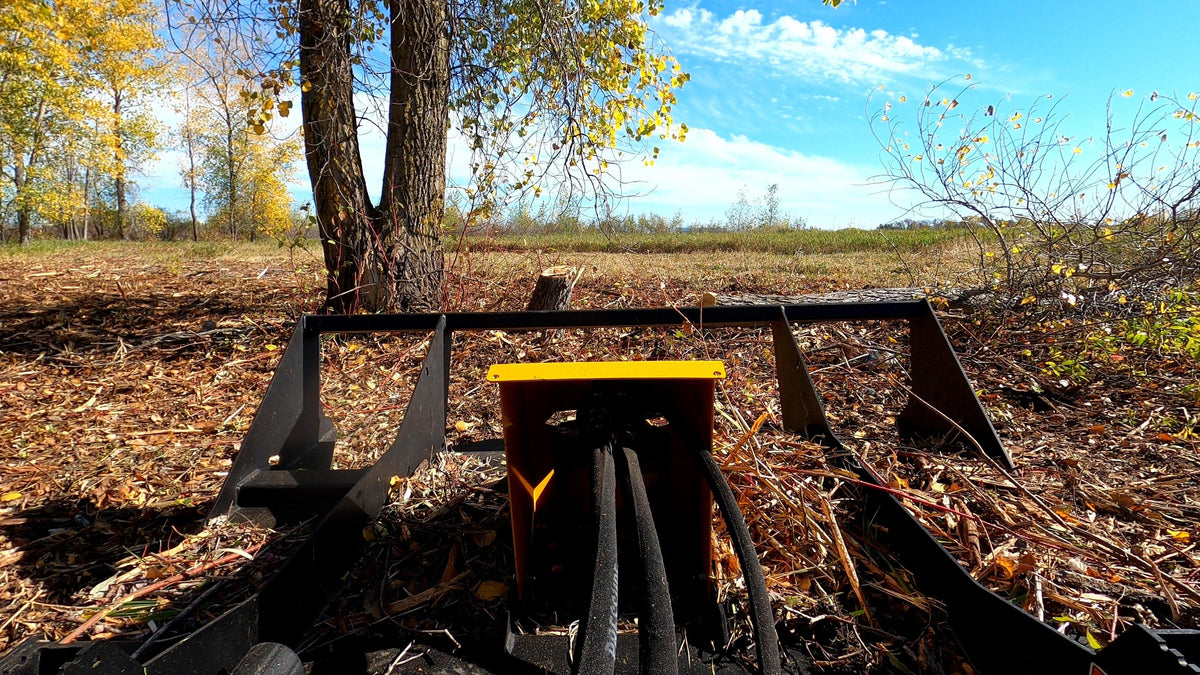

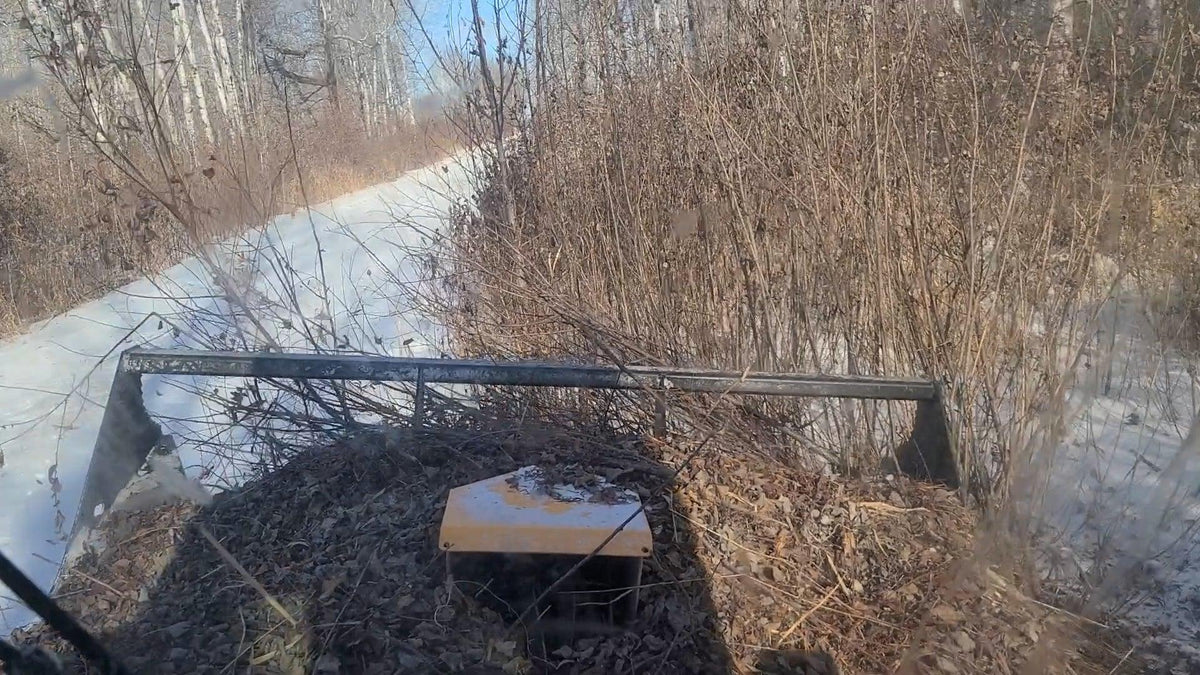

Open Front Deck and Push Bar: Drive into standing growth and lay it down instead of going around.
-

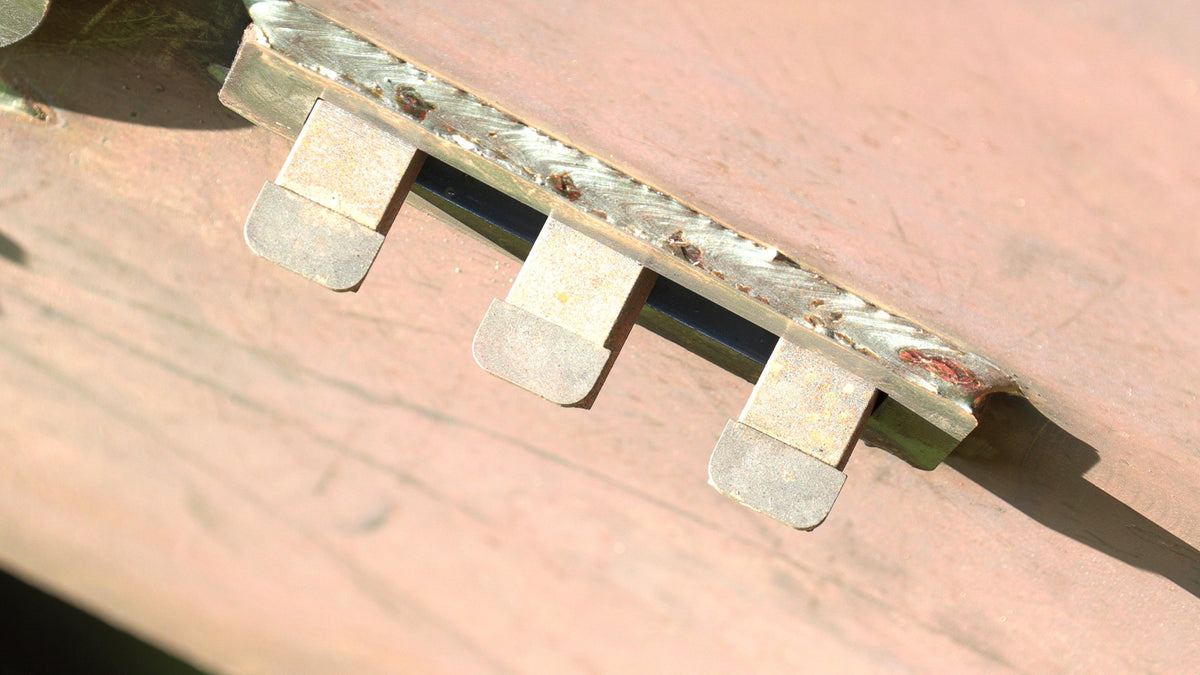

Wire Catchers Standard: Keeps fence wire and cable out of the bearing and seals.
-
Three Cutting Widths: 66, 72, and 78 inches to match your machine's flow and frame.
Technical Specifications
| Specification |
66 in. |
72 in. |
78 in. |
| Part Number |
902083 |
902084 |
902086 |
| Cutting Width |
66 in. |
72 in. |
78 in. |
| Cutting Capacity |
10 in. |
10 in. |
10 in. |
| Hydraulic Flow Requirements |
15-25 GPM |
15-25 GPM |
18-25 GPM |
| Maximum Pressure |
4,500 psi |
4,500 psi |
4,500 psi |
| Motor |
Direct Drive Hydraulic |
Direct Drive Hydraulic |
Direct Drive Hydraulic |
| Blades |
(4) 1/2 in. x 14.5 in. |
(4) 1/2 in. x 16 in. |
(4) 1/2 in. x 17.5 in. |
| Blade Carrier Thickness |
3/4 in. Grade 50 |
3/4 in. Grade 50 |
3/4 in. Grade 50 |
| Blade System Mass |
303 lb. |
340 lb. |
378 lb. |
| Blade System Energy |
131,521 ft/lb at 25 GPM |
106,179 ft/lb at 25 GPM |
79,363 ft/lb at 25 GPM |
| Tip Speed |
20,370 ft/min at 25 GPM |
17,700 ft/min at 25 GPM |
14,800 ft/min at 25 GPM |
| Number of Carbides |
12 |
12 |
12 |
| Bearing Carrier Weight |
75 lb. |
75 lb. |
75 lb. |
| Output Bearing Size |
2.875 in. |
2.875 in. |
2.875 in. |
| Wire Catchers |
Yes |
Yes |
Yes |
| Height |
27 in. |
27 in. |
27 in. |
| Length |
71.5 in. |
77.5 in. |
83.5 in. |
| Overall Width |
70 in. |
76 in. |
82 in. |
| Operating Weight |
1,375 lb. |
1,502 lb. |
1,645 lb. |
What's Included
- Quick Attach Mega Mower X Standard Flow Brush Cutter in selected width
- Operator Manual
Reclaim the overgrowth instead of mowing around it. Request a quote on the Mega Mower X.
