Product Description

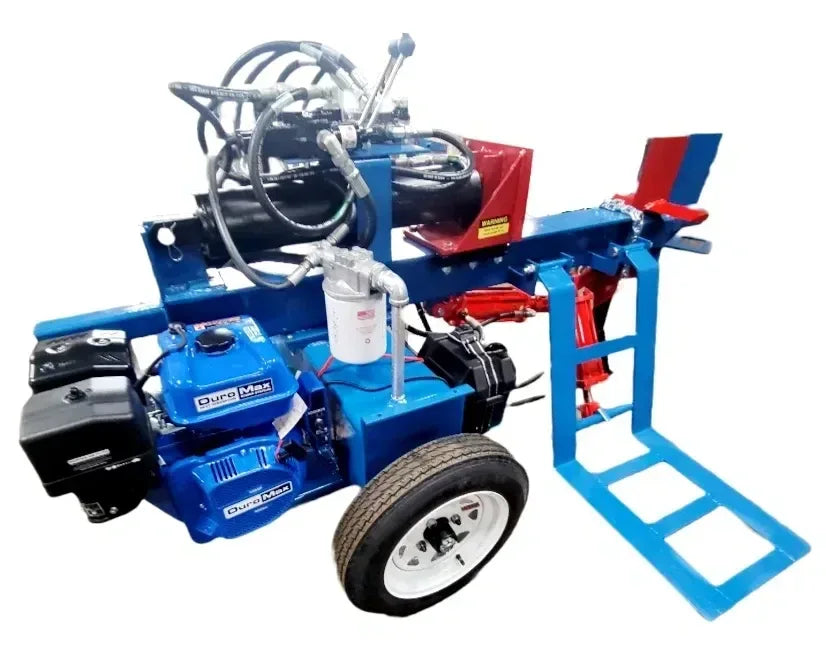

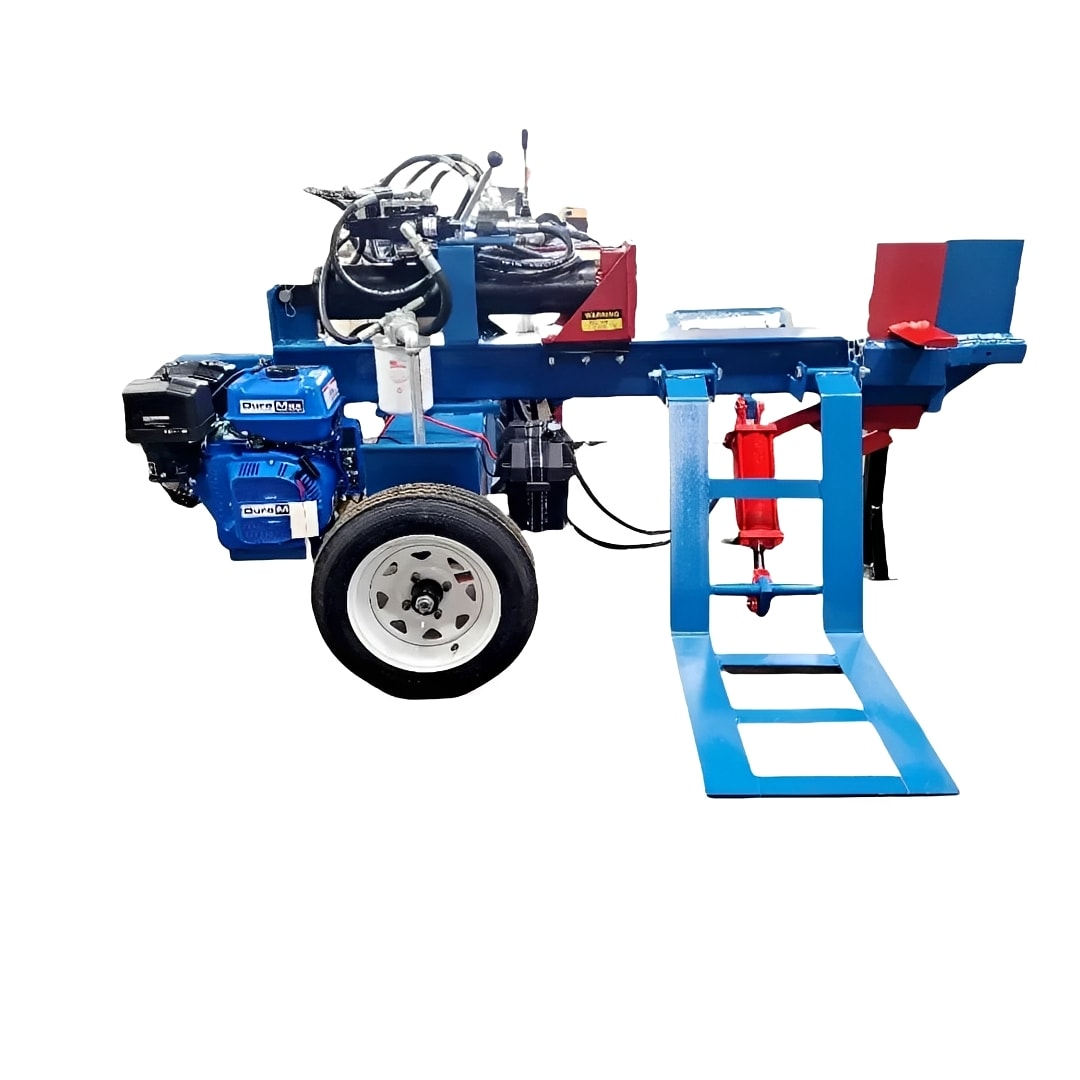

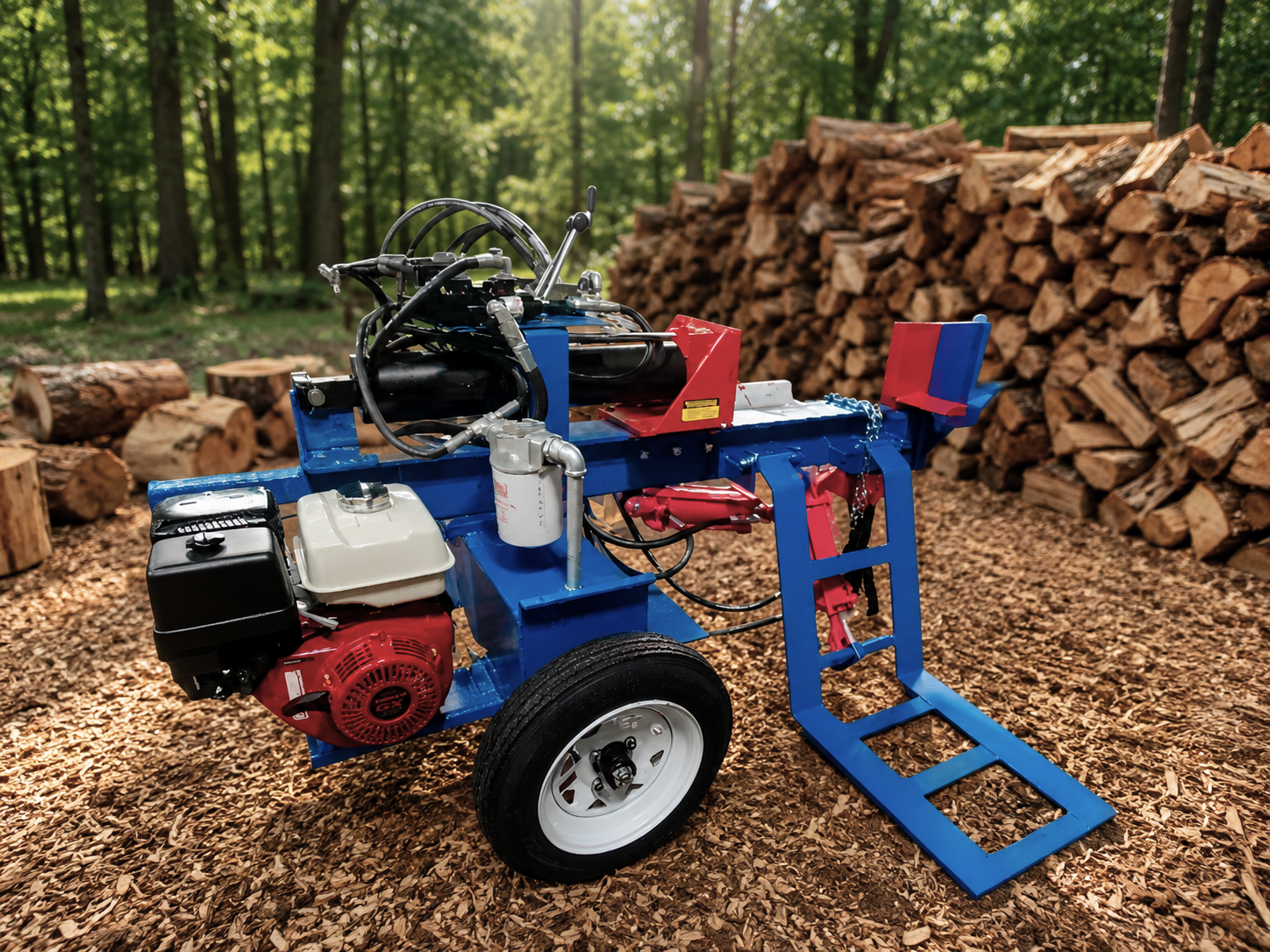

The Ram Splitters H34 takes everything you need in a heavy duty wood splitter and adds one feature that makes a real difference on cold mornings and long days — a 16HP DuroMax electric start engine. No pull-start wrestling, no warm-up struggles. Just turn the key and split.

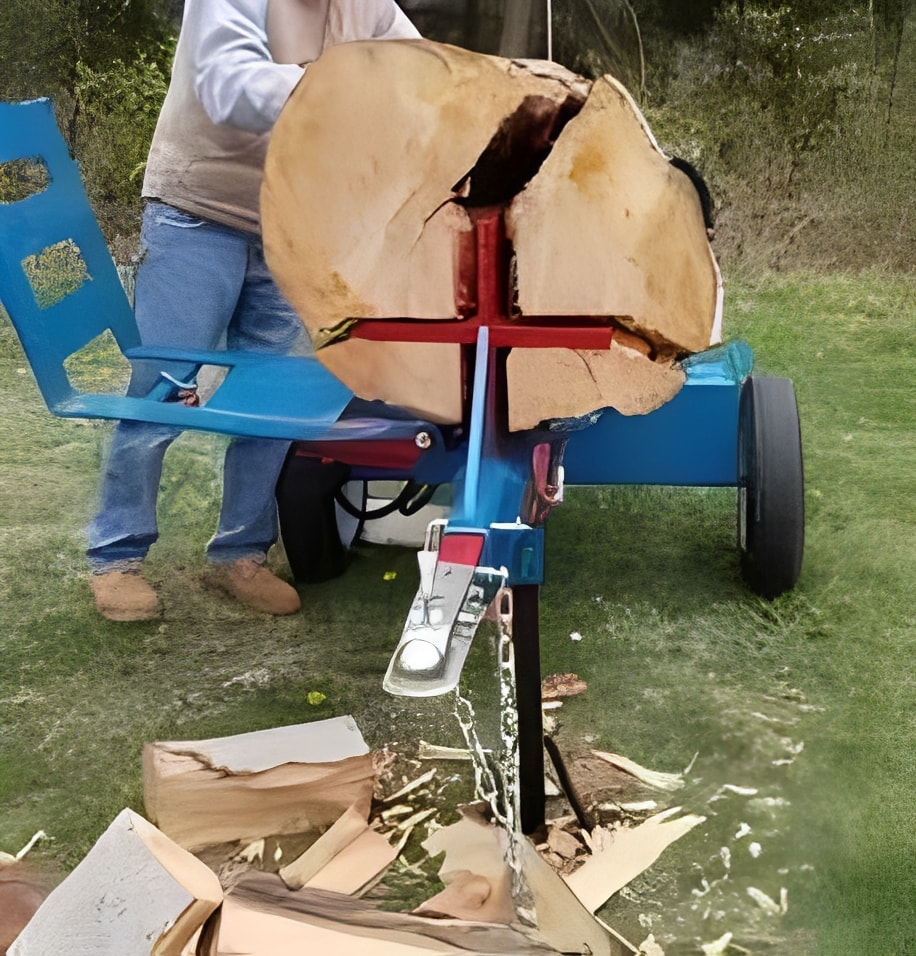

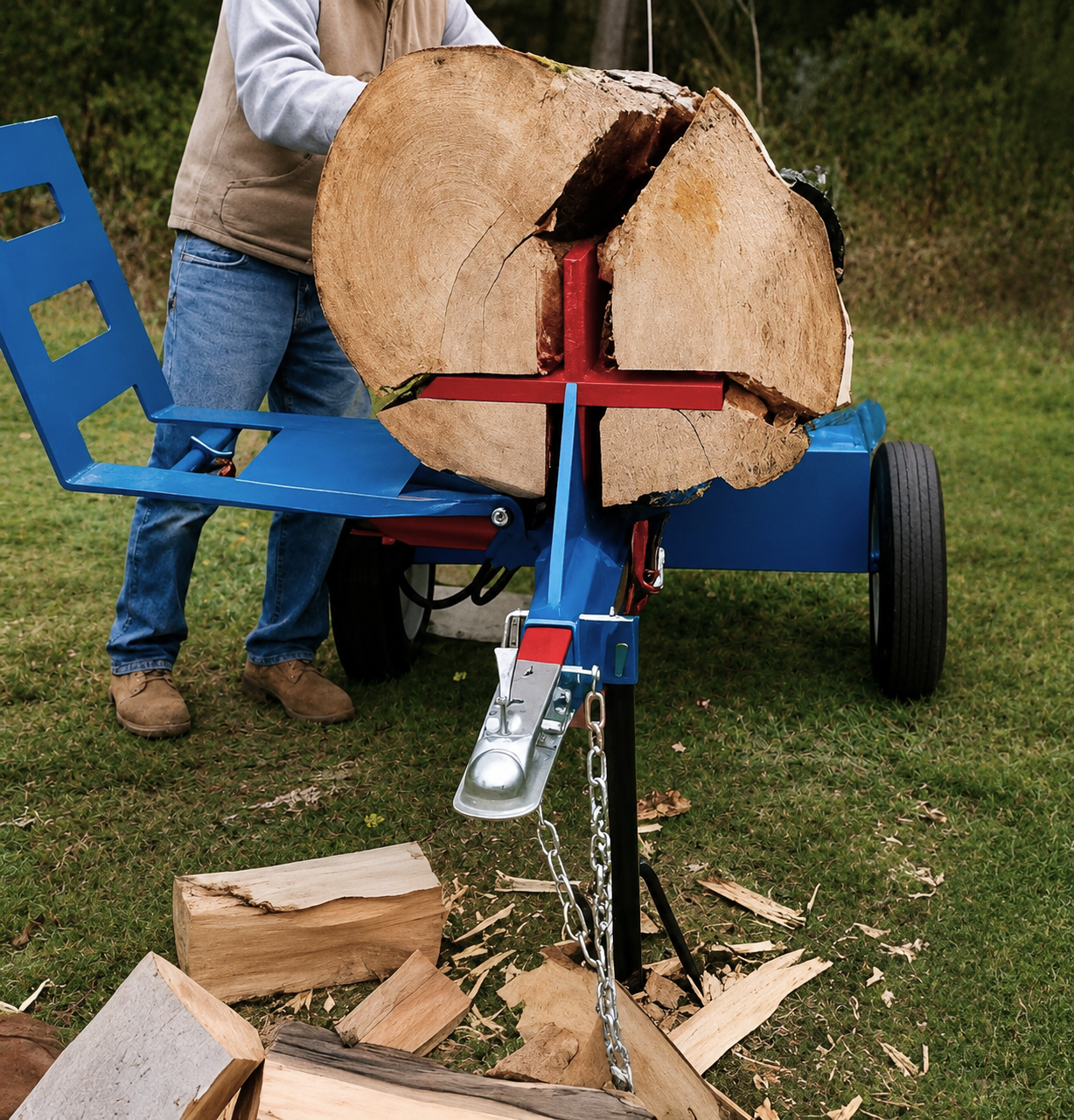

With 34 tons of ram force, a 5 x 24-inch cylinder, and a 22 GPM two-stage hydraulic pump, the H34 powers through logs up to 40 inches in diameter and 25 inches long without hesitation. The 12-inch hardened steel wedge is taller than most — giving you a cleaner, more complete split on large rounds in fewer passes. Optional hydraulic-powered 6-way wedges are available when you need to push production even harder.

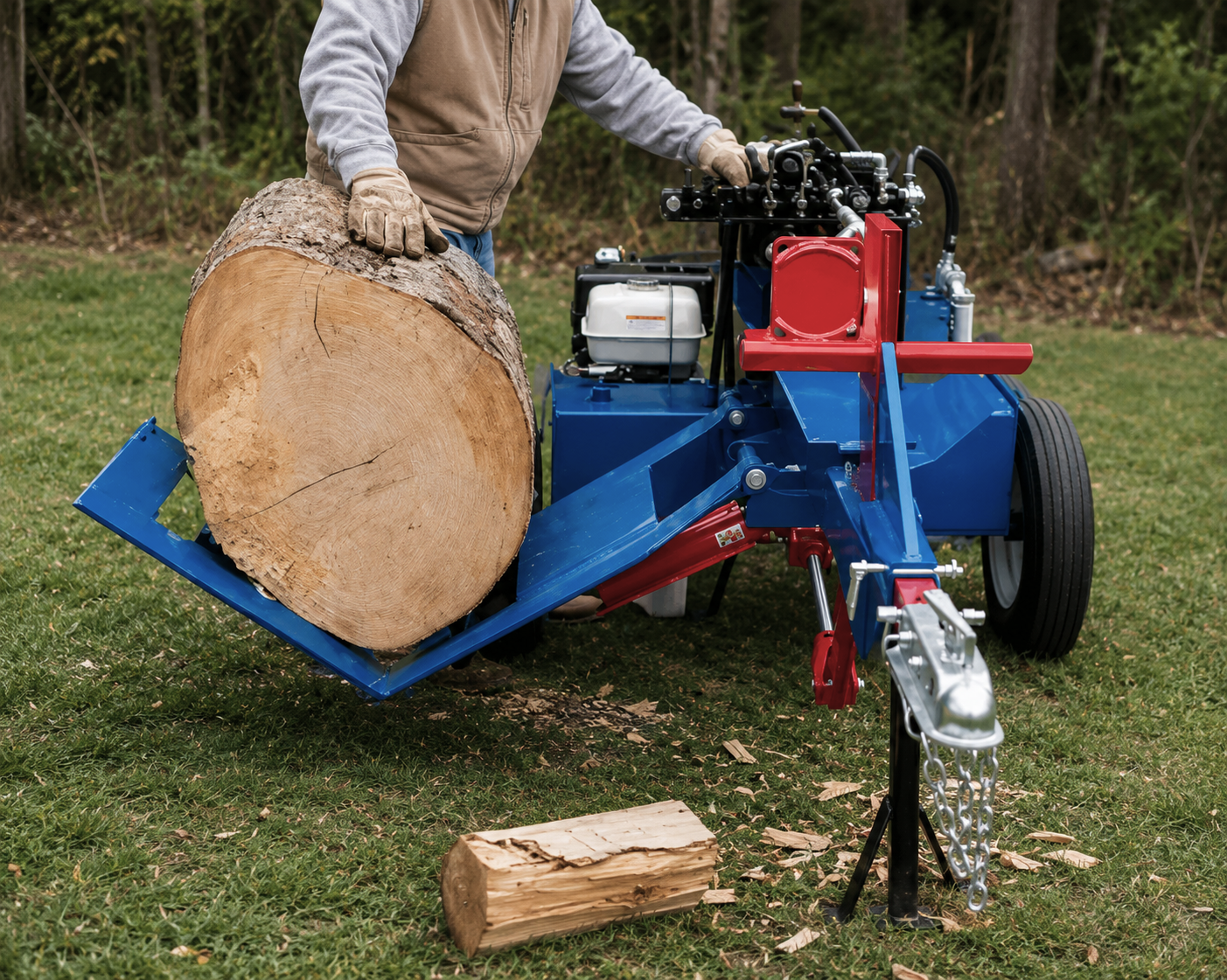

The included log lifter handles up to 500 lbs so heavy rounds go onto the beam without back strain, and the 32-inch beam working height keeps you comfortable through extended splitting sessions. The 15-gallon hydraulic tank and auto-return valve keep the cycle smooth and consistent all day long without constant fluid checks or slowdowns.
Road towable at 65 MPH with a 2-inch ball hitch and 12-inch tires — take it to the woodlot, job site, or anywhere the work is.
The engine carries its own 3-year warranty on top of the standard 1-year parts warranty — giving you extra confidence on one of the most important components on the machine.
Ideal For: Farmers, ranchers, firewood suppliers, contractors, and serious property owners who process large volumes of hardwood regularly and want the convenience of electric start combined with serious 34-ton splitting power.
Key Features

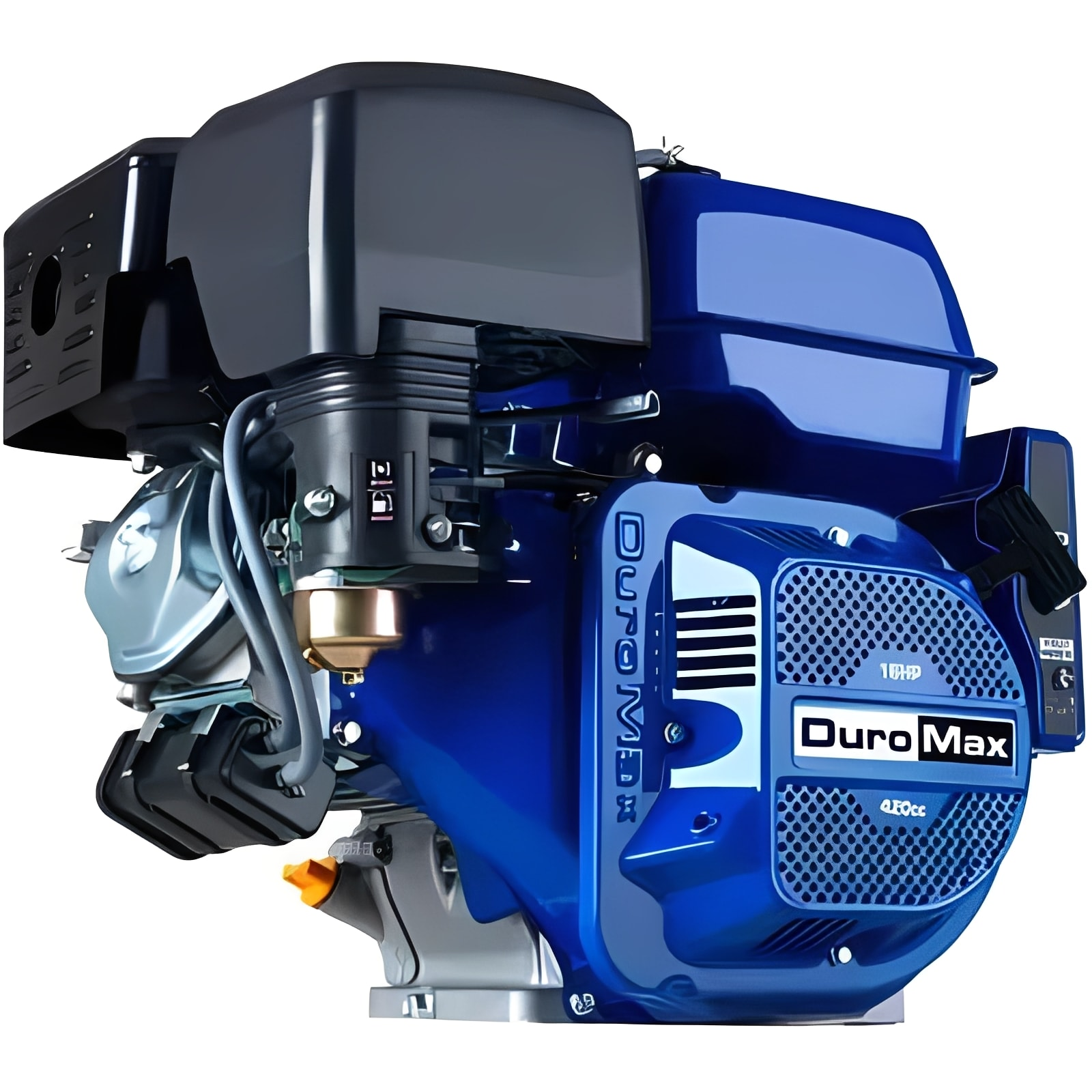

▪ 16HP DuroMax Electric Start Engine — Turn the key and go — no pull-start needed, even on cold mornings or after long breaks

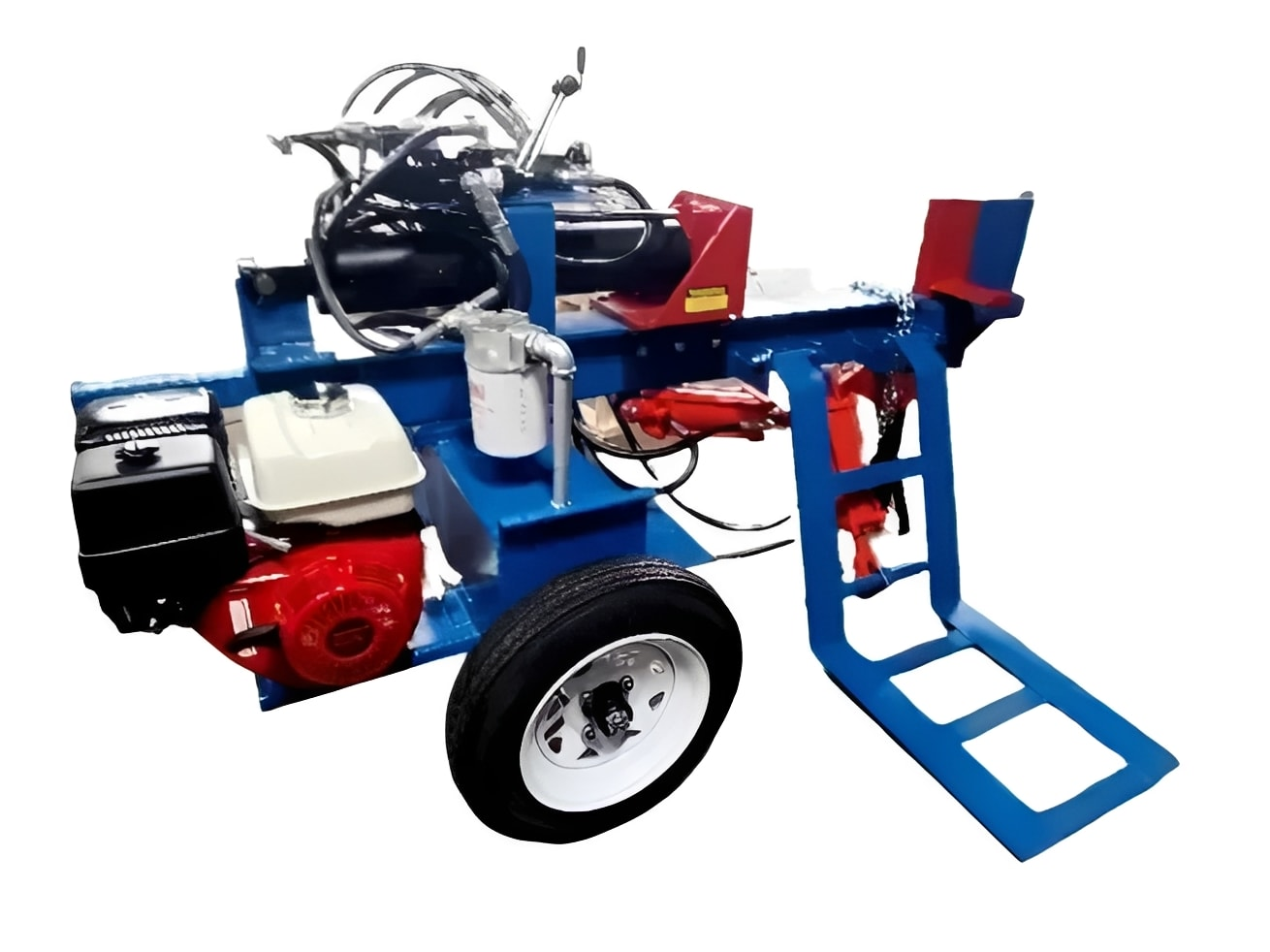

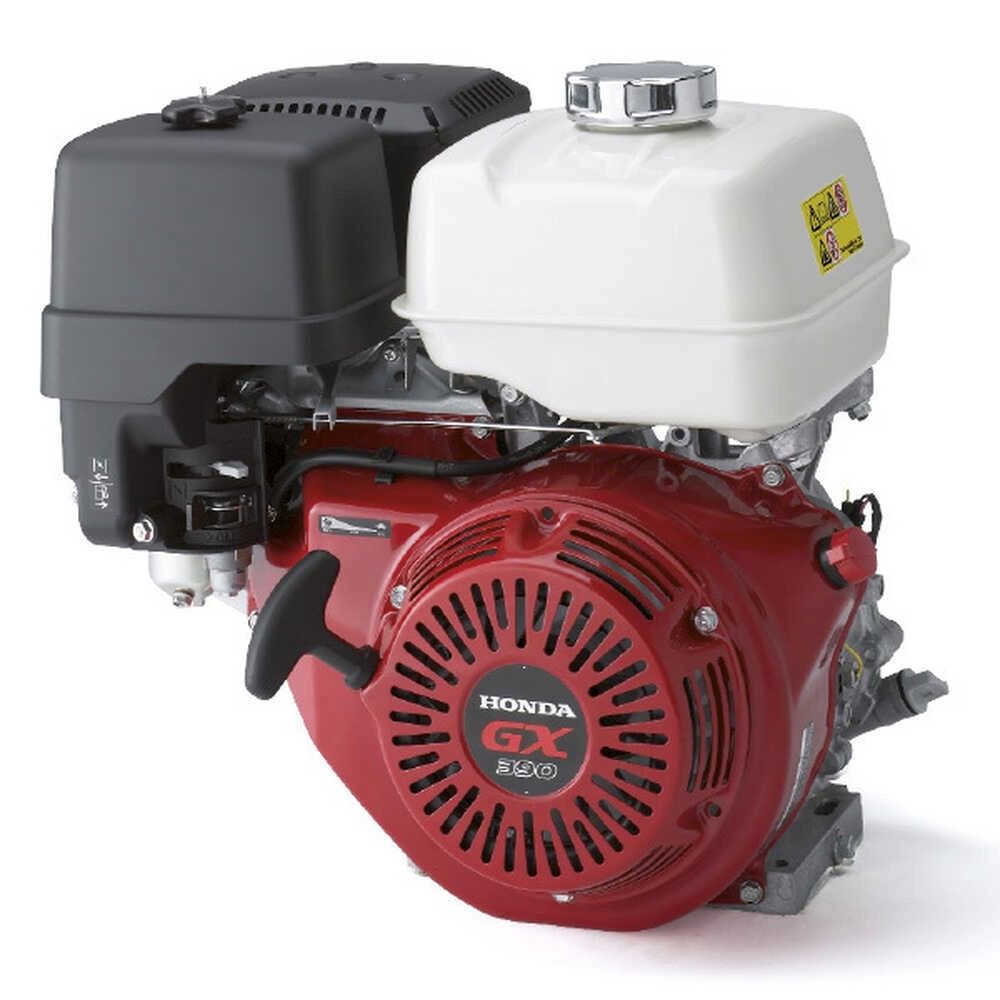

▪ 3-Year Engine Warranty — DuroMax XP16HPE or Honda 16HP engine carries its own 3-year warranty on top of the standard 1-year parts coverage
▪ 34-Ton Ram Force — Powers through logs up to 40 inches in diameter including the densest hardwood and most stubborn knotty rounds
▪ 12-Inch Hardened Steel Wedge — Taller than standard wedges for cleaner, more complete splits on large diameter logs
▪ Comes with a 4 way wedge and Optional 6-Way Wedges — Upgrade to hydraulic-powered wedge options for faster, higher volume production
▪ 22 GPM Two-Stage Hydraulic Pump — Fast, consistent hydraulic force all day long without losing performance

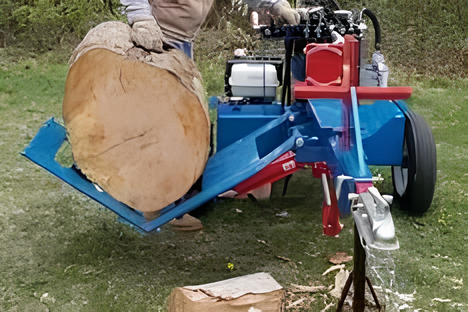

▪ Included Log Lifter — 500 LB Capacity — Load heavy rounds safely without manual lifting or back strain
▪ 32-Inch Beam Working Height — Ergonomic height reduces operator fatigue through long splitting sessions
▪ 15-Gallon Hydraulic Fluid Tank — Large capacity handles extended sessions without frequent fluid checks
▪ Auto-Return Valve — Automatically returns the ram for a faster, smoother cycle every time
▪ Road Towable at 65 MPH — 2-inch ball hitch and 12-inch tires make transport fast and easy

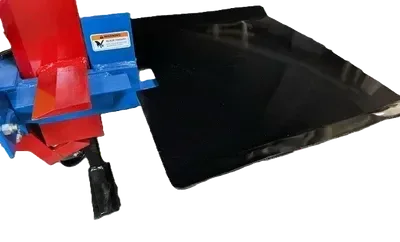

▪ Log Table Included — For a more complete and organized splitting setup
Technical Specifications
| Specification |
Detail |
| Model |
H34-1 |
| Ram Force |
34 Ton |
| Stroke |
24 in. |
| Cycle Time |
14 Seconds |
| Max Log Length |
25 in. |
| Max Log Diameter |
40 in. |
| Wedge |
Single Hydraulic + 4-Way, the 6-Way is available as an option |
| Wedge Type |
Hardened Steel |
| Wedge Height |
12 in. |
| Beam Type |
Tube Steel |
| Beam Working Height |
32 in. |
| Log Lift Capacity |
500 lbs. |
| Engine |
16HP DuroMax XP16HPE or Honda 16HP |
| Engine Type |
Gasoline |
| Displacement |
420CC |
| Starting System |
Electric Start |
| Fuel Tank |
1.75 Gallons |
| Engine Oil Capacity |
32.7 fl. oz. |
| Engine Warranty |
3 Years |
| Hydraulic Pump |
22 GPM Two-Stage |
| Hydraulic Valve |
Auto-Return |
| Hydraulic Tank |
15 Gallons |
| Hydraulic Fluid |
32 Weight / ATF |
| Cylinder |
Welded 5 x 24 in. |
| Hoses |
Wire Hydraulic |
| Trailer Hitch |
2 in. Ball Hitch |
| Max Tow Speed |
65 MPH |
| Tires |
12 in. |
| Product Weight |
1,000 lbs. |
| Dimensions (L x W x H) |
96 x 52 x 48 in. |
What's Included
▪ Ram Splitters H34 Log Splitter (fully assembled) ▪ Log lifter ▪ Operator Manual
Note: Hydraulic 6-way wedges are available as optional add-ons.
Processing serious hardwood and want the convenience of electric start with 34-ton splitting force? The Ram Splitters H34 delivers both — backed by a free 1-year parts and labour warranty plus a 3-year engine warranty. Add it to your equipment today.
