Product Description

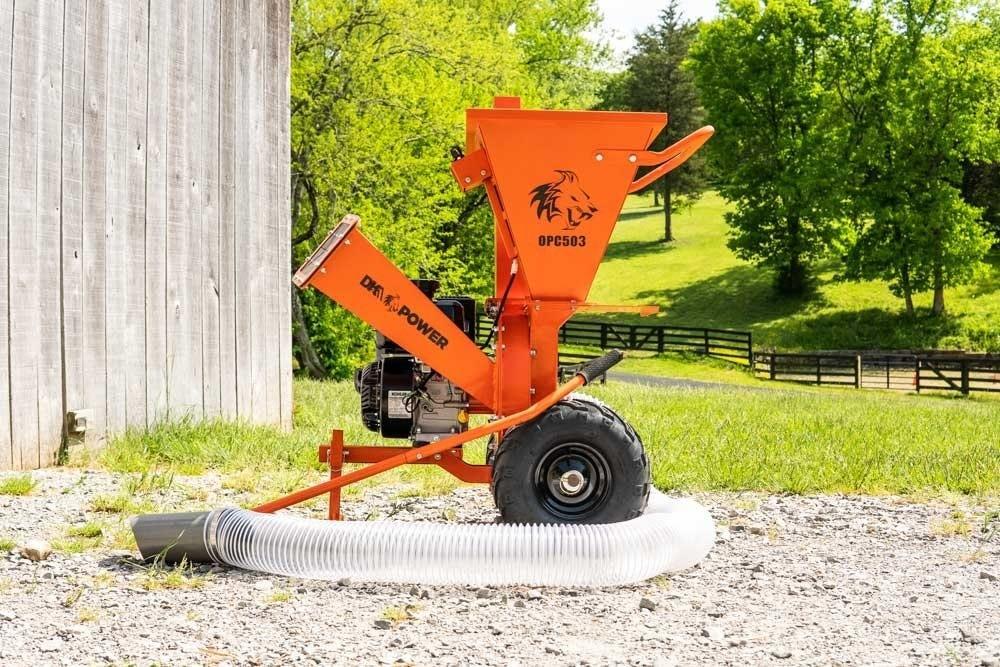

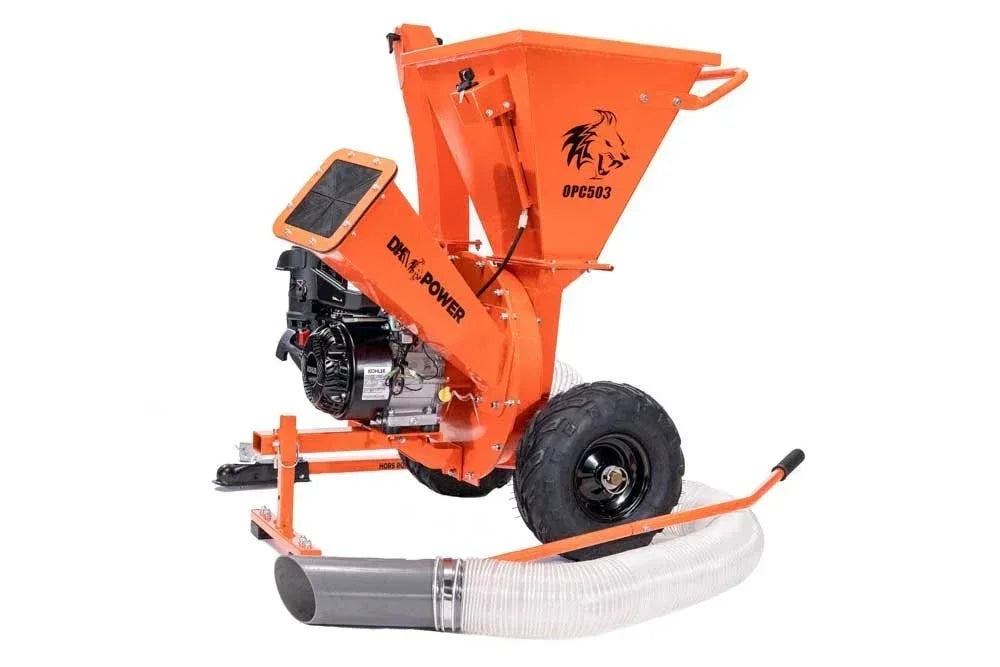

The OPC503 chips and shreds. The OPC503V does all of that — and vacuums too. The DK2 OPC503V adds an included vacuum kit to the proven OPC503 platform, turning it into a three-function yard waste machine that chips branches, shreds debris, and vacuums up leaves and garden mulch in one compact, towable package.
Same 7HP Kohler Command PRO CH270 engine, same compact 170 lb frame, same ATV-locking wheels — with the addition of the vacuum kit and upgraded quad hammer shredders that process vacuumed material more aggressively than the standard hammer configuration. Feed branches up to 3 inches through the side chute, drop lighter material through the top-loading hopper, or attach the vacuum kit and let the machine pull leaves and debris in automatically without bending over to pick them up.
The removable key shutoff adds a security layer the base OPC503 does not have — pull the key and the machine cannot be started without it. The drop stand and removable tow bar with 2-inch ball coupler make it easy to set up and move around the property at a maximum of 15 MPH off-road.
If you already like the OPC503 but want vacuum capability and upgraded shredding — this is the one to buy.
Ideal For: Homeowners, gardeners, hobby farmers, and DIY property owners who want a compact, affordable three-function yard waste machine that chips, shreds, and vacuums leaves and garden debris without separate equipment.
Key Features

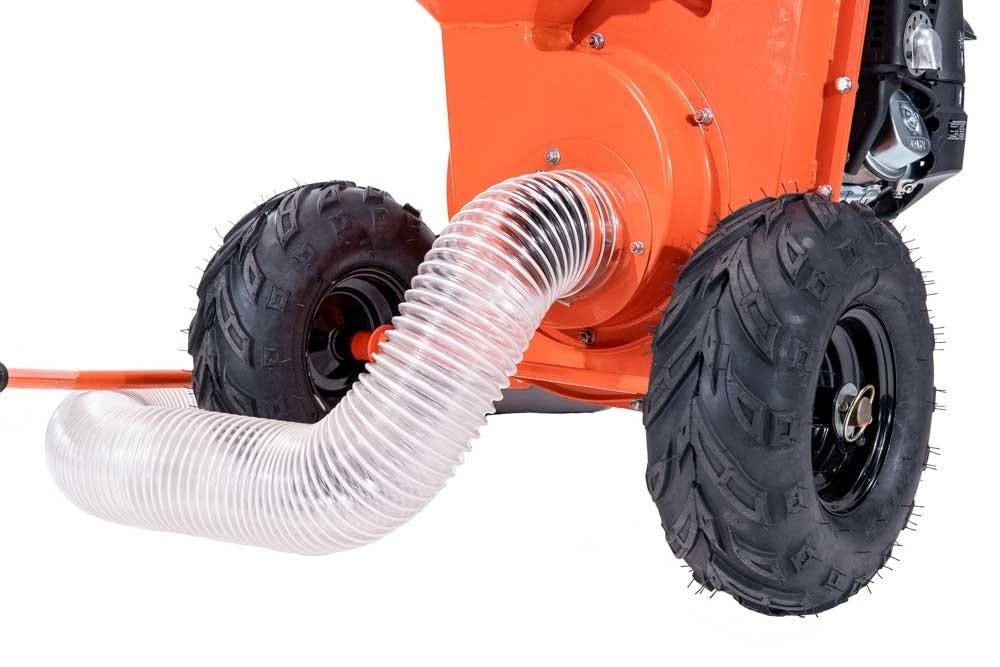

▪ Vacuum Kit Included — Vacuums leaves and garden mulch directly into the machine — no bending over to pick up debris by hand

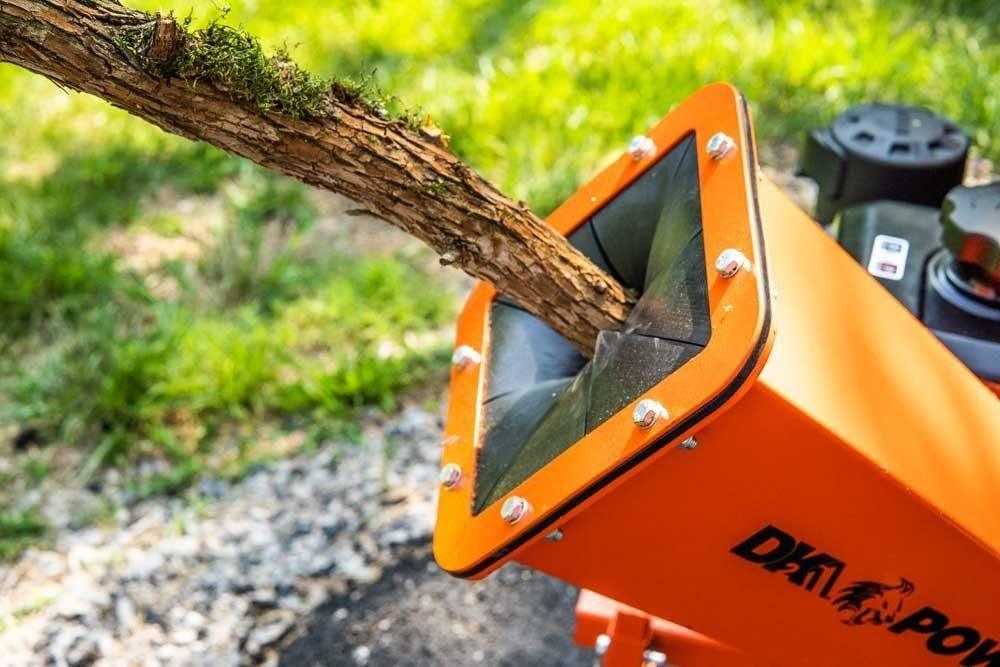

▪ 3-Inch Branch Capacity — Chips branches and woody material up to 3 inches in diameter through the side feed chute
▪ Quad Hammer Shredders — Four hammer shredders process vacuumed and hopper-fed material more aggressively than standard configurations

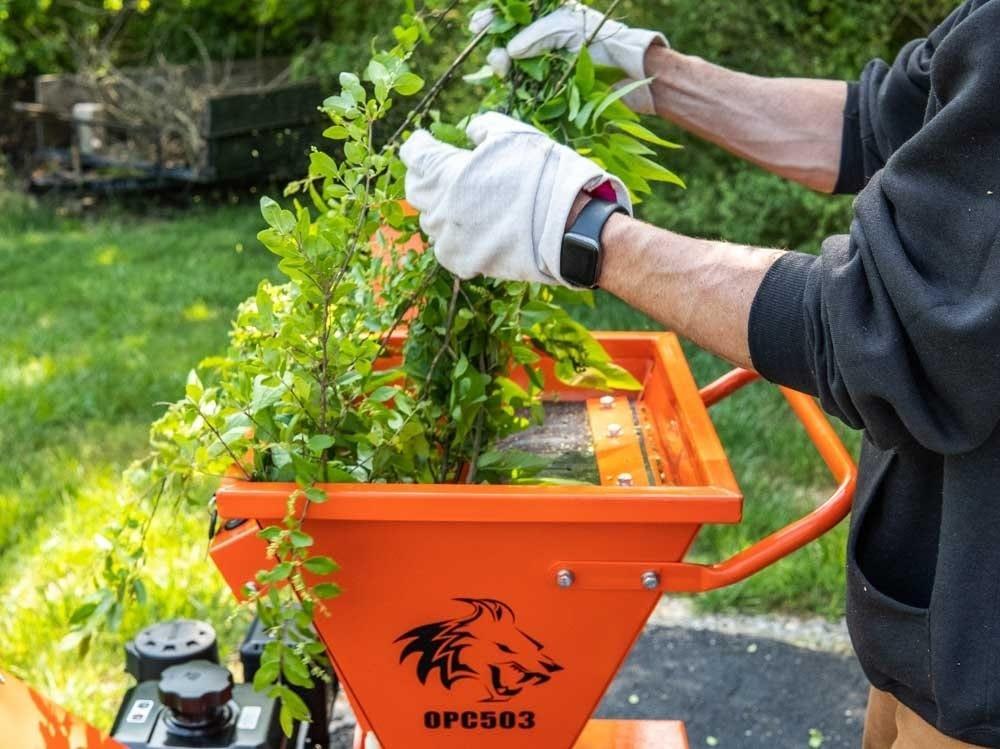

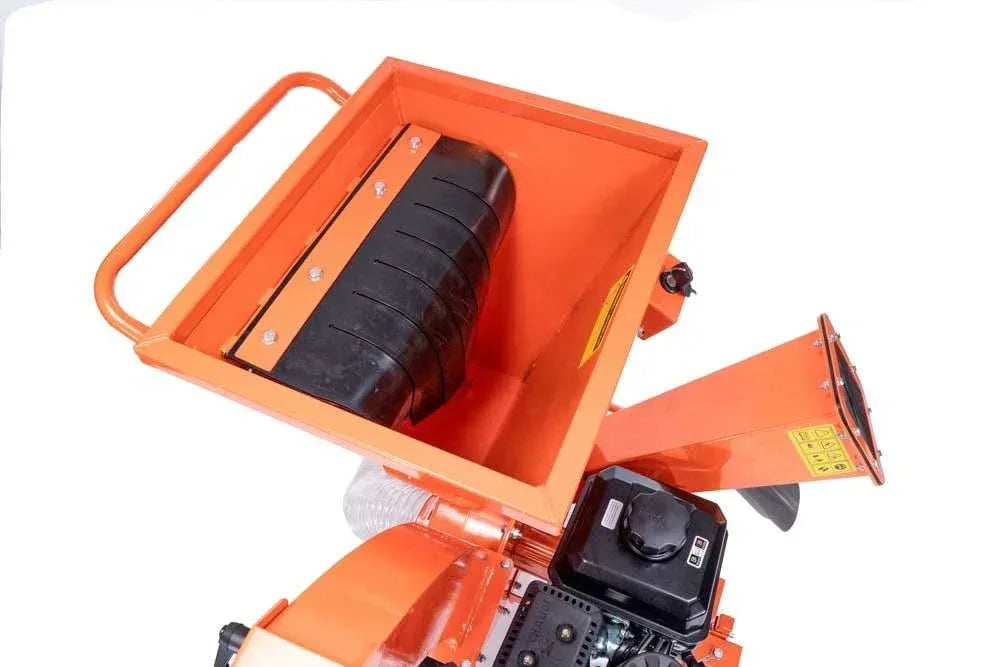

▪ Top-Loading Hopper — Processes brush and lighter debris up to 3/8 inch through the top-loading hopper
▪ Three-Function Design — Chip, shred, and vacuum in one compact towable machine

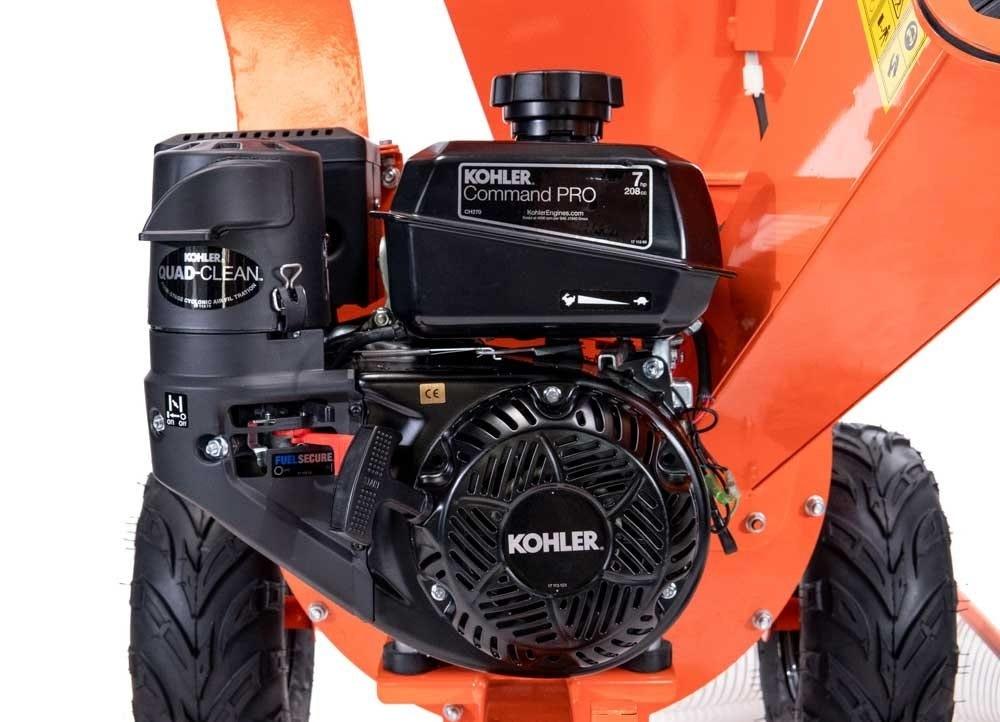

▪ 7HP Kohler Command PRO CH270 Engine — 208CC engine with 10.7 ft/lb maximum torque for reliable residential and professional use
▪ Removable Key Shutoff — Added security — pull the key and the machine cannot be started without it
▪ Extra-Large Feed Chutes — Handles a steady stream of material for continuous operation

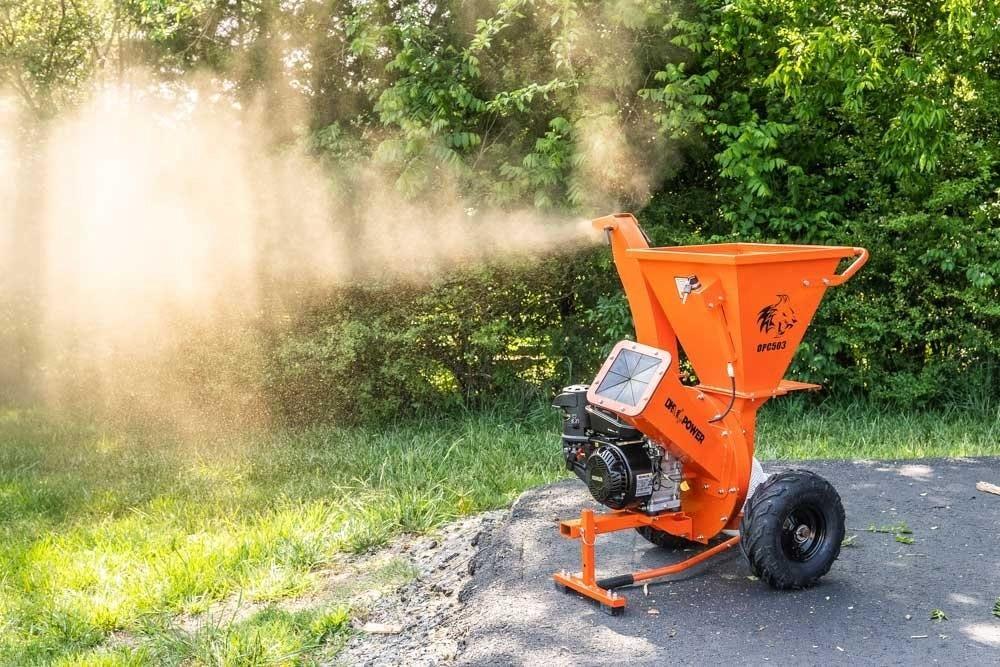

▪ Vertically Adjustable Expulsion Chute — Direct chips and shredded material where you need them
▪ ATV-Locking Wheels with Drop Stand — Stable during operation with easy setup and property movement
▪ Removable Tow Bar with 2-Inch Ball Coupler — Off-road only, max 15 MPH
▪ EPA Phase III & CARB Phase III Certified — Compliant in all 50 states including California
▪ 3-Year Kohler Engine Warranty — Kohler's own 3-year warranty backs the engine on top of the 1-year chassis warranty
Technical Specifications
| Specification |
Detail |
| Brand |
DK2 |
| Engine |
Kohler Command PRO CH270, 7HP, 208CC |
| Max Engine Torque |
10.7 ft/lb (14.5 Nm) |
| Max Feed Chute Capacity |
3 in. diameter |
| Max Hopper Capacity |
3/8 in. diameter |
| Cutting System |
Double-Edge Blades & Quad Hammer Shredders |
| Expulsion Chute |
Vertically Adjustable Deflection |
| Handle Height |
48 in. |
| Tires |
145/70-6, 13.75 in. O.D. |
| Wheelbase |
28 in. |
| Coupler |
2 in. Ball |
| Max Speed |
15 MPH — Off-Road Only |
| Material |
Steel, UV Powder-Coated |
| Color |
Black & Orange |
| Certifications |
EPA Phase III, CARB Phase III |
| Assembled Dimensions (L x W x H) |
63 x 32 x 43 in. |
| Assembled Weight |
170 lbs (77.1 kg) |
| Engine Warranty |
3-Year Kohler |
| Chassis Warranty |
1-Year Limited DK2 |
What's Included
▪ DK2 OPC503V Towable Chipper Shredder Vacuum (fully assembled) ▪ Vacuum kit ▪ Removable tow bar with drop stand ▪ Operator Manual
Want a compact yard waste machine that chips, shreds, and vacuums in one package? The DK2 OPC503V does all three — backed by a 3-year Kohler engine warranty and 1-year chassis warranty. Add it to your equipment today.
