Product Description
Maximum force, maximum flexibility. The Ram Splitters 3PT30HV is the most capable 3-point tractor wood splitter in the Ram Splitters lineup — 30 tons of ram force with the ability to split both horizontally and vertically, all running off your tractor's existing hydraulic system.

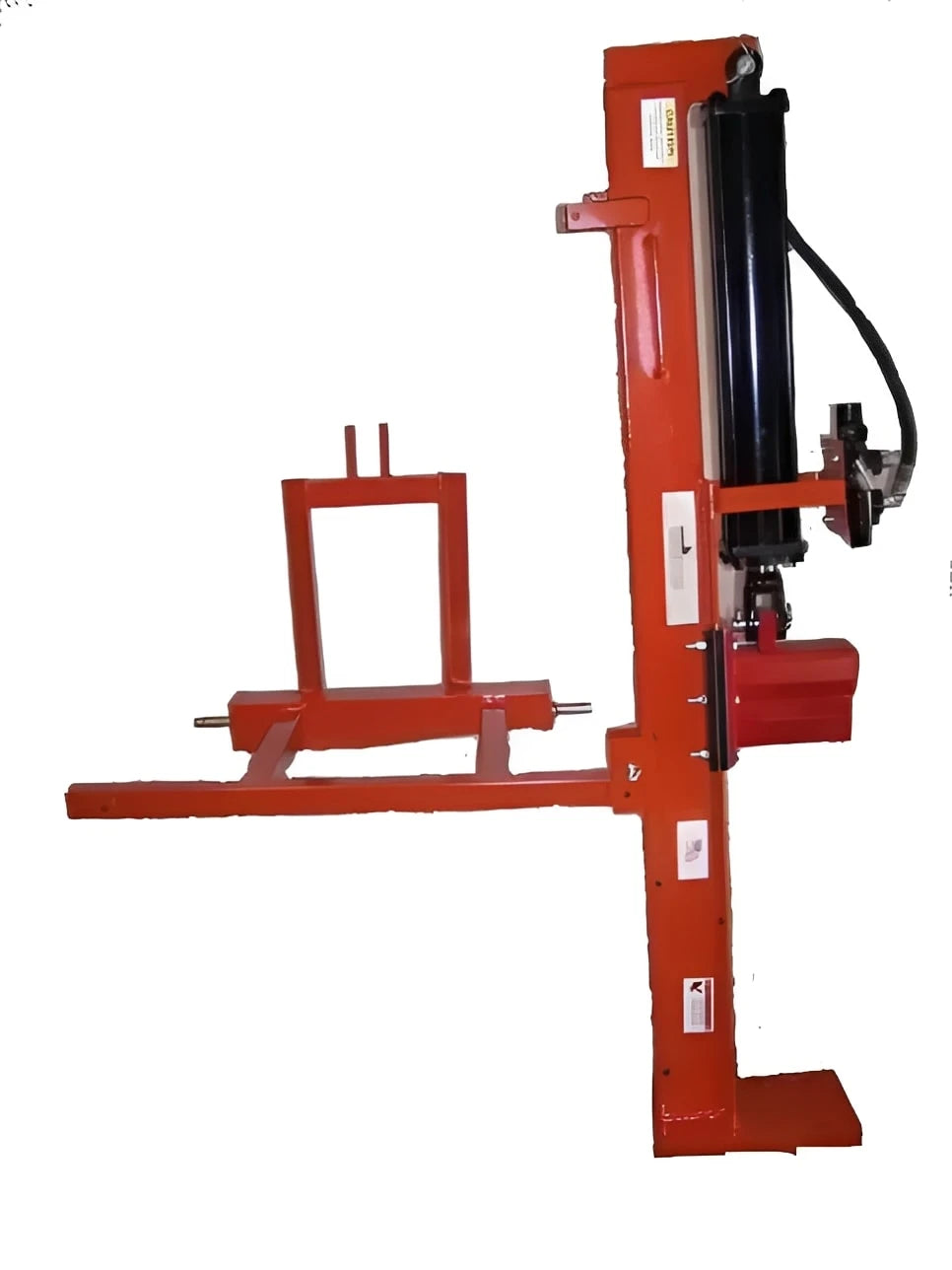

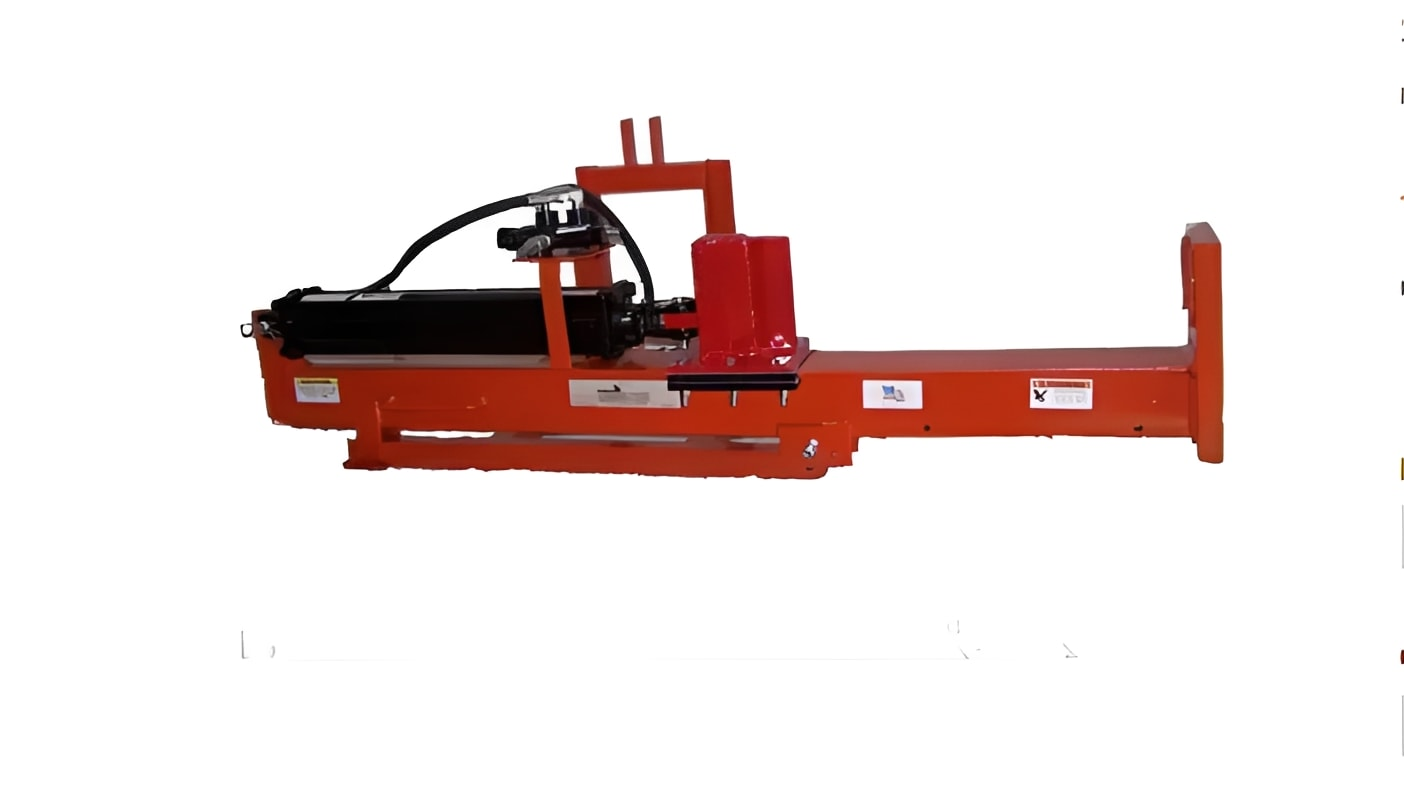

Work horizontally for standard firewood logs on the beam, or switch to vertical to split large rounds directly on the ground without lifting them. The included log cradle keeps everything stable during splitting and the 8-inch hardened steel wedge delivers clean, consistent splits on logs up to 40 inches in diameter and 25 inches long. A slip-on 4-way wedge is available when you need to push production faster.
Compatible with Cat 1 and Cat 2 three-point hitch systems right out of the box — no adapters, no modifications needed. At 525 lbs it is solid and stable during splitting and still compact enough to store easily when the job is done.
If you want the most powerful and versatile 3-point tractor log splitter available — horizontal and vertical, 30-ton force, no separate engine — the 3PT30HV is it.
Ideal For: Farmers, ranchers, firewood producers, and property owners who already run a tractor and need the most powerful and flexible 3-point log splitter available for dense hardwood, large diameter logs, and high-volume splitting in any position.
Key Features
▪ 30-Ton Ram Force — The most powerful 3-point tractor splitter in the Ram Splitters lineup — handles the toughest hardwood without hesitation
▪ Horizontal & Vertical Operation — Split standard logs on the beam horizontally or large rounds on the ground vertically — maximum flexibility for any splitting task
▪ 5 x 24-Inch Cylinder — Heavy-duty welded cylinder delivers serious, consistent splitting force on every stroke
▪ 3-Point Tractor Mount — Attaches directly to Cat 1 or Cat 2 tractor three-point hitch — uses your tractor's existing hydraulic system
▪ Log Cradle Included — Keeps logs stable and in position during splitting so nothing shifts mid-stroke
▪ Slip-On 4-Way Wedge Available — Optional upgrade for splitting logs into 4 pieces per pass for faster production
▪ Cat 1 & Cat 2 Compatible — Fits a wide range of tractors right out of the box with no adapters needed
▪ 8-Inch Hardened Steel Wedge — Clean, consistent splits on every stroke across a wide range of log sizes
▪ No Engine Needed — Runs entirely off your tractor's hydraulics — no fuel, no maintenance, no extra costs
▪ Compact Design — At 60 x 36 x 24 inches, easy to store and attach despite delivering 30-ton splitting force

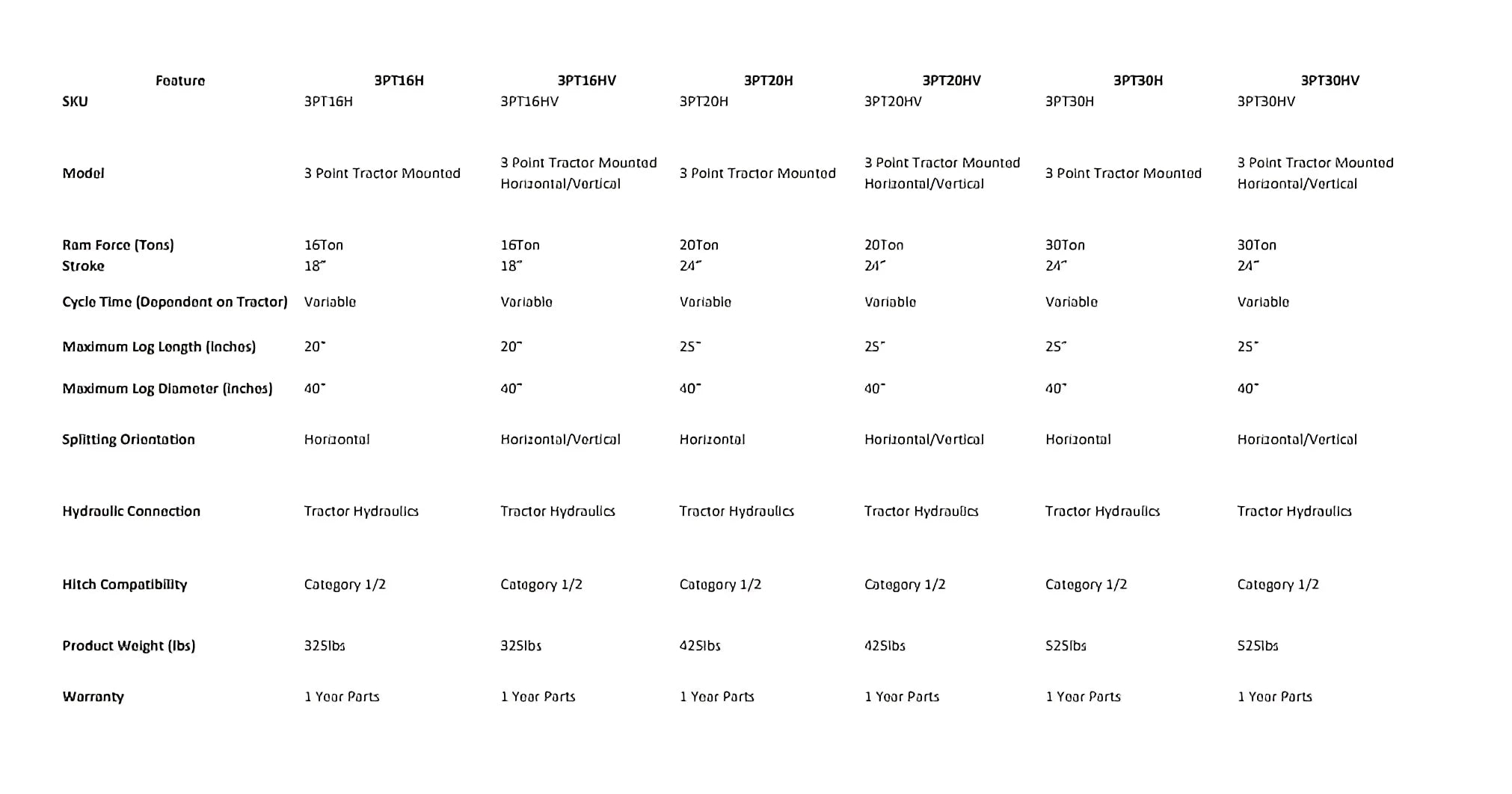

Technical Specifications
| Specification |
Detail |
| Model |
3PT30HV |
| Splitting Force |
30 Ton |
| Stroke |
24 in. |
| Cycle Time |
Reliant on Tractor |
| Max Log Length |
25 in. |
| Max Log Diameter |
40 in. |
| Operation |
Horizontal & Vertical |
| Wedge |
Single + Slip-On 4-Way Available |
| Wedge Type |
Hardened Steel |
| Wedge Height |
8 in. |
| Beam Type |
Tube Steel |
| Hitch Style |
Cat 1 / Cat 2 |
| Cylinder |
Welded 5 x 24 in. with 2 in. Rod |
| Hoses |
Wire Hydraulic |
| Log Cradle |
Yes, Included |
| Product Weight |
525 lbs. |
| Dimensions (L x W x H) |
60 x 36 x 24 in. |
What's Included
▪ Ram Splitters 3PT30HV 3-Point Log Splitter (fully assembled) ▪ Log cradle ▪ Cat 1 / Cat 2 hitch pins ▪ Wire hydraulic hoses ▪ Operator Manual
Note: Slip-on 4-way wedge is available as an optional add-on.
