Product Description
More force, longer stroke, and the flexibility to split both ways. The Ram Splitters 3PT20HV is a step up from the 3PT16HV — 20 tons of ram force, a 24-inch stroke, and horizontal and vertical operation, all running off your tractor's existing hydraulic system.

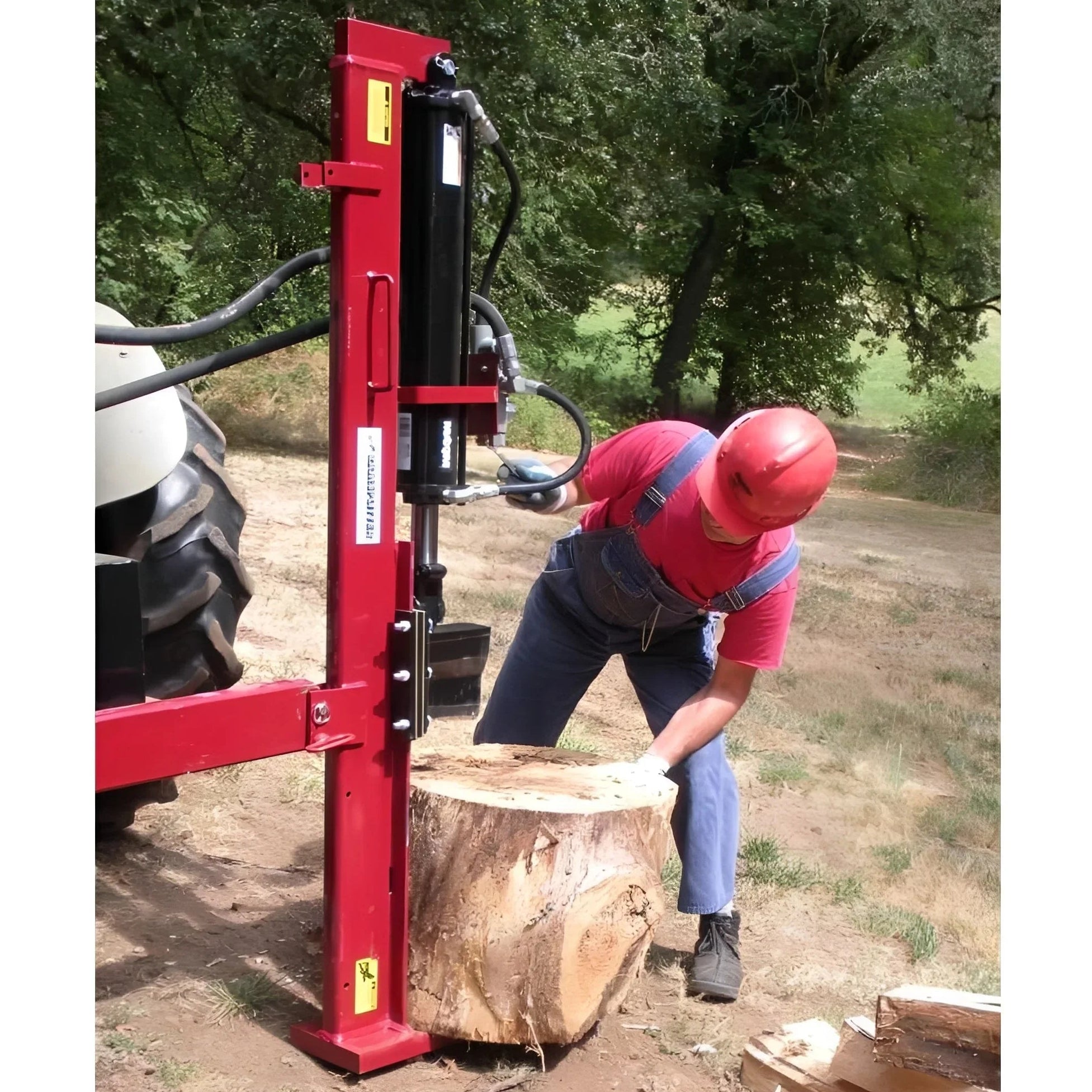

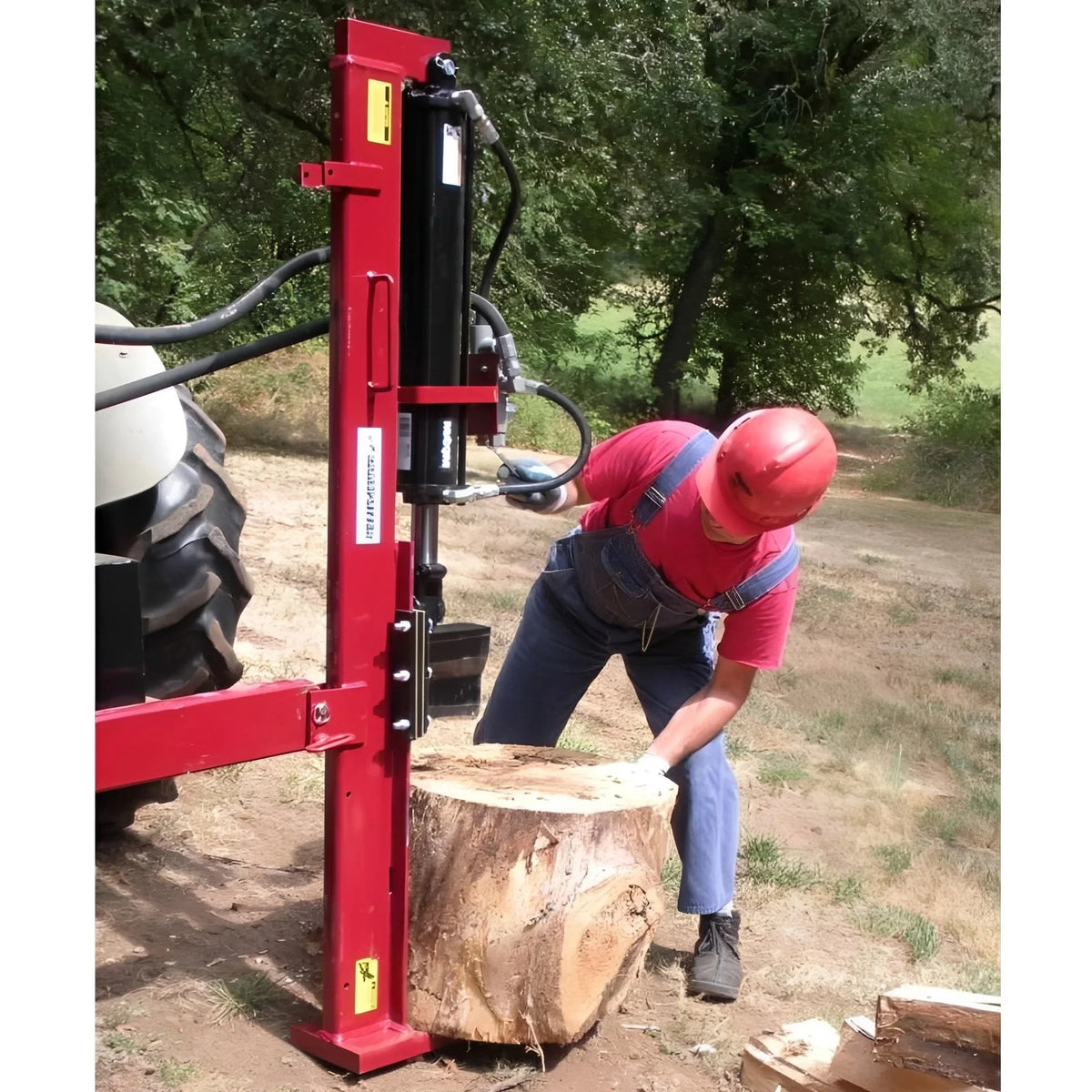

Handle logs up to 40 inches in diameter and 25 inches long in horizontal mode for standard firewood, or switch to vertical to split large rounds directly on the ground without lifting them onto the beam. The included log cradle keeps everything stable during splitting and the 8-inch hardened steel wedge delivers clean, consistent splits every pass.
Compatible with Cat 1 and Cat 2 three-point hitch systems right out of the box — fits most compact and mid-size tractors without adapters. At 425 lbs it is compact enough to store easily and attach quickly when the job is done.
If you need more force and a longer stroke than the 3PT16HV and want horizontal and vertical flexibility in a 3-point tractor wood splitter, the 3PT20HV is the right choice.
Ideal For: Farmers, ranchers, property owners, and firewood producers who already run a tractor and need a more powerful horizontal and vertical log splitter attachment that handles longer logs and tougher hardwood without a separate engine.
Key Features
▪ 20-Ton Ram Force — More splitting power than the 3PT16HV — handles tougher hardwood and larger diameter logs with ease

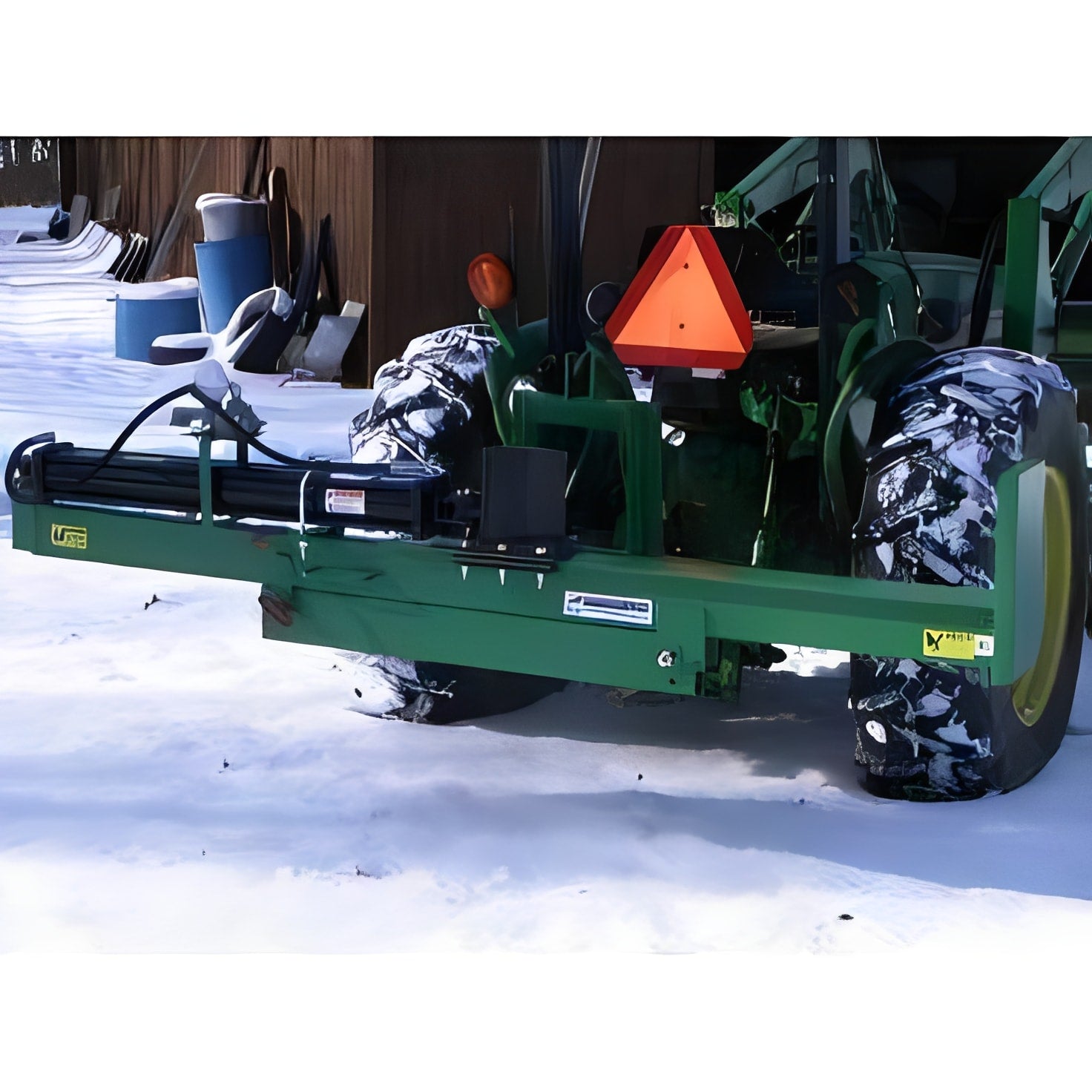

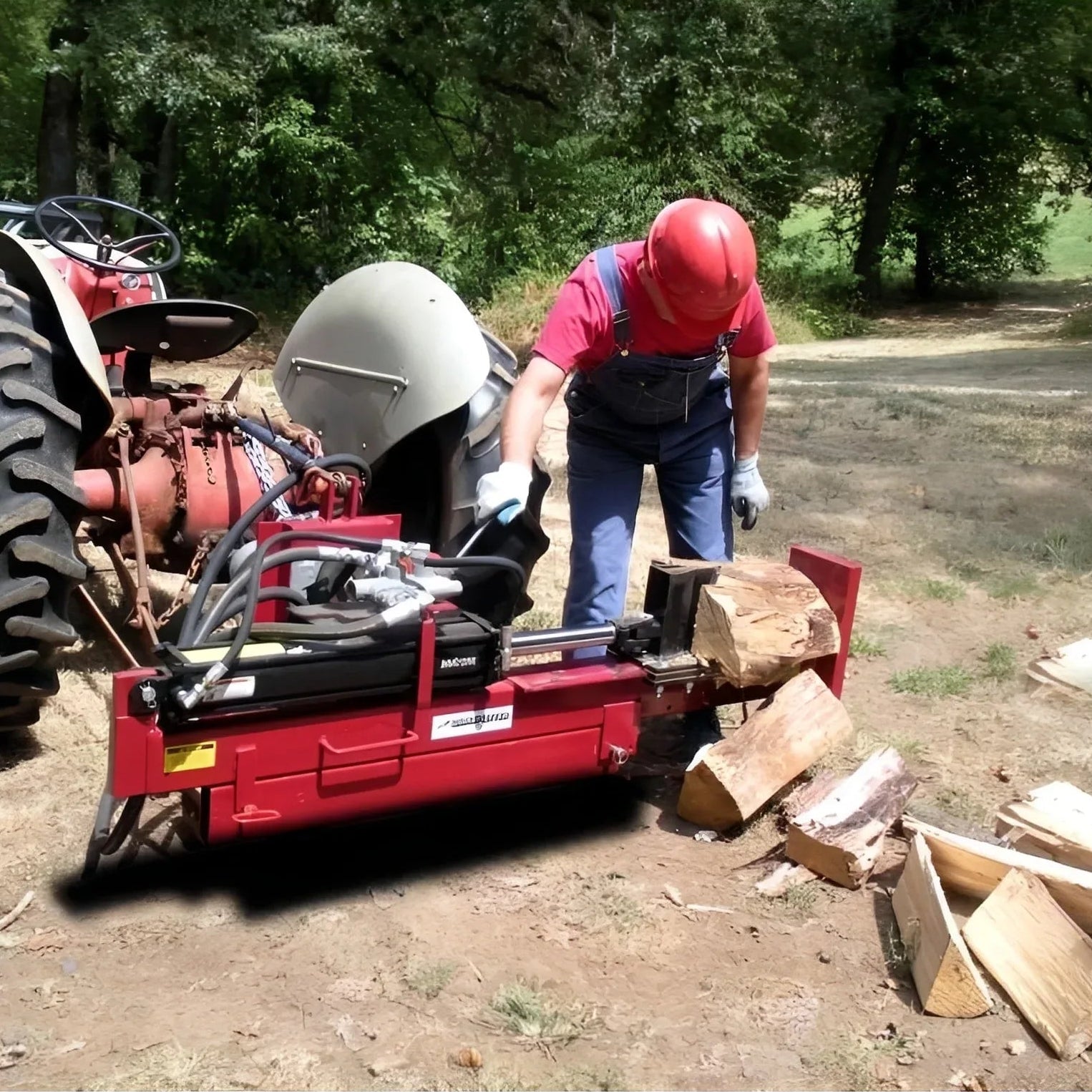

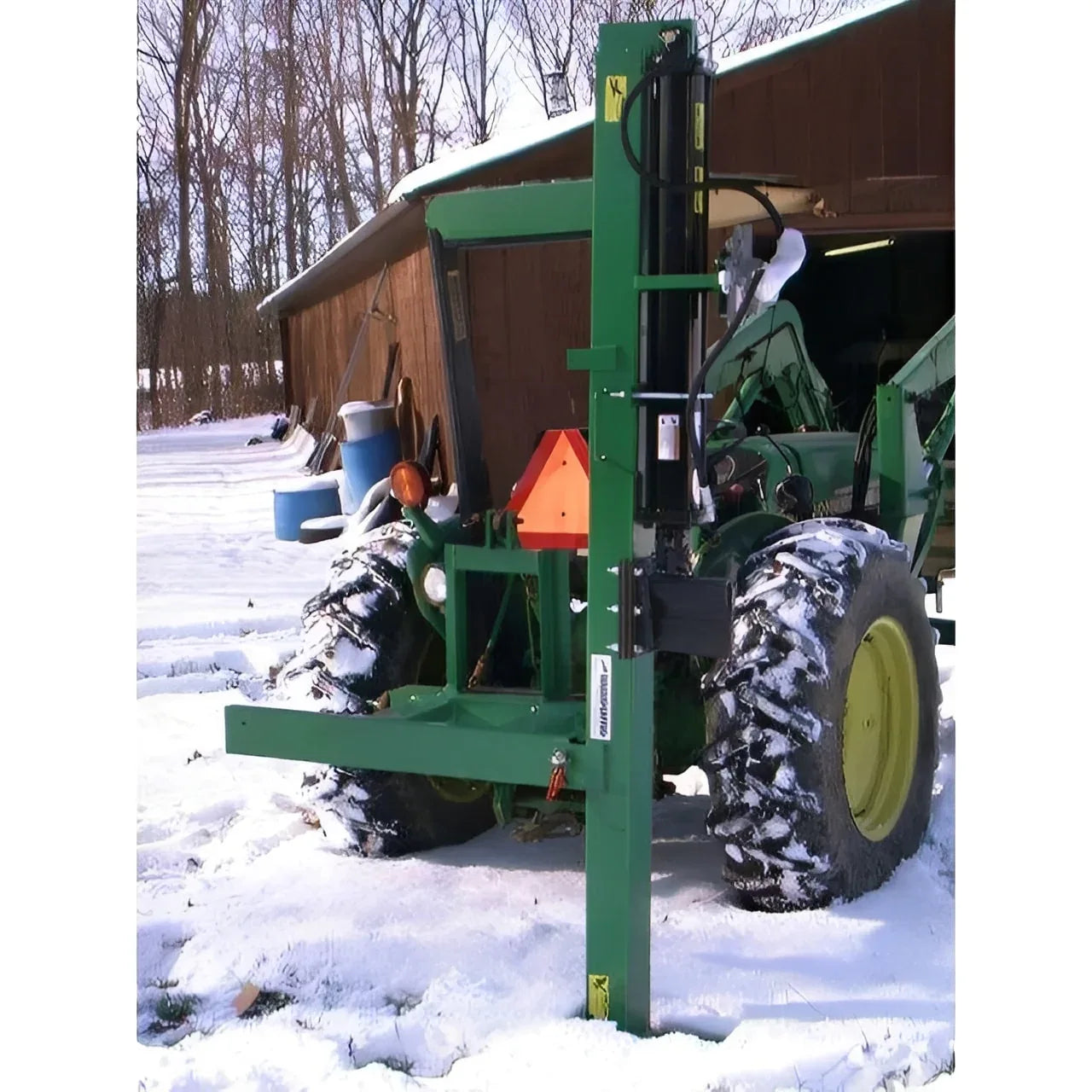

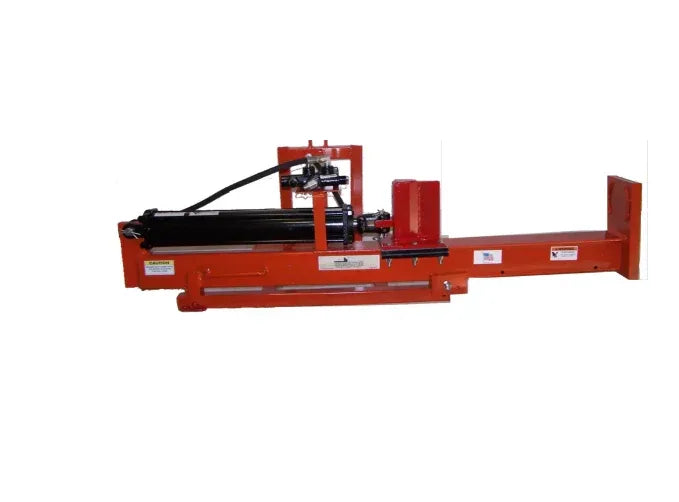

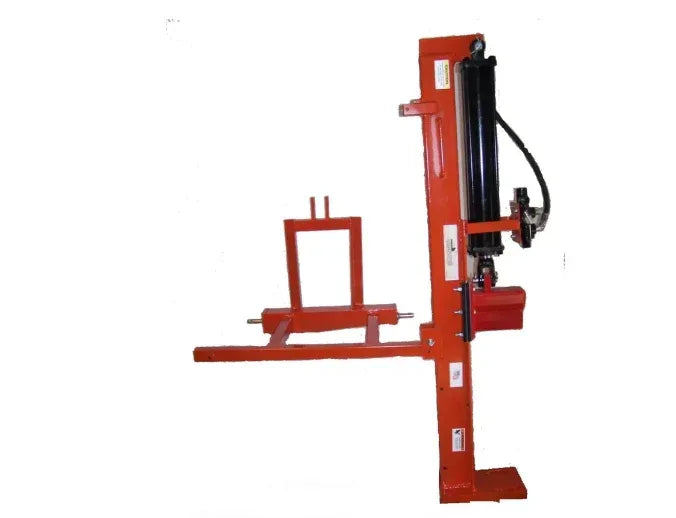

▪ Horizontal & Vertical Operation — Split standard logs on the beam horizontally or large rounds on the ground vertically — maximum flexibility
▪ 24-Inch Stroke — Longer stroke than the 3PT16HV — handles logs up to 25 inches long
▪ 3-Point Tractor Mount — Attaches directly to Cat 1 or Cat 2 tractor three-point hitch — uses your tractor's existing hydraulic system
▪ Log Cradle Included — Keeps logs stable and in position during splitting so nothing shifts mid-stroke
▪ Slip-On 4-Way Wedge Available — Optional upgrade for splitting logs into 4 pieces per pass for faster production
▪ Cat 1 & Cat 2 Compatible — Fits a wide range of tractors right out of the box with no adapters needed
▪ 8-Inch Hardened Steel Wedge — Taller than the 3PT16HV wedge for cleaner, more complete splits on larger logs
▪ No Engine Needed — Runs entirely off your tractor's hydraulics — no fuel, no maintenance, no extra costs
▪ Compact & Lightweight — At 425 lbs and 60 x 36 x 24 inches, easy to store and attach when needed

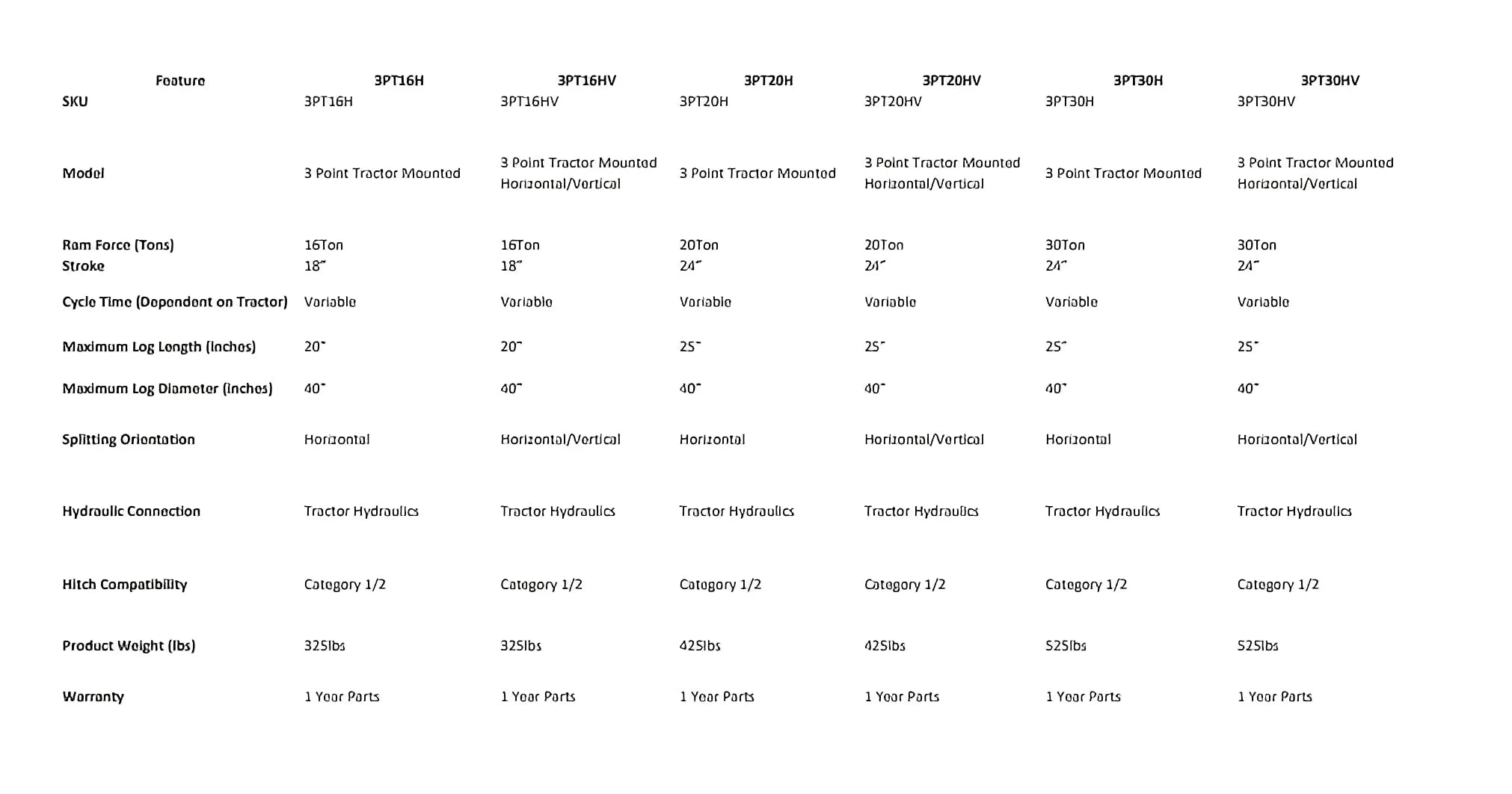

Technical Specifications
| Specification |
Detail |
| Model |
3PT20HV |
| Splitting Force |
20 Ton |
| Stroke |
24 in. |
| Cycle Time |
Reliant on Tractor |
| Max Log Length |
25 in. |
| Max Log Diameter |
40 in. |
| Operation |
Horizontal & Vertical |
| Wedge |
Single + Slip-On 4-Way Available |
| Wedge Type |
Hardened Steel |
| Wedge Height |
8 in. |
| Beam Type |
Tube Steel |
| Hitch Style |
Cat 1 / Cat 2 |
| Cylinder |
Welded 4 x 24 in. with 1.75 in. Rod |
| Hoses |
Wire Hydraulic |
| Log Cradle |
Yes, Included |
| Product Weight |
425 lbs. |
| Dimensions (L x W x H) |
60 x 36 x 24 in. |
What's Included
▪ Ram Splitters 3PT20HV 3-Point Log Splitter (fully assembled) ▪ Log cradle ▪ Cat 1 / Cat 2 hitch pins ▪ Wire hydraulic hoses ▪ Operator Manual
Need more force and a longer stroke than the 3PT16HV with full horizontal and vertical flexibility? The Ram Splitters 3PT20HV handles tougher logs and longer rounds using your tractor's hydraulic. Add it to your equipment today.
