Product Description

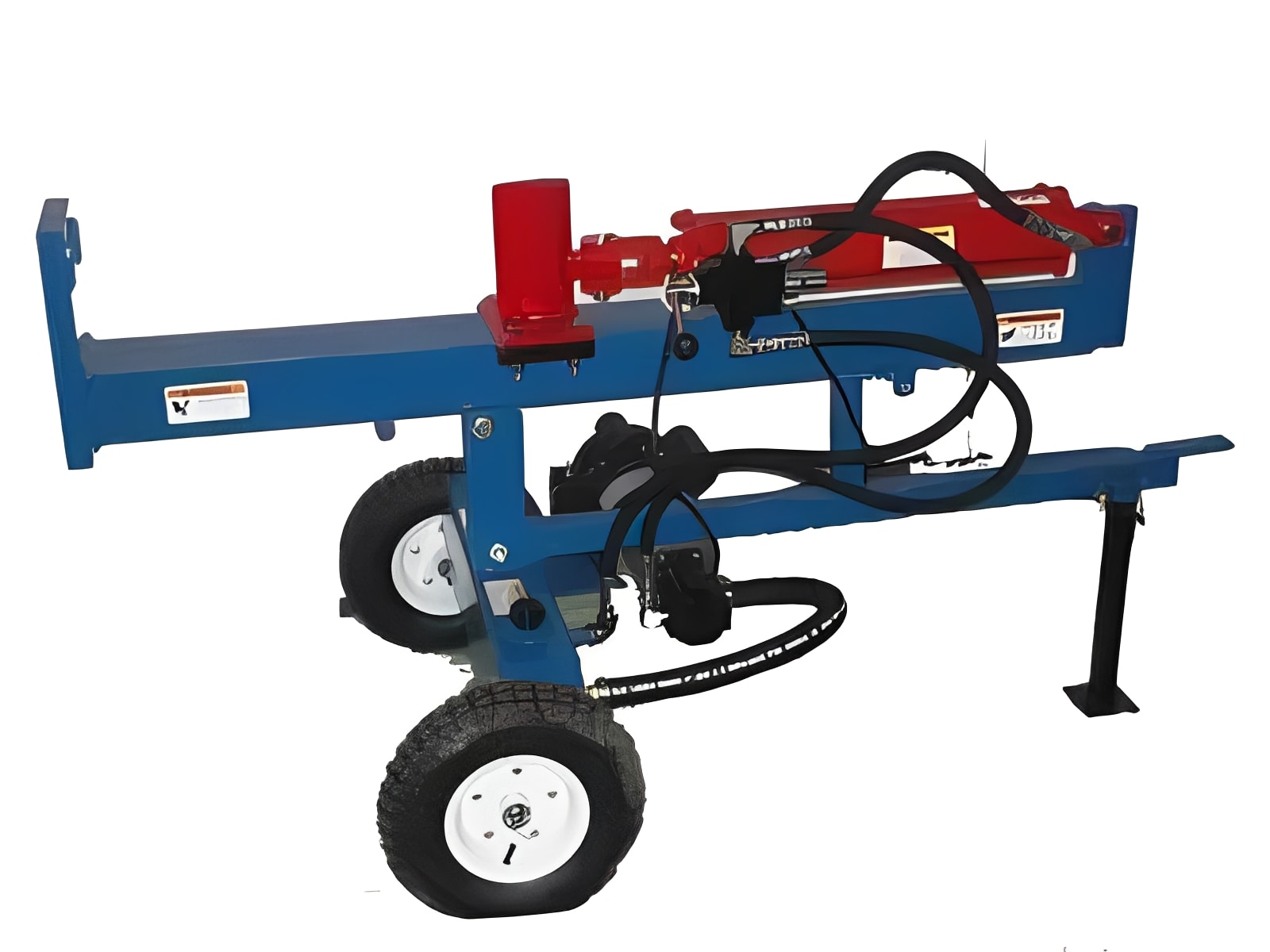

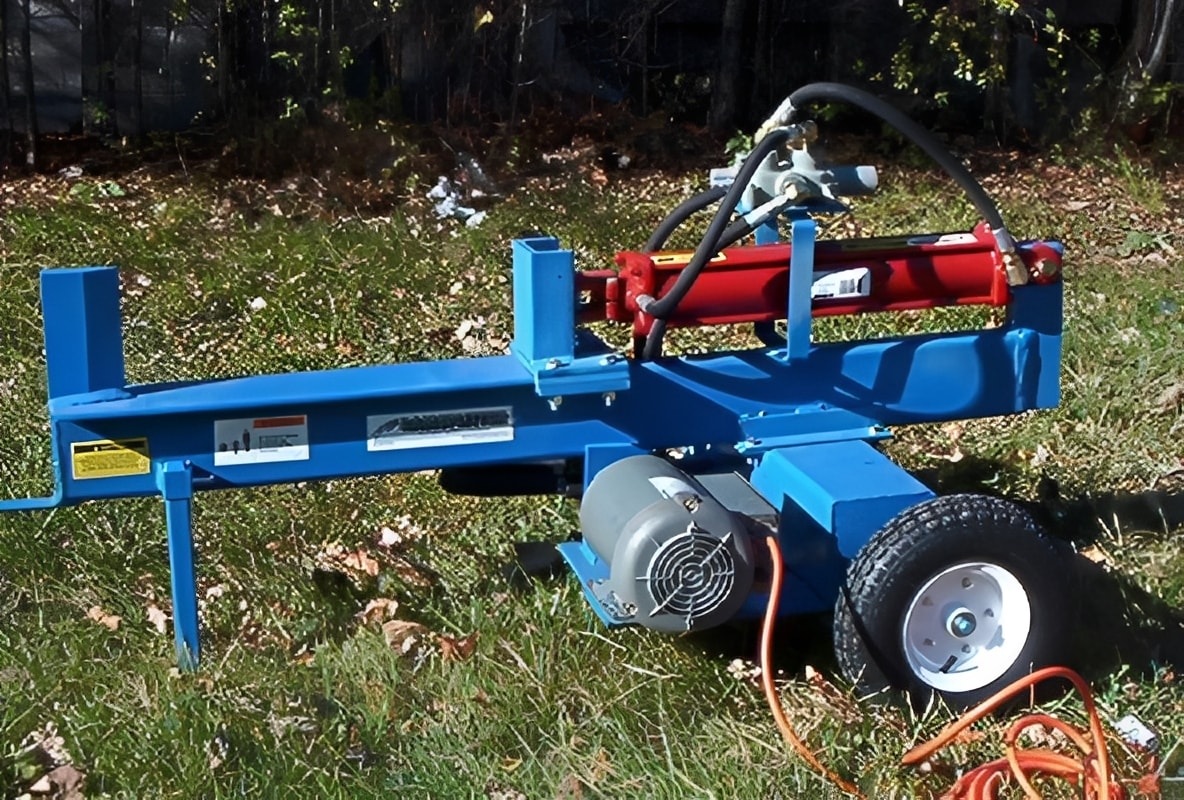

No gas, no fumes, no pull-start frustration. The Ram Splitters HV16-4 is a 16-ton electric horizontal and vertical wood splitter built for homeowners and small-scale firewood producers who want reliable splitting power without the noise and maintenance of a gas engine.
Plug it in, flip the switch, and split. The 1.5HP electric motor runs quietly and efficiently through a 12-second cycle, handling logs up to 40 inches in diameter and 20 inches long in both horizontal and vertical positions. Split standard firewood on the beam horizontally or drop large rounds on the ground and split vertically — no lifting heavy logs onto the beam needed.
The included log cradle keeps rounds stable during splitting, the slip-on 4-way wedge splits 4 pieces per pass when you need to move faster, and the cover protects the unit when not in use. The 11 GPM two-stage pump and 2-spool valve keep the hydraulic system smooth and consistent through every session.
At 350 lbs with 13-inch pneumatic tires and a garden tractor pin hitch, it tows easily behind a garden tractor at up to 35 MPH — move it around your property or to a neighbor's without any hassle.
Ideal For: Homeowners, hobby farmers, and small property owners who want a quiet, clean, low-maintenance electric wood splitter with horizontal and vertical capability for seasonal firewood production.
Key Features
▪ 1.5HP Electric Motor — Quiet, clean, and low maintenance — no gas, no fumes, no pull-start needed

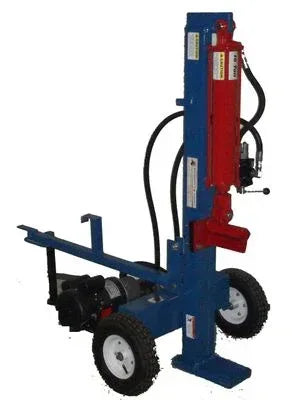

▪ Horizontal & Vertical Operation — Split standard logs on the beam or large rounds on the ground — no heavy lifting needed
▪ 16-Ton Ram Force — Handles logs up to 40 inches in diameter including standard hardwood firewood rounds
▪ 12-Second Cycle Time — Fast enough for residential and small-scale firewood production

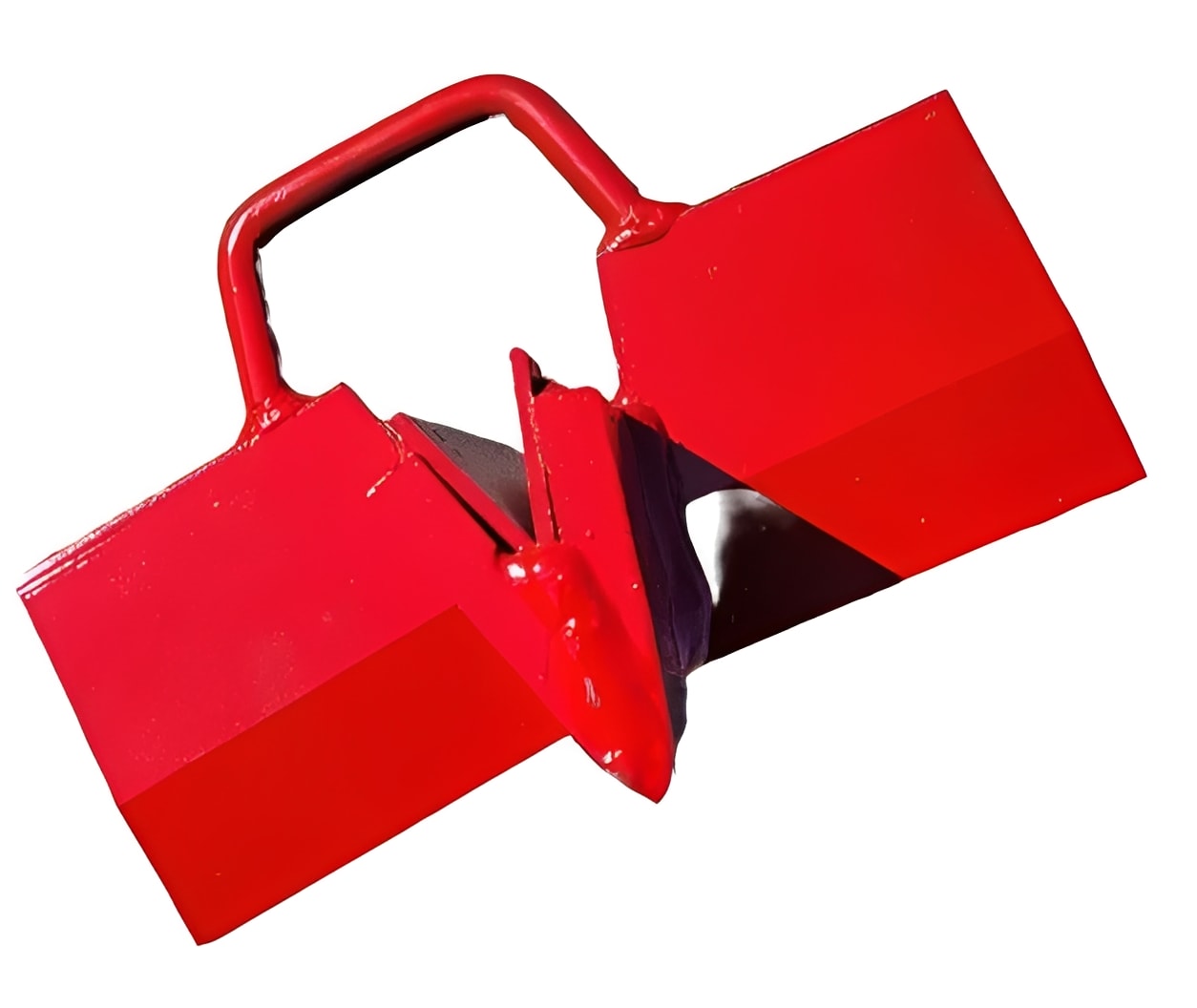

▪ Slip-On 4-Way Wedge Included — Split logs into 4 pieces per pass for faster firewood production
▪ Log Cradle Included — Keeps logs stable and in position during splitting so nothing shifts mid-stroke
▪ Cover Included — Protects the unit from the elements when not in use

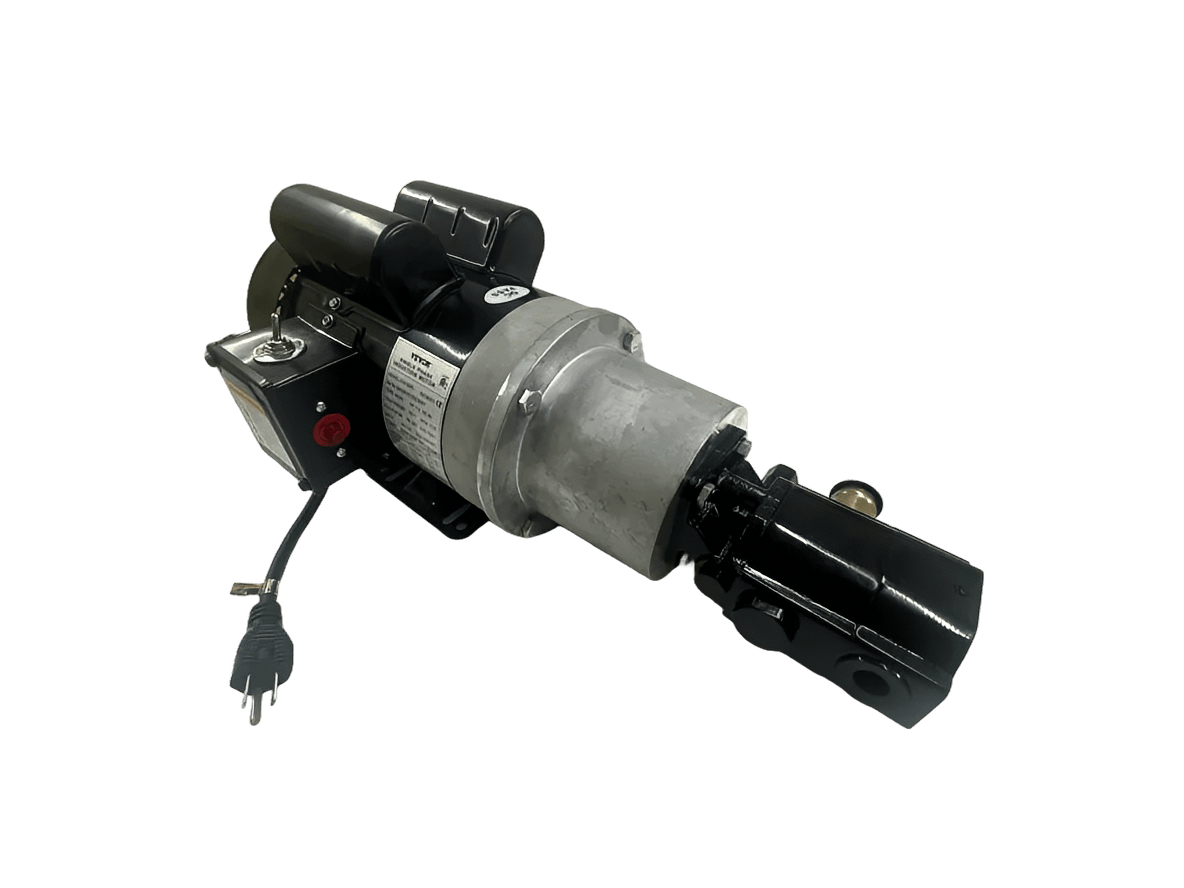

▪ 11 GPM Two-Stage Hydraulic Pump — Smooth, consistent hydraulic performance through every splitting session
▪ 3-Year Electric Motor Warranty — Motor carries its own separate 3-year limited warranty on top of the standard 1-year parts coverage
▪ Garden Tractor Pin Hitch — Tows easily behind a garden tractor at up to 35 MPH for easy property movement
▪ 13-Inch Pneumatic Tires — Smooth rolling across yard and property surfaces
Technical Specifications
| Specification |
Detail |
| Model |
HV16-4 |
| Splitting Force |
16 Ton |
| Stroke |
18 in. |
| Cycle Time |
12 Seconds |
| Max Log Length |
20 in. |
| Max Log Diameter |
40 in. |
| Operation |
Horizontal & Vertical |
| Wedge |
Single + Slip-On 4-Way |
| Wedge Type |
Hardened Steel |
| Wedge Height |
8 in. |
| Beam Type |
Tube Steel |
| Beam Working Height |
24 in. |
| Motor |
1.5HP Electric, 1800 RPM |
| Starting System |
Electric Start |
| Motor Warranty |
3-Year Limited |
| Hydraulic Pump |
11 GPM Two-Stage |
| Hydraulic Valve |
2 Spool |
| Hydraulic Tank |
8 Gallons |
| Hydraulic Fluid |
32 Weight / ATF |
| Cylinder |
Welded 3.5 x 18 in. with 1.25 in. Rod |
| Hoses |
Wire Hydraulic |
| Trailer Hitch |
Garden Tractor Pin Hitch |
| Max Tow Speed |
35 MPH |
| Tires |
13 in. Pneumatic |
| Log Cradle |
Yes, Included |
| Cover |
Yes, Included |
| Product Weight |
350 lbs. |
| Dimensions (L x W x H) |
60 x 32 x 40 in. |
What's Included
▪ Ram Splitters HV16-4 Electric Log Splitter (fully assembled) ▪ Slip-on 4-way wedge ▪ Log cradle ▪ Cover ▪ Operator Manual
Want a quiet, clean electric wood splitter with horizontal and vertical capability for home use? The Ram Splitters HV16-4 handles 16-ton splitting without gas or fumes — backed by a free 1-year parts and labour warranty plus a 3-year motor warranty. Add it to your equipment today.
