Product Description

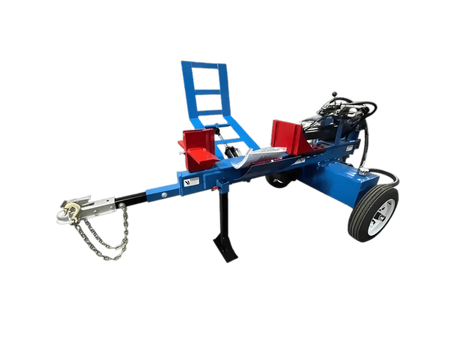

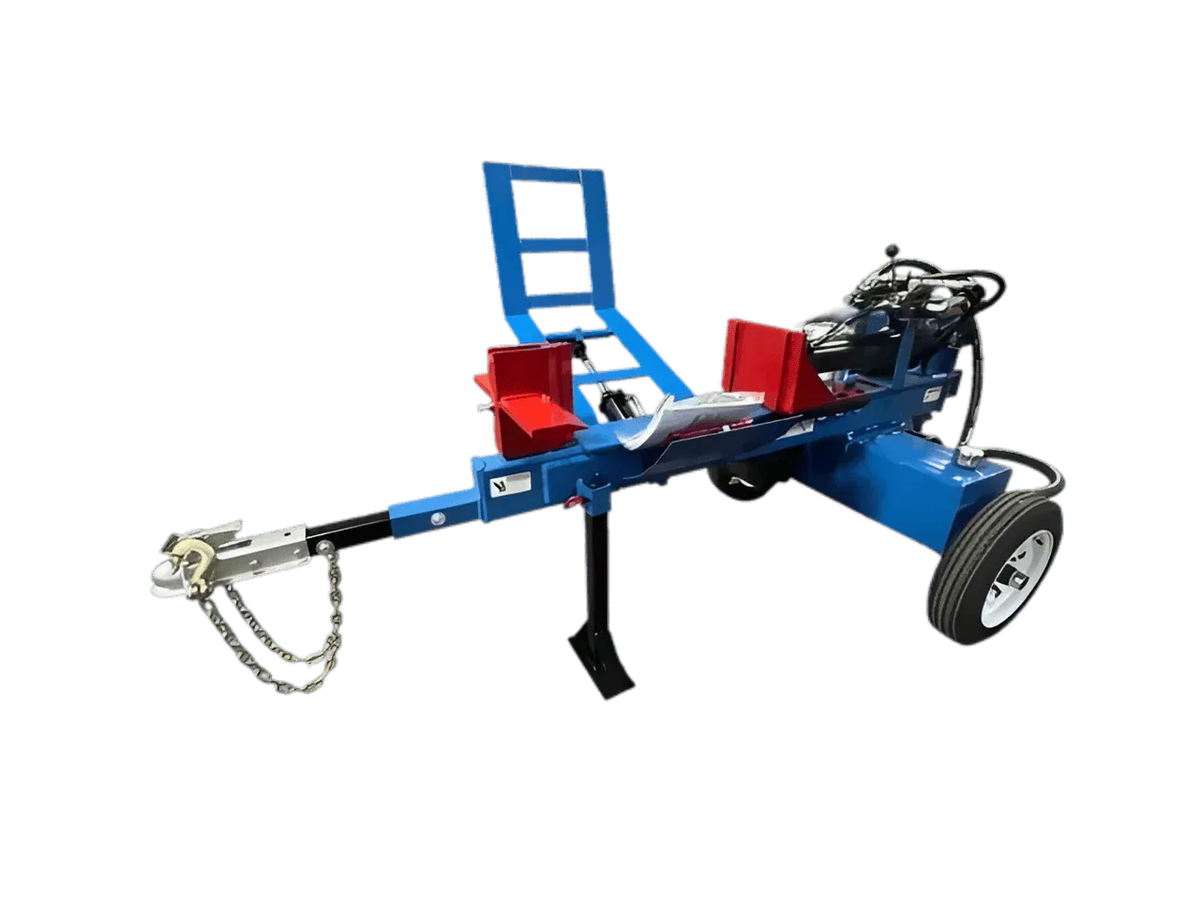

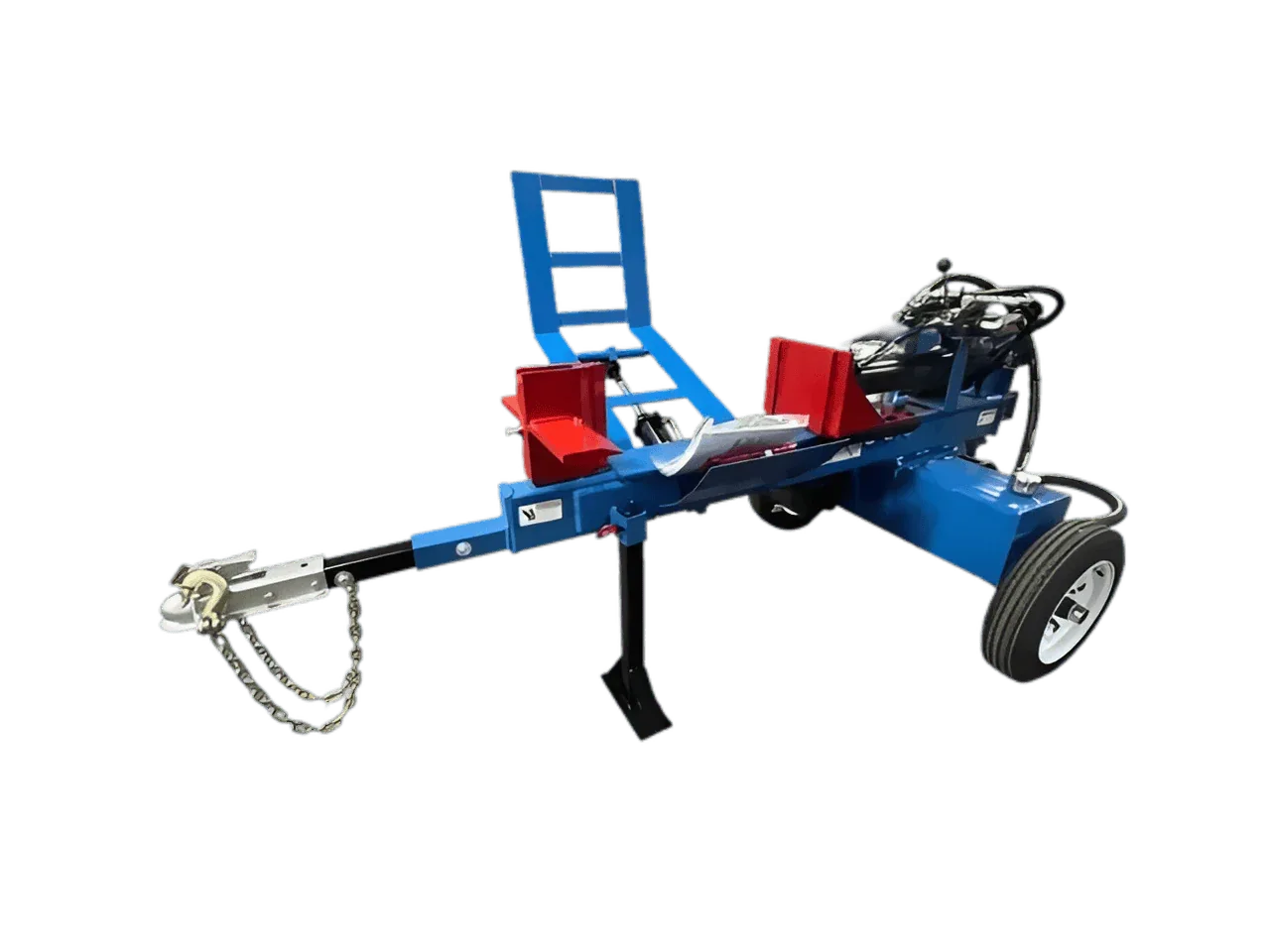

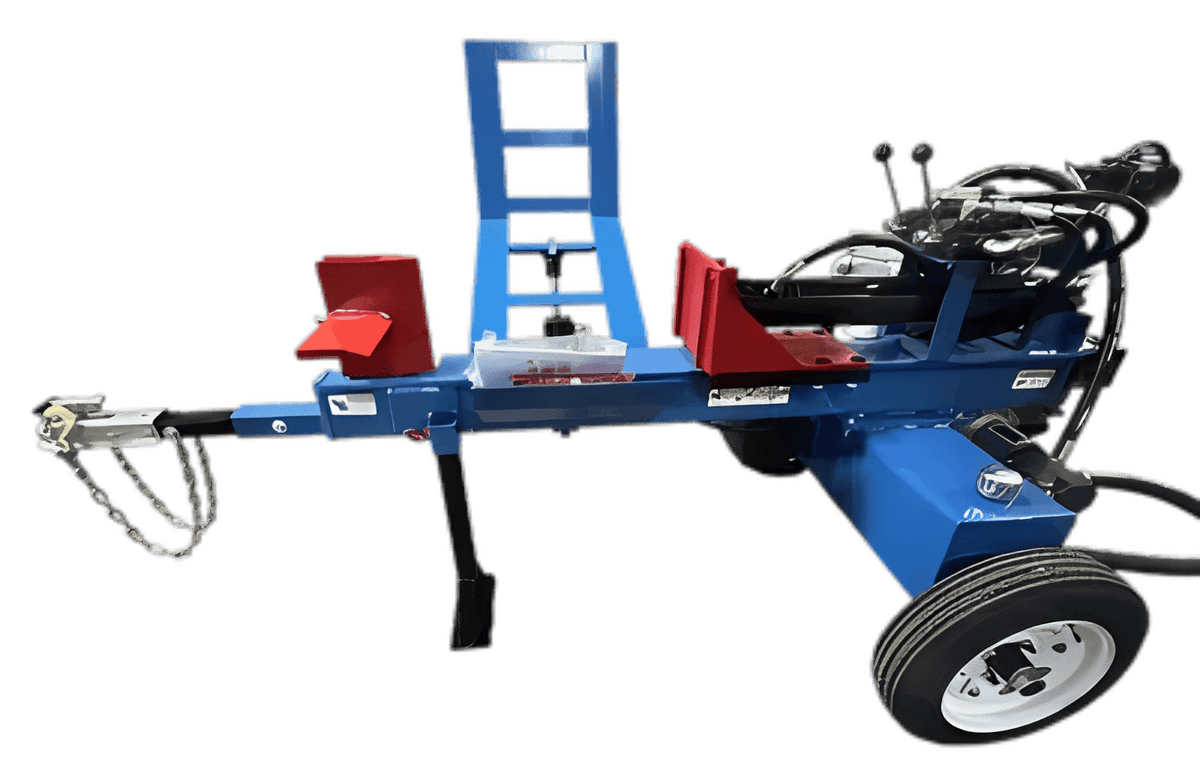

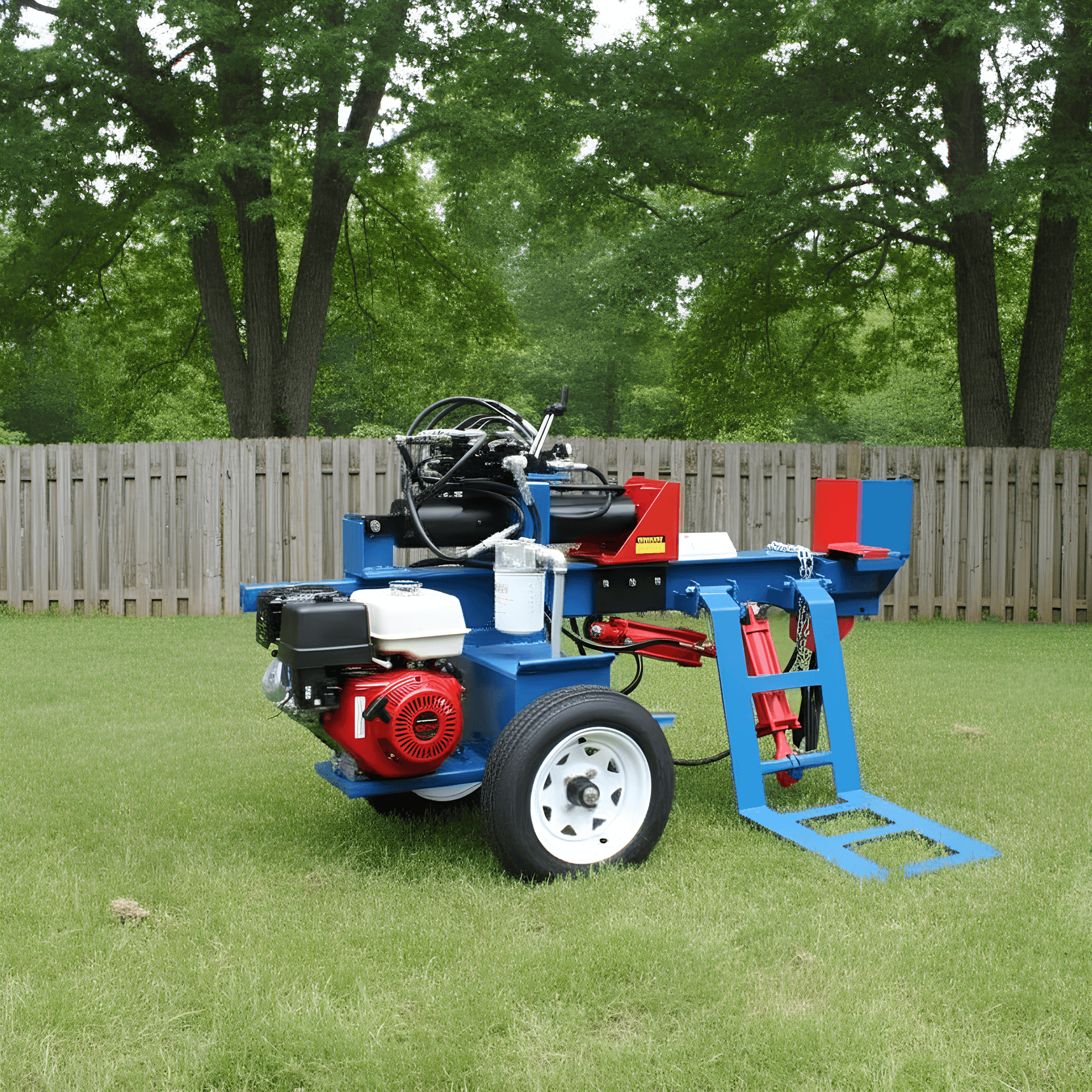

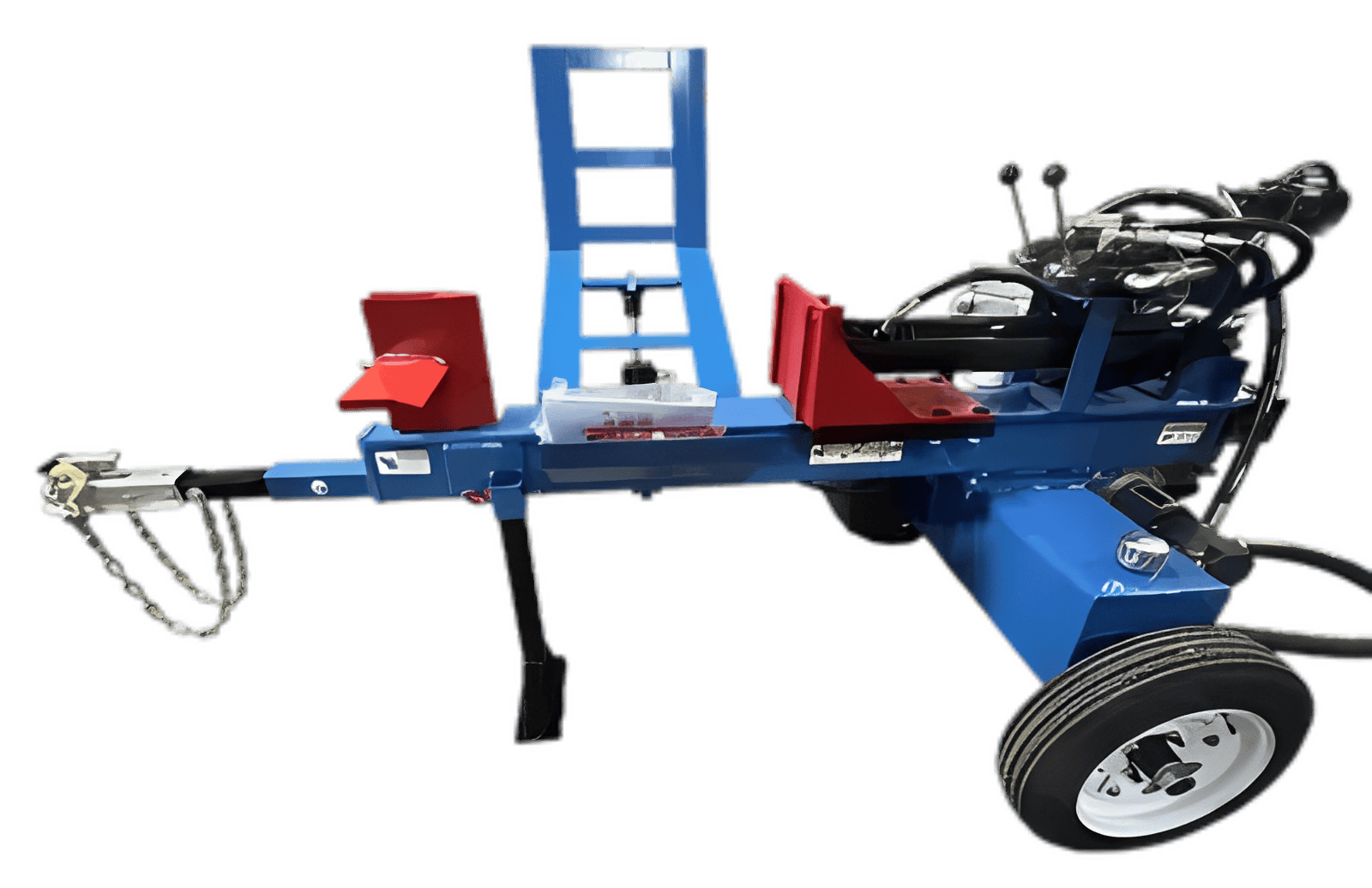

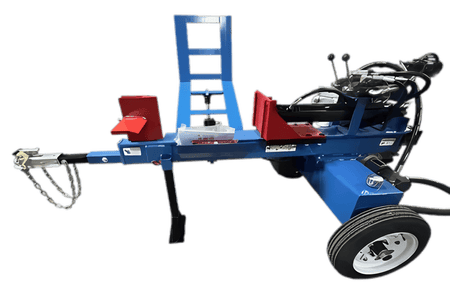

If you process a lot of firewood and need to move through a pile fast, the Ram Splitters HDFC Heavy Duty Fast Cycle Log Splitter is built for exactly that. The smaller 4-inch cylinder moves through each cycle quicker than a larger bore splitter — giving you a fast, consistent 8-second cycle that keeps your production moving without stopping.
With 30 tons of ram force and a 24-inch stroke, the HDFC handles logs up to 40 inches in diameter and 25 inches long — more than enough for standard hardwood firewood production. The hardened steel wedge splits clean every time, and the included slip-on 4-way wedge lets you split into 4 pieces per pass when you need to push through volume fast.
The included log lifter handles up to 500 lbs so heavy rounds go onto the beam without manual lifting, and the 32-inch beam working height keeps you comfortable through long splitting sessions. The log table keeps your workspace organized and the 22 GPM two-stage hydraulic pump with auto-return valve keeps the cycle smooth and consistent all day.
Road towable at 65 MPH with a 2-inch ball hitch and 12-inch tires — take it wherever the work is.
If you regularly split large diameter monster logs or extremely knotty hardwood, the HD34 with its larger 5-inch cylinder delivers more raw splitting force. But if you process standard firewood at high volume and want a faster, more affordable wood splitter that handles serious work, the HDFC is the right choice.
Ideal For: Firewood suppliers, farmers, ranchers, and property owners who process high volumes of standard hardwood firewood and need a fast, reliable, affordable heavy duty wood splitter that keeps up with serious production demands.
Key Features
▪ Fast Cycle Design — Smaller 4-inch cylinder moves through each cycle faster for higher volume firewood production
▪ 30-Ton Ram Force — Handles logs up to 40 inches in diameter including dense hardwood and standard firewood rounds
▪ 8-Second Cycle Time — Fast, consistent cycle keeps your firewood production moving without long waits between splits
▪ 40-Inch Maximum Log Diameter — Handles the large rounds most standard wood splitters cannot manage

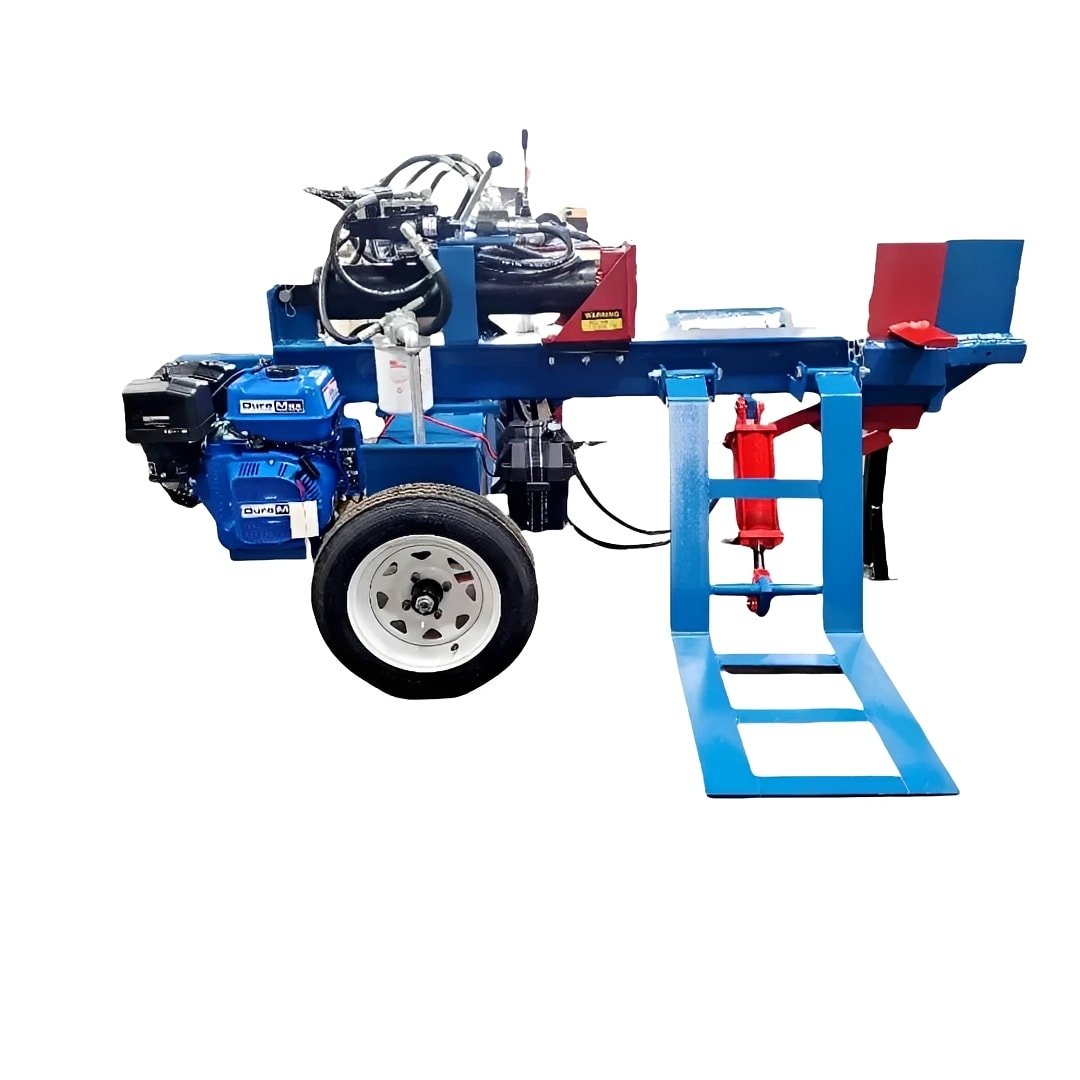

▪ Included Log Lifter — 500 LB Capacity — Load heavy logs onto the beam safely without manual lifting or back strain
▪ 32-Inch Beam Working Height — Ergonomic working height reduces operator fatigue during long splitting sessions
▪ Slip-On 4-Way Wedge Included — Split logs into 4 pieces per pass for faster, more efficient firewood production
▪ 22 GPM Two-Stage Hydraulic Pump — Powerful, efficient pump delivers fast, consistent hydraulic force all day long
▪ Auto-Return Valve — Automatically returns the ram for a faster, smoother cycle every time
▪ 15-Gallon Hydraulic Fluid Tank — Large capacity tank handles extended sessions without performance loss
▪ Road Towable at 65 MPH — 2-inch ball hitch and 12-inch tires make transport between job sites fast and easy

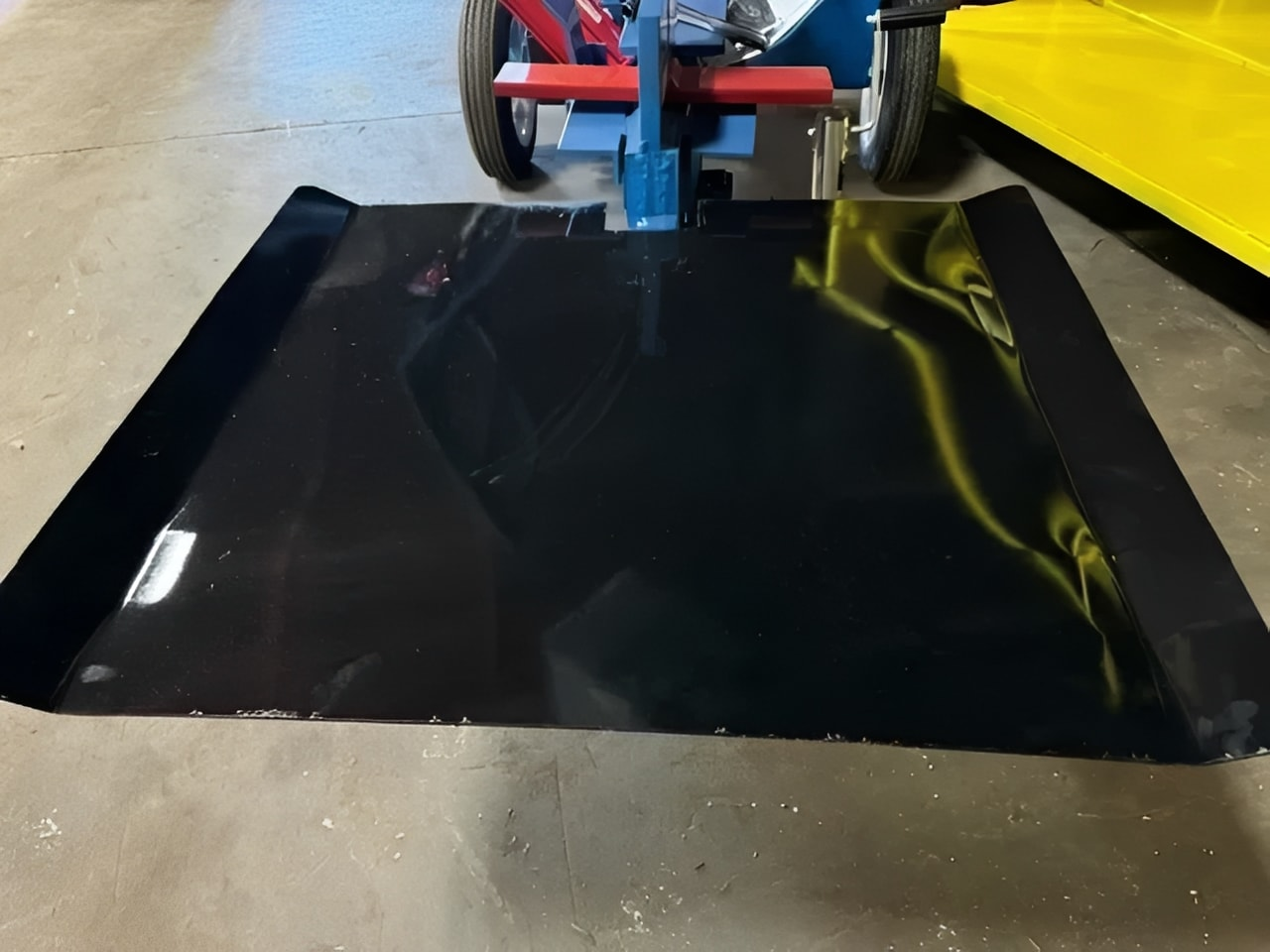

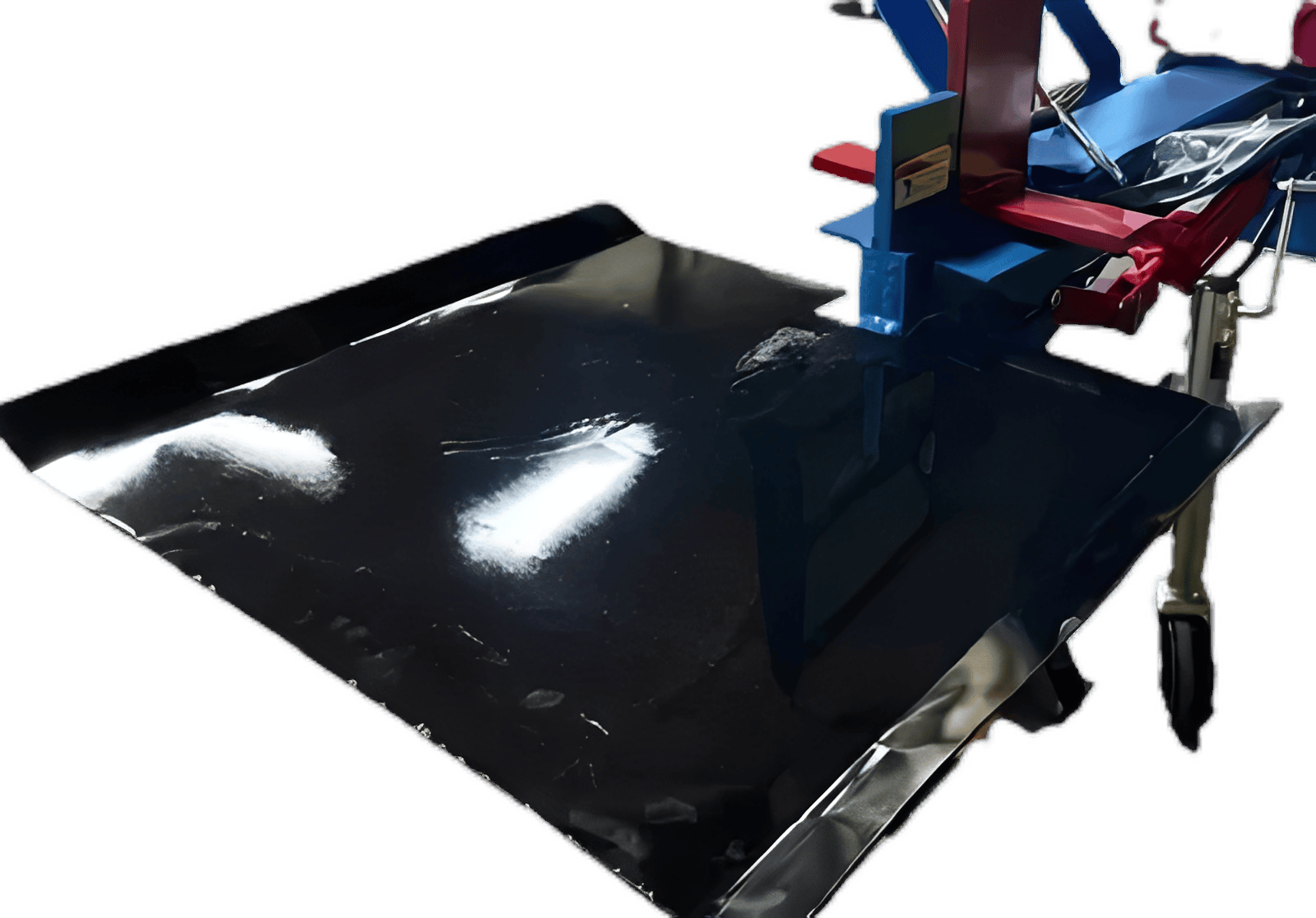

▪ Included Log Table — Organized workspace keeps your splitting operation clean and efficient
Technical Specifications
| Specification |
Detail |
| Model |
HDFC |
| Ram Force |
30 Ton |
| Stroke |
24 in. |
| Cycle Time |
8 Seconds |
| Max Log Length |
25 in. |
| Max Log Diameter |
40 in. |
| Wedge |
Single + Slip-On 4-Way |
| Wedge Type |
Hardened Steel |
| Wedge Height |
10 in. |
| Beam Type |
Tube Steel |
| Beam Working Height |
32 in. |
| Log Lift Capacity |
500 lbs. |
| Hydraulic Pump |
22 GPM Two-Stage |
| Hydraulic Valve |
Auto-Return |
| Hydraulic Tank |
15 Gallons |
| Hydraulic Fluid |
32 Weight / ATF |
| Cylinder |
Welded 4 x 24 in. |
| Hoses |
Wire Hydraulic |
| Trailer Hitch |
2 in. Ball Hitch |
| Max Tow Speed |
65 MPH |
| Tires |
12 in. |
| Product Weight |
1,000 lbs. |
| Dimensions (L x W x H) |
96 x 52 x 48 in. |
What's Included
▪ Ram Splitters HDFC Heavy Duty Fast Cycle Log Splitter (fully assembled) ▪ Slip-on 4-way wedge ▪ Log lifter ▪ Log table ▪ Operator Manual
Need a fast, reliable wood splitter for high volume firewood production without the higher price tag of a maximum force unit? The Ram Splitters HDFC delivers a quick 8-second cycle, 30 tons of force, and everything you need to process serious amounts of firewood — backed by a free 1-year parts and labour warranty. Add it to your equipment today.
